Automotive Carbide Drilling Solutions

Automotive Drilling Overview

Automotive components involve a wide range of workpiece materials, including cast iron, aluminum alloys, carbon steel, stainless steel, and lightweight materials. Typical applications cover engine parts, transmission housings, brake and chassis components, EV structures, fluid passages, and small precision parts.

Different hole depths, materials, tolerances, entry conditions, and chip-control requirements demand different drill geometries and coolant strategies. Landun provides standard, micro, deep-hole, internal-coolant, flat-bottom, step, and custom carbide drills for automotive production and special hole-making requirements.

Automotive Carbide Drilling Solutions

Transmission & Drivetrain

Transmission cases, gearbox housings, clutch components, bearing mounting holes, lubrication channels, blind holes, and stepped-hole applications.

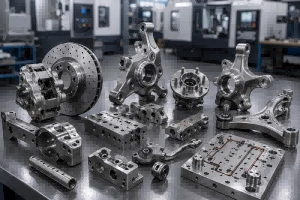

Brake, Steering & Chassis

Brake calipers, steering knuckles, wheel hubs, chassis brackets, hydraulic passages, mounting holes, and interrupted-hole applications.

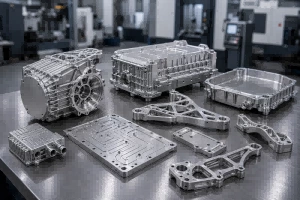

EV & Lightweight Components

Motor housings, battery trays, cooling plates, and lightweight aluminum structures requiring burr control, thin-wall drilling, and consistent multi-hole machining.

Fuel System & Fluid Passage Parts

Fuel rails, pump bodies, valve bodies, and fluid distribution blocks involving cross holes, intersecting passages, and deep-channel drilling.

Sensors, Connectors & Small Precision Parts

Sensor housings, connectors, bushings, sleeves, and compact components requiring micro-hole accuracy, low runout, and tight dimensional control.

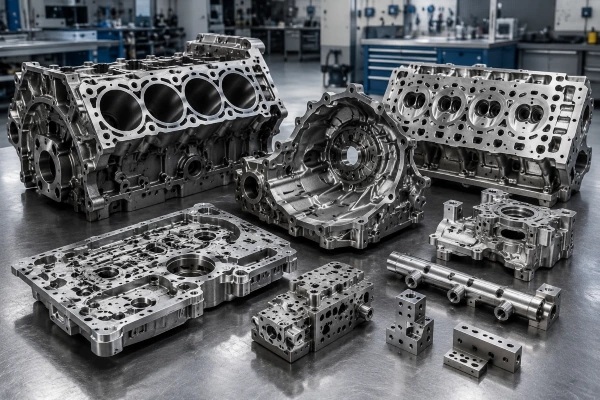

Engine & Powertrain

Engine blocks, cylinder heads, powertrain housings, oil galleries, coolant passages, and threaded-hole preparation in cast iron and aluminum parts.

Key Automotive Carbide Drilling Solutions

Hole Accuracy and Repeatability

Automotive batch production requires consistent hole diameter, position accuracy, and surface quality. Stable carbide substrates, controlled drill geometry, low runout, and repeatable edge preparation help maintain reliable performance across continuous machining.

Chip Evacuation in Different Materials

Cast iron, aluminum, steel, and stainless steel produce different chip forms. Material-specific flute geometry, suitable coatings, and internal or external coolant options help reduce chip congestion and improve drilling stability.

Burr Control in Aluminum Components

EV housings, battery trays, cylinder heads, and lightweight structures require clean hole entry and exit conditions. Sharp cutting edges, smooth flute surfaces, and controlled cutting parameters help reduce built-up edge and burr formation.

Deep Holes and Fluid Passages

Oil galleries, coolant holes, fuel passages, and fluid channels are sensitive to chip congestion, heat, and hole deviation. Internal-coolant deep-hole drills and controlled drilling procedures improve coolant delivery and chip evacuation.

Interrupted and Irregular Hole Conditions

Brake, steering, chassis, and cast components may involve interrupted cuts, rough surfaces, or irregular entry conditions. Rigid tool selection, stable workholding, suitable edge preparation, and controlled entry parameters help reduce impact and edge damage.

Custom Hole Structures

Stepped holes, flat-bottom holes, blind holes, combined diameters, and special profiles may require application-specific drill designs. Landun develops custom carbide drills according to component drawings, existing samples, and machining requirements.

Information Needed for Recommendation

Information	Why It Matters
Component drawing	Confirms hole structure, tolerance, step design, and special features
Workpiece material	Determines drill geometry, coating, and edge preparation
Hole diameter and depth	Determines drill length, rigidity, and coolant requirement
Through hole or blind hole	Affects drill point, chip evacuation, and bottom shape
Tolerance and surface requirement	Helps evaluate accuracy and finishing needs
Coolant method and pressure	Important for deep holes and chip evacuation
Machine type and holder condition	Affects runout, rigidity, and cutting stability

Common Questions

Frequently Asked Questions

Which drill series is suitable for automotive aluminum parts?

For aluminum automotive parts, sharp cutting edges, smooth flute design, and suitable coating or uncoated drill options help reduce built-up edge, improve chip evacuation, and control burrs.

Which drill is better for oil passages and coolant holes?

For oil passages, coolant holes, and deep fluid channels, internal coolant drills or deep hole carbide drills are usually recommended to improve chip evacuation and heat control.

Can Landun support non-standard automotive hole structures?

Yes. Landun can develop custom carbide drills for stepped holes, flat-bottom holes, cross holes, deep passages, and special hole profiles based on drawings or samples.

What information should I provide for drill recommendation?

Please provide the component drawing, workpiece material, hole diameter, hole depth, tolerance, coolant method, machine condition, and current drilling problem.

Can one drill be used for different automotive materials?

It depends on the material, hole depth, tolerance, production target, and chip condition. Cast iron, aluminum, steel, and stainless steel may require different drill geometry, coating, or edge preparation.
