Electronics & Precision Components Drilling Overview

Electronics and precision component manufacturing requires accurate drilling in aluminum alloys, stainless steel, copper alloys, brass, tool steel, and other engineering materials. Typical applications include housings, connectors, sensor bodies, optical components, cooling parts, sleeves, bushings, and miniature mechanisms. Small diameters, thin walls, dense hole patterns, tight tolerances, burr control, and delicate workpieces create demanding machining conditions. Landun supplies standard, micro, deep-hole, internal-coolant, flat-bottom, step, and custom carbide drills matched to drawings, materials, hole structures, and production requirements.

Electronics & Precision Components Drilling Solutions

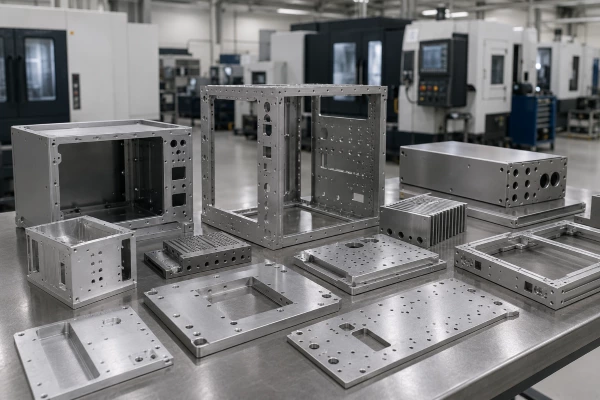

Electronic Housings & Structural Frames

Electronic enclosures, control housings, communication-equipment frames, power-electronics housings, mounting plates, shielding covers, threaded-hole preparation, and multi-hole patterns in aluminum and stainless steel.

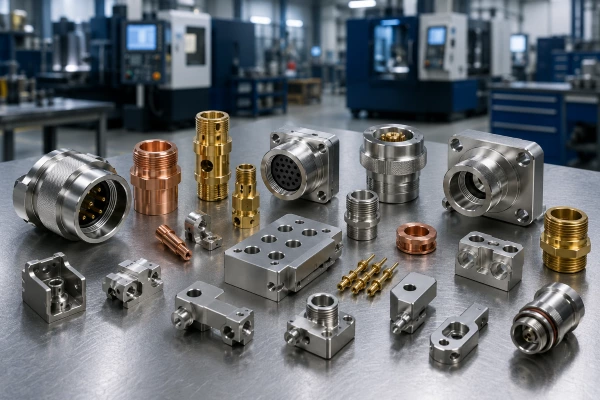

Connectors, Terminals & Interface Components

Connector shells, terminal housings, cable interfaces, adapter components, receptacles, locating holes, assembly holes, stepped holes, and small precision features in copper alloys, brass, aluminum, and stainless steel.

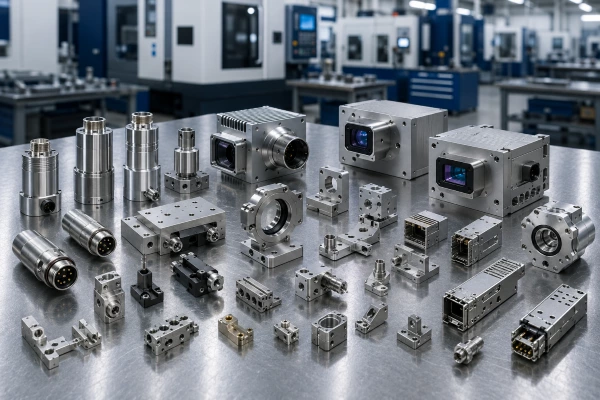

Sensors, Optical & Communication Components

Sensor housings, optical-module components, transceiver housings, lens mounts, positioning parts, alignment holes, micro holes, and compact precision features requiring low runout and dimensional consistency.

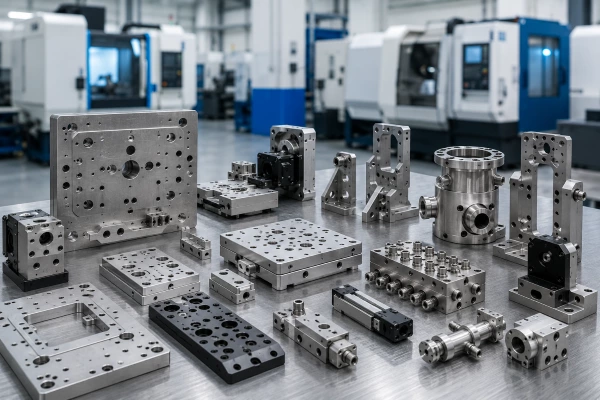

Semiconductor Equipment & Automation Parts

Fixture plates, positioning blocks, vacuum components, equipment brackets, robotic components, precision manifolds, mounting holes, dowel holes, and repeated hole patterns used in semiconductor and automation equipment.

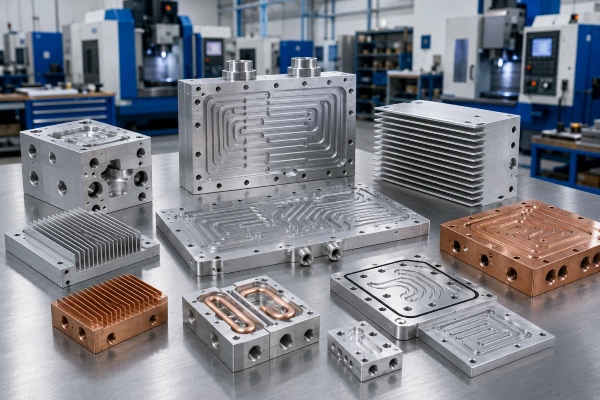

Thermal Management & Cooling Components

Cooling plates, heat sinks, liquid-cooling blocks, cold plates, power-electronics cooling parts, threaded ports, cross holes, internal passages, and sealing-related holes in aluminum and copper alloys.

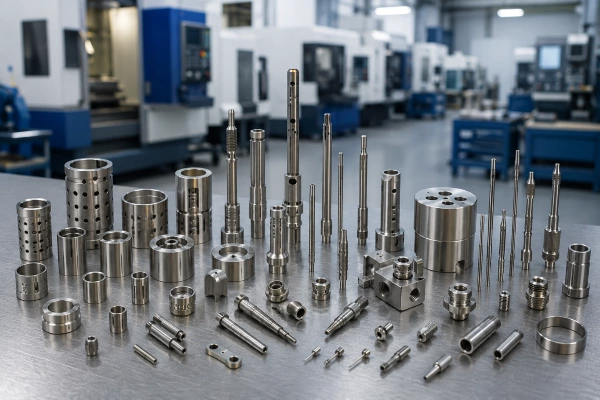

Sleeves, Bushings & Miniature Precision Parts

Precision sleeves, bushings, pins, nozzles, small shafts, instrument components, compact mechanisms, and thin-wall parts requiring small-hole accuracy, controlled breakthrough, and stable surface quality.

Key Electronics & Precision Components Drilling Solutions

Micro-Hole Accuracy and Low Runout

Sensors, connectors, optical components, and miniature mechanisms often contain small-diameter holes with limited tolerance allowance. Precision drill geometry, rigid toolholding, short tool overhang, stable workholding, and controlled spindle runout help maintain hole diameter, position, and tool life.

Burr Control in Thin-Wall Components

Electronic housings, connector shells, sleeves, and lightweight structures may contain thin walls or unsupported exit surfaces. Sharp cutting edges, suitable point geometry, stable component support, and controlled breakthrough feed help reduce exit burrs, deformation, and edge damage.

Chip Control in Aluminum and Copper Alloys

Aluminum, brass, and copper alloys may produce adhesive or continuous chips depending on the material grade and drilling conditions. Smooth flute surfaces, suitable edge geometry, stable coolant delivery, and appropriate cutting parameters help reduce built-up edge and chip congestion.

Multi-Hole Accuracy and Batch Consistency

Electronic housings, fixture plates, cooling components, and structural frames may contain many closely positioned holes. Consistent drill geometry, controlled edge preparation, low runout, and stable machining parameters help maintain repeatability across large hole quantities and production batches.

Small Deep Holes and Internal Passages

Cooling blocks, sensor bodies, fluid-control components, and compact manifolds may require small-diameter deep holes or intersecting passages. Internal-coolant drills, stable pilot holes, reliable chip evacuation, and controlled drilling procedures help reduce heat, blockage, and hole deviation.

Special and Combined Hole Structures

Stepped holes, flat-bottom holes, counterbores, combined diameters, threaded-hole preparation, cross holes, and special-length features may require application-specific drills developed according to component drawings and machining sequences.

Information Needed for Recommendation

Information	Why It Matters
Component drawing	Confirms hole structure, tolerance, step design, and special features
Workpiece material	Determines drill geometry, coating, and edge preparation
Hole diameter and depth	Determines drill length, rigidity, and coolant requirement
Through hole or blind hole	Affects drill point, chip evacuation, and bottom shape
Tolerance and surface requirement	Helps evaluate accuracy and finishing needs
Coolant method and pressure	Important for deep holes and chip evacuation
Machine type and holder condition	Affects runout, rigidity, and cutting stability

Common Questions

Frequently Asked Questions

Which carbide drill is suitable for aluminum electronic housings?

Sharp carbide drills with smooth flute surfaces and suitable coated or uncoated designs are generally recommended. The final selection depends on the aluminum grade, silicon content, hole depth, wall thickness, burr requirement, coolant method, and production quantity.

How can burrs be reduced on thin electronic housings?

Burrs can be reduced through sharp cutting edges, suitable drill-point geometry, stable support near the hole exit, controlled breakthrough feed, low runout, and an appropriate drilling sequence.

Which drill is suitable for cooling plates and liquid-cooling blocks?

Standard carbide drills can be used for short mounting and threaded holes. Internal-coolant or deep-hole carbide drills may be required for long cooling passages, cross holes, and internal fluid channels, depending on diameter and drilling depth.

Can these carbide drills be used for PCB drilling?

This page focuses on drilling metal electronic housings and precision mechanical components. PCB, ceramic substrate, glass-fiber laminate, and semiconductor-wafer drilling require different machines, tool structures, and application evaluation.

Can Landun produce drills for stepped and flat-bottom holes?

Yes. Landun can develop step drills, flat-bottom drills, special-length drills, combined-diameter drills, and other drawing-based carbide drills according to the component material, hole structure, tolerance, and machining conditions.
