Electric vehicle and lightweight automotive components contain mounting holes, locating holes, threaded-hole preparation, cooling passages, cross holes, sensor holes, sealing-related holes, stepped holes, blind holes, and repeated multi-hole patterns.
Most of these components are manufactured from cast, forged, extruded, or machined aluminum alloys. Their thin walls, large dimensions, internal cavities, sealing surfaces, and dense hole layouts increase the risk of built-up edge, chip adhesion, exit burrs, drill walking, local deformation, and inconsistent hole position.
Landun CNC Tool supports drill selection and custom carbide drill development based on the component drawing, aluminum grade, wall thickness, hole diameter and depth, entry surface, tolerance, coolant condition, burr requirement, and current machining problem.
Motor housings, inverter housings, battery trays, cooling plates, and lightweight structural components may develop material adhesion on the cutting edge, poor hole surfaces, chip smearing, or unstable tool life.
Soft aluminum alloys can adhere to the drill when the cutting edge is not sharp enough or when flute finish, coolant delivery, cutting parameters, or chip evacuation are unsuitable. Long chips may also wrap around the drill or remain inside cavities.
Sharp cutting edges, polished flutes, aluminum-specific drill geometry, and suitable surface treatment help reduce built-up edge and improve chip flow. Through-tool coolant can further control cutting heat and move chips away from the drill point.
Battery trays, cooling plates, battery-pack frames, lightweight brackets, and hollow aluminum structures may develop large exit burrs, hole-edge deformation, breakthrough tearing, or local vibration.
Thin sections provide limited support as the drill exits the material. Excessive feed, weak clamping, unsuitable point geometry, long tool overhang, or uneven wall thickness can increase breakthrough force and component deformation.
Sharp drill geometry, controlled feed near breakthrough, stable fixturing, low runout, and suitable cutting-edge preparation help reduce exit force and burr formation. Application-specific drill points can also be developed for thin-wall and hollow-section components.
Cooling plates, motor housings, inverter housings, battery thermal-management parts, and power-electronics components may contain long cooling passages, cross holes, intersecting channels, threaded ports, and blind holes.
Chips can become trapped when the drill enters an internal cavity or intersects another passage. Insufficient coolant pressure, unsuitable flute geometry, excessive drilling depth, or uncontrolled breakthrough can cause chip packing, internal burrs, poor passage cleanliness, or drill breakage.
Through-tool coolant, polished flutes, suitable chip-space design, and controlled breakthrough parameters help improve chip evacuation. Longer passages may require an accurate pilot hole, low runout, stable coolant delivery, and a controlled drilling procedure.

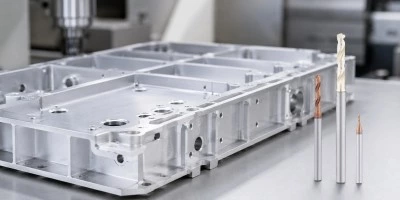

Battery trays, cooling plates, motor housings, battery-pack structures, and lightweight frames often contain large numbers of repeated mounting holes, locating holes, threaded-hole preparation, and bolt patterns.
Large component size, fixture movement, thermal variation, casting distortion, uneven entry surfaces, drill wear, and machine runout can cause hole-position or diameter variation across the complete component.
Stable drill-point geometry, consistent edge preparation, low-runout toolholding, and application-matched coatings support repeatable multi-hole machining. A short spotting operation may improve entry accuracy on cast or extruded surfaces.
Blind holes, stepped holes, threaded-port preparation, counterbore-related holes, sealing holes, sensor holes, and combined-diameter features may show inconsistent depth, shoulder position, bottom shape, concentricity, or surface quality.
Multiple drilling operations, repeated tool changes, drill-point allowance, unstable chip evacuation, and accumulated positioning errors can reduce dimensional consistency and increase cycle time.
Flat-bottom, step, chamfer, and custom carbide drills can combine multiple features into fewer machining operations. This helps improve depth control, shoulder-position consistency, concentricity, and production efficiency.

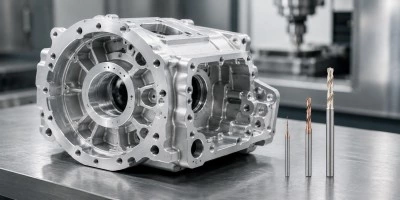

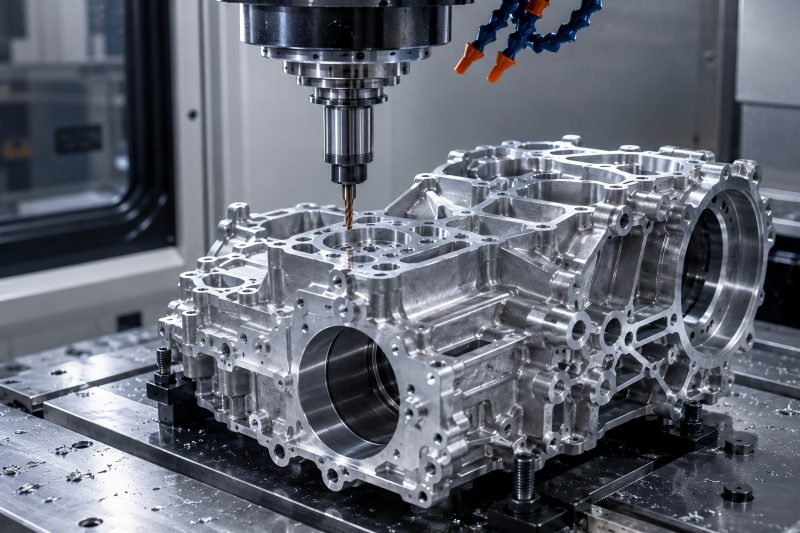

Typical drilling applications include mounting holes, locating holes, bearing-related preparation holes, cooling passages, threaded-hole preparation, sensor holes, cable-interface holes, blind holes, and stepped features in aluminum motor and e-drive housings.
Common applications include repeated mounting holes, locating holes, threaded-hole preparation, drainage holes, cable-routing holes, fastening holes, and small precision features in extruded, cast, or fabricated aluminum structures.

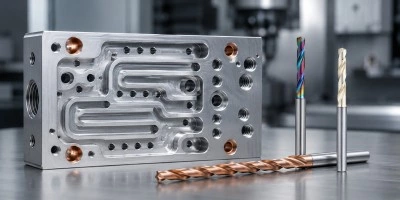

Typical features include cooling passages, cross holes, threaded ports, manifold holes, sealing-related holes, plug-hole preparation, blind holes, and repeated connection holes in aluminum or copper-alloy cooling components.

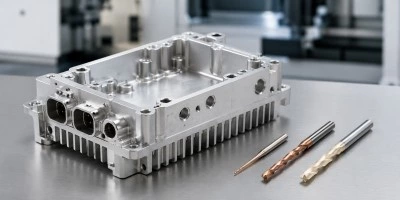

Common drilling applications include mounting holes, locating holes, connector holes, sensor holes, cooling-related passages, threaded-hole preparation, blind holes, and small precision features in aluminum inverter and power-control housings.
For mounting holes, locating holes, threaded-hole preparation, repeated bolt patterns, and general production drilling in motor housings, battery trays, inverter housings, cooling plates, and lightweight structural parts.
For cooling passages, blind holes, deeper housing holes, intersecting channels, and applications where chip evacuation and cutting-heat control are critical.
For sensor holes, connector-related holes, small cooling features, vent holes, compact ports, and other small-diameter precision holes in EV components.
For flat-bottom holes, stepped holes, threaded-port preparation, combined drilling and chamfering, thin-wall breakthrough, angled entry surfaces, and drawing-based non-standard hole structures.
| INFORMATION | WHY IT MATTERS |
|---|---|
| Component drawing | Confirms hole positions, wall thickness, passage intersections, step features, entry surfaces, tolerances, and sealing requirements. |
| Aluminum grade or workpiece material | Helps determine drill geometry, carbide grade, flute finish, edge preparation, and coating direction. |
| Hole diameter, depth, and type | Defines drill size, working length, depth-to-diameter ratio, and blind- or through-hole requirements. |
| Wall thickness and component structure | Helps evaluate thin-wall deformation, hollow-section breakthrough, local rigidity, and clamping requirements. |
| Entry, exit, and intersection conditions | Helps assess drill walking, interrupted cutting, exit burrs, cross-hole breakthrough, and internal burr risk. |
| Tolerance, burr, and cleanliness requirements | Helps determine dimensional accuracy, hole-wall quality, sealing-related requirements, and residual-chip control. |
| Machine, holder, fixture, and coolant conditions | Helps evaluate runout, component rigidity, coolant method, coolant pressure, and chip-evacuation stability. |
| Current problem and production target | Clarifies built-up edge, burrs, deformation, chip packing, drill breakage, hole variation, tool life, or cycle-time targets. |
Review the component drawing, workpiece material, hole structure, machine conditions, and current drilling problem.
Select a suitable standard drill series or develop a custom drill based on hole depth, tolerance, entry conditions, and machining requirements.
Produce the drill with controlled geometry, edge preparation, coating selection, and multi-stage inspection to support consistent quality.
Support sample testing, specification confirmation, and stable repeat production after the drill solution is approved.
