Automotive sensors, connectors, sleeves, bushings, and compact precision components contain micro holes, locating holes, pin holes, cable-interface holes, fluid passages, threaded-hole preparation, blind holes, stepped holes, and sealing-related features.
These parts are commonly manufactured from aluminum alloys, brass, copper alloys, stainless steel, alloy steel, and other precision-machining materials. Their small dimensions, thin walls, limited clamping areas, close hole spacing, and tight tolerances increase the risk of drill deflection, tool breakage, exit burrs, component deformation, and inconsistent hole position.
Landun CNC Tool supports drill selection and custom carbide drill development based on the component drawing, material, hole diameter and depth, wall thickness, tolerance, entry condition, machine runout, coolant method, and current machining problem.
Sensor housings, connector components, compact valve parts, and small precision components may experience micro-drill breakage, drill deflection, unstable hole diameter, or poor hole straightness.
Small-diameter carbide drills are highly sensitive to spindle runout, toolholder accuracy, excessive overhang, unstable entry, machine vibration, and chip congestion. Even a small increase in radial runout can create uneven cutting loads and accelerate edge damage.
Low-runout toolholding, short tool overhang, stable drill-point geometry, controlled cutting parameters, and suitable flute design help improve micro-hole stability. A spotting operation may also be used when the entry surface does not provide reliable centering.
Thin sensor housings, connector shells, sleeves, bushings, and compact aluminum or brass parts may develop large exit burrs, edge tearing, local deformation, or unstable breakthrough.
Thin walls provide limited support as the drill exits the workpiece. Excessive feed, weak clamping, unsuitable drill-point geometry, long tool overhang, or uneven wall thickness can increase breakthrough force and component distortion.
Sharp cutting edges, controlled feed near breakthrough, low runout, stable workholding, and application-specific drill geometry help reduce exit burrs and deformation. Custom drill points can be developed for thin-wall, hollow, or small-diameter components.
Small blind holes, compact fluid passages, sensor cavities, valve-related holes, and threaded-hole preparation may experience chip packing, rising cutting load, poor bottom quality, or premature drill breakage.
Small flute space limits chip capacity. Deep blind-hole machining, insufficient coolant delivery, unsuitable pecking cycles, material adhesion, or excessive feed can prevent chips from leaving the hole efficiently.
Suitable flute geometry, controlled drilling depth, stable coolant or air delivery, and optimized drilling cycles help improve chip evacuation. Internal-coolant or drawing-based drill designs may be considered for deeper small-diameter holes when machine conditions allow.
Sensor housings, connector blocks, bushings, sleeves, and small assemblies often contain several closely spaced holes that must maintain consistent diameter, position, spacing, and alignment.
Small part movement, fixture variation, tool runout, uneven entry surfaces, accumulated tool wear, and repeated tool changes can affect the positional relationship between features.
Stable drill-point geometry, precise toolholding, rigid workholding, consistent edge preparation, and controlled tool wear help improve repeatability. Step and combination drills can reduce tool changes and maintain concentricity between related hole features.
Aluminum and copper-alloy connector components may create built-up edge and chip adhesion, while stainless steel and alloy-steel sensor parts may cause rapid wear, work hardening, or cutting-edge chipping.
Different materials require different cutting-edge sharpness, flute finish, coating, edge preparation, and cutting parameters. Using one general drill design across several materials can reduce hole quality and tool-life consistency.
Material-specific geometry, polished flutes for non-ferrous alloys, controlled edge preparation, and application-matched coatings help improve chip flow, reduce adhesion, and increase wear resistance.

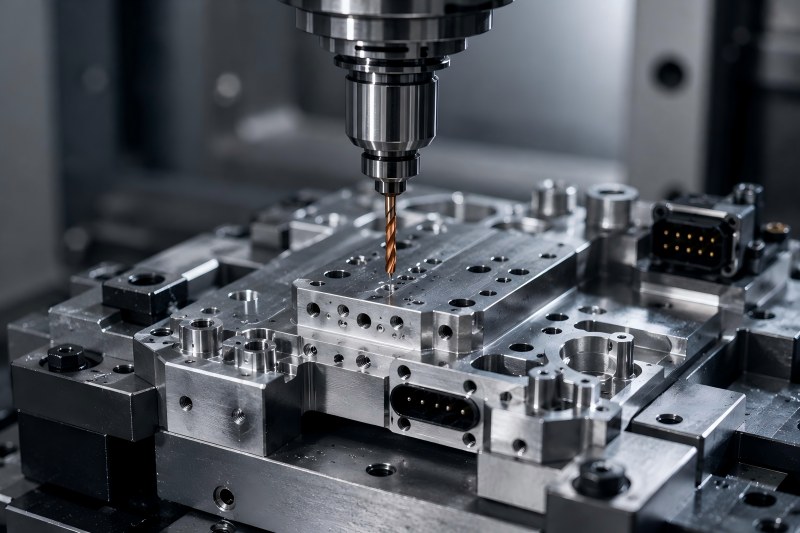

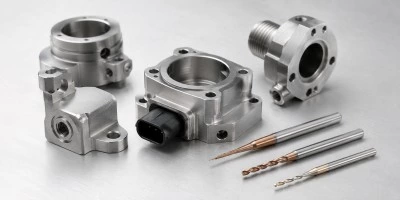

Typical drilling applications include mounting holes, locating holes, cable-entry holes, pressure ports, small fluid passages, threaded-hole preparation, blind holes, and sensor-element positioning features.

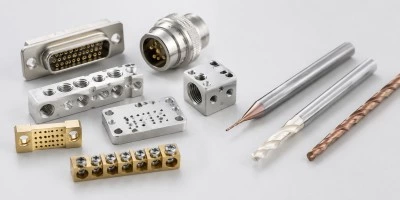

Common features include terminal holes, pin holes, mounting holes, cable-interface holes, locating features, threaded-hole preparation, and repeated small-diameter hole patterns in aluminum, brass, or copper-alloy parts.

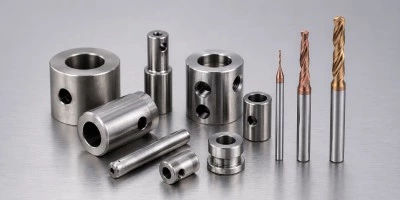

Typical drilling applications include axial holes, radial holes, lubrication holes, cross holes, pin holes, blind holes, and stepped internal features in steel, stainless steel, brass, or other precision materials.

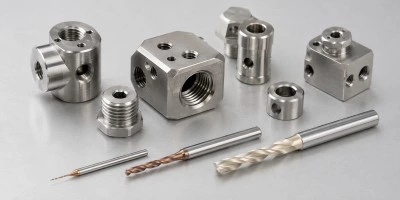

Common applications include small fluid passages, valve-related holes, threaded ports, locating holes, blind holes, stepped holes, plug holes, and sealing-related features.
For mounting holes, locating holes, pin holes, threaded-hole preparation, and general drilling in sensor housings, connectors, bushings, sleeves, and compact automotive components.
For sensor holes, terminal holes, pin holes, small fluid passages, lubrication holes, and other small-diameter precision features.
For long axial holes, small fluid passages, lubrication channels, air passages, and high depth-to-diameter holes in sleeves, bushings, sensor components, and compact valve parts.
For combined diameters, stepped holes, flat-bottom holes, drilling and chamfering, angled entry, cross holes, thin-wall parts, and drawing-based non-standard structures.
| INFORMATION | WHY IT MATTERS |
|---|---|
| Component drawing | Confirms hole positions, spacing, wall thickness, step features, cross holes, tolerances, and special requirements. |
| Workpiece material and hardness | Helps determine cutting-edge sharpness, flute finish, carbide grade, edge preparation, and coating direction. |
| Hole diameter, depth, and type | Defines drill size, working length, depth-to-diameter ratio, and blind- or through-hole requirements. |
| Part size and clamping condition | Helps evaluate workholding stability, deformation risk, tool access, and vibration during drilling. |
| Entry, exit, and cross-hole conditions | Helps assess drill walking, curved-surface entry, breakthrough impact, and internal burr risk. |
| Tolerance, burr, and surface requirements | Helps determine hole accuracy, edge quality, concentricity, bottom shape, and sealing-related requirements. |
| Machine, holder, and runout conditions | Helps evaluate whether the setup can support stable micro-hole drilling and the required tool diameter. |
| Current problem and production target | Clarifies breakage, drill deflection, burrs, chip packing, tool wear, hole variation, tool life, or cycle-time targets. |
Review the component drawing, workpiece material, hole structure, machine conditions, and current drilling problem.
Select a suitable standard drill series or develop a custom drill based on hole depth, tolerance, entry conditions, and machining requirements.
Produce the drill with controlled geometry, edge preparation, coating selection, and multi-stage inspection to support consistent quality.
Support sample testing, specification confirmation, and stable repeat production after the drill solution is approved.
Walter 5-axis grinding supports stable drill-point geometry, flute consistency, diameter accuracy, and shank concentricity.
Controlled edge preparation helps improve cutting-edge consistency, coating adhesion, wear resistance, and tool-life stability.
Coating selection is matched to the workpiece material and drilling conditions to improve wear resistance, heat control, and cutting stability.
HELICHECK PLUS and 150× / 300× visual inspection help verify dimensions, cutting edges, coating appearance, and overall tool condition.
