Brake, steering, and chassis components contain mounting holes, locating holes, hydraulic passages, cross holes, threaded-hole preparation, sensor holes, pin holes, blind holes, stepped holes, and small precision features.
Different materials and component structures create different machining problems. Aluminum brake components require effective burr and chip-adhesion control. Cast iron and ductile iron parts can accelerate cutting-edge wear. Forged steel steering and suspension components create higher cutting loads, while curved surfaces, casting skin, interrupted holes, thin sections, and angled entry conditions increase the risk of drill walking and unstable breakthrough.
Landun CNC Tool supports drill selection and custom carbide drill development based on the component drawing, workpiece material, hole diameter and depth, tolerance, entry surface, coolant condition, burr requirement, and current machining problem.

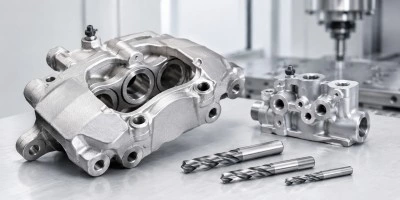

Brake calipers, hydraulic steering housings, valve components, and fluid-control parts may develop burrs where drilled passages intersect. Residual chips can also remain inside internal channels and affect downstream cleaning, assembly, or fluid-flow requirements.
When a drill breaks into an existing passage, cutting forces suddenly become unbalanced. Unsuitable drill geometry, excessive feed at breakthrough, insufficient coolant flow, or poor chip evacuation can increase internal burrs and leave chips trapped inside the component.
Sharp cutting edges, controlled breakthrough parameters, suitable point geometry, and through-tool coolant help reduce burr formation and improve chip removal. For complex passage structures, a drawing-based drill design can be developed according to the entry direction, intersection angle, and passage diameter.

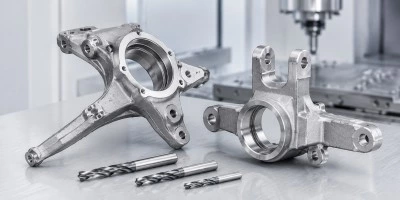

Steering knuckles, wheel carriers, wheel hubs, brake brackets, control arms, and suspension components may cause rapid flank wear, edge chipping, unstable hole diameter, or inconsistent tool life during batch production.
Casting skin, abrasive cast-iron chips, forging scale, hardness variation, interrupted entry, and high cutting loads can accelerate coating wear and cutting-edge damage. Unstable workholding can further increase vibration and impact loading.
Wear-resistant coatings, controlled edge preparation, stable drill-point geometry, and suitable carbide grades help improve cutting-edge strength and wear resistance. Drill geometry should be matched to the component material, hardness, drilling depth, machine rigidity, and production conditions.

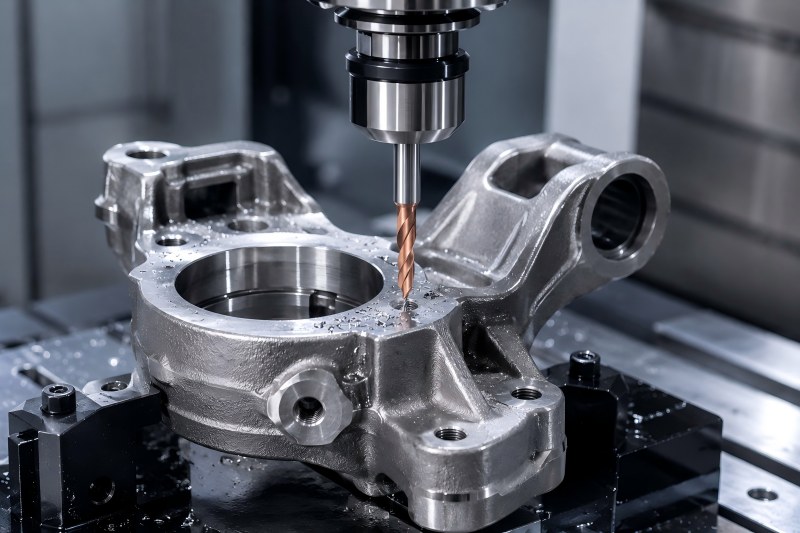

Drills may move away from the intended position when entering curved forgings, uneven cast surfaces, angled bosses, draft surfaces, ribs, or components with limited flat entry areas.
Uneven contact at drill entry creates unbalanced cutting forces. Excessive tool overhang, high runout, insufficient fixture rigidity, casting variation, or unsuitable drill-point geometry can further reduce entry stability.
A short and rigid spotting operation, low runout, stable workholding, and suitable drill-point geometry help control the initial entry position. Flat-bottom or drawing-based custom drills may be more suitable for angled, curved, or irregular entry surfaces.

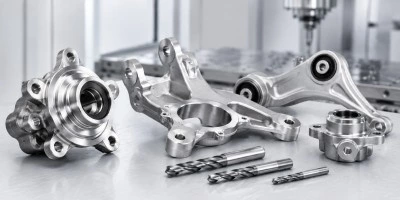

Mounting holes, pin holes, sensor holes, and passages may break through thin walls, existing bores, cast cavities, ribs, or intersecting features. This can cause sudden load changes, exit burrs, cutting-edge chipping, or reduced hole quality.
As the drill exits the material or enters an internal cavity, cutting support decreases rapidly. High feed, weak component sections, unsuitable edge geometry, long tool overhang, or poor clamping can increase impact and vibration.
Controlled feed near breakthrough, rigid toolholding, suitable cutting-edge preparation, and stable drill geometry help reduce impact loading. Application-specific drill points can also be developed for interrupted cutting and thin-wall exit conditions.

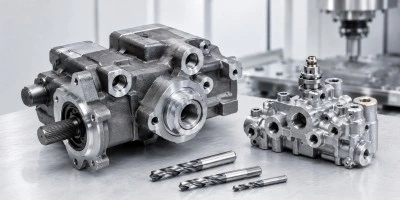

Brake calipers, steering knuckles, wheel hubs, chassis brackets, and suspension components often contain repeated mounting holes, bolt-circle patterns, locating holes, sensor holes, and threaded-hole preparation. Inconsistent entry or tool wear can affect hole position and diameter across the component.
Casting variation, fixture movement, tool runout, uneven entry surfaces, accumulated tool wear, and repeated drilling cycles can reduce dimensional consistency, especially in high-volume automotive production.
Stable drill-point geometry, low-runout toolholding, application-matched coatings, and consistent edge preparation support repeatable drilling. Step or combination drills can reduce tool changes and help maintain concentricity between related hole features.
Typical drilling applications include mounting holes, guide-pin holes, bleeder-hole preparation, brake-fluid passages, cross holes, threaded-port preparation, sensor-related holes, blind holes, and stepped features in aluminum or cast iron components.
Common drilling applications include mounting holes, locating holes, brake-caliper mounting holes, sensor holes, threaded-hole preparation, suspension connection holes, and preparation holes for bearing-related features.
Common applications include bolt-circle holes, mounting holes, locating holes, pin holes, threaded-hole preparation, bracket holes, sensor holes, and repeated drilling patterns in wheel hubs, control arms, subframe parts, suspension brackets, and chassis connections.
Typical features include mounting holes, hydraulic passages, pressure and return channels, cross holes, threaded-port preparation, valve-related holes, blind holes, and small precision features in aluminum, cast iron, or steel housings.
For mounting holes, locating holes, bolt holes, pin holes, threaded-hole preparation, and general production drilling in brake, steering, suspension, and chassis components.
For hydraulic passages, blind holes, cross holes, deeper mounting holes, and applications where chip evacuation, heat control, and internal passage cleanliness are important.
For sensor holes, valve-related holes, lubrication features, small hydraulic passages, compact brake components, and other small-diameter precision features.
For stepped mounting holes, flat-bottom holes, angled entry surfaces, combined drilling and chamfering, special diameters, limited-clearance features, and drawing-based non-standard hole structures.
| INFORMATION | WHY IT MATTERS |
|---|---|
| Component drawing | Confirms hole geometry, step features, tolerances, entry conditions, and special requirements. |
| Workpiece material and hardness | Helps determine drill geometry, edge preparation, carbide grade, and coating direction. |
| Hole diameter, depth, and type | Defines drill size, working length, depth-to-diameter ratio, and blind- or through-hole requirements. |
| Entry, exit, and intersection conditions | Helps evaluate curved entry, casting skin, interrupted cutting, internal breakthrough, and burr risk. |
| Tolerance, burr, and cleanliness requirements | Helps assess dimensional accuracy, exit quality, internal burr control, and residual-chip requirements. |
| Machine, holder, fixture, and coolant conditions | Helps evaluate runout, component rigidity, coolant method, coolant pressure, and chip-evacuation stability. |
| Current problem and production target | Clarifies tool wear, burrs, chip packing, drill walking, breakage, hole variation, tool life, or cycle-time targets. |
Review the component drawing, workpiece material, hole structure, machine conditions, and current drilling problem.
Select a suitable standard drill series or develop a custom drill based on hole depth, tolerance, entry conditions, and machining requirements.
Produce the drill with controlled geometry, edge preparation, coating selection, and multi-stage inspection to support consistent quality.
Support sample testing, specification confirmation, and stable repeat production after the drill solution is approved.
Walter 5-axis grinding supports stable drill-point geometry, flute consistency, diameter accuracy, and shank concentricity.
Controlled edge preparation helps improve cutting-edge consistency, coating adhesion, wear resistance, and tool-life stability.
Coating selection is matched to the workpiece material and drilling conditions to improve wear resistance, heat control, and cutting stability.
HELICHECK PLUS and 150× / 300× visual inspection help verify dimensions, cutting edges, coating appearance, and overall tool condition.
