Engine and powertrain components require reliable drilling across cast iron and aluminum parts, including mounting holes, oil galleries, coolant passages, cross holes, blind holes, stepped holes, and threaded-hole preparation. Each feature creates different demands for tool wear, chip evacuation, burr control, hole position, and deep-hole straightness.
Landun provides standard, internal-coolant, deep-hole, and custom carbide drill solutions based on the component drawing, workpiece material, hole diameter and depth, tolerance, entry condition, coolant supply, and production target. Drill geometry, coating, edge preparation, and coolant configuration can be matched to the actual machining application.

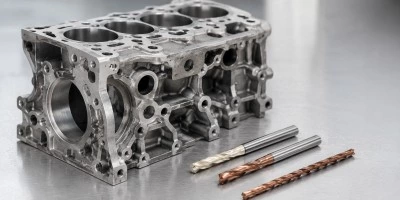

When drilling engine blocks, crankcases and cast iron housings, cutting edges may wear or chip quickly, causing shorter tool life and unstable hole size during batch production.
Casting skin, abrasive powder chips, hardness variation and unsuitable edge preparation can increase cutting load and accelerate coating or cutting-edge damage.
Landun recommends carbide drills with wear-resistant coatings, controlled edge preparation and stable drill-point geometry. Internal coolant can also improve heat control and chip removal in deeper holes.
Aluminum cylinder heads and powertrain housings may develop exit burrs, material adhesion and unstable hole surfaces, especially around thin walls, intersecting holes and sealing-related features.
Soft aluminum alloys can adhere to the cutting edge when flute polishing, drill geometry, coolant delivery or chip evacuation is unsuitable.
Sharp cutting edges, polished flutes and aluminum-specific drill geometry help reduce built-up edge and improve chip evacuation. Controlled breakthrough can further reduce exit burrs.
Oil galleries, coolant channels and long blind holes may experience chip congestion, rising cutting load, poor internal surface quality or gradual hole deviation.
Long drilling depth, insufficient coolant pressure, unstable pilot holes, excessive runout and poor chip evacuation can reduce deep-hole drilling stability.
Through-tool coolant, suitable flute geometry and a controlled drilling procedure help evacuate chips and reduce heat. Longer holes may also require an accurate pilot hole and stable machine conditions.
The drill may move away from the intended position when entering casting skin, curved surfaces, angled faces or uneven component features.
An unstable entry surface, excessive runout, insufficient machine rigidity or unsuitable drill-point geometry can cause poor initial centering.
A stable spotting operation, rigid setup and suitable drill-point design help control entry position. Application-specific drills may be required for angled or interrupted surfaces.
Blind holes, stepped holes and combined hole structures may show inconsistent depth, shoulder position, bottom shape or dimensional accuracy.
Multiple drilling operations, tool changes, drill-point allowance and unstable chip evacuation can create accumulated dimensional errors.
Flat-bottom, step and drawing-based custom carbide drills can combine features into fewer operations, improving depth control, dimensional consistency and production efficiency.
Common drilling applications include mounting holes, locating holes, main-bearing cap bolt holes, threaded-hole preparation, oil-feed holes, oil galleries, and coolant passages in cast iron or aluminum components.

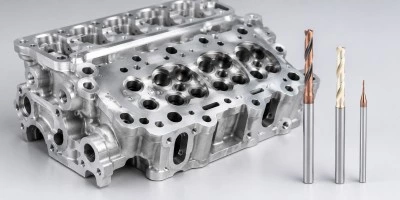

Typical features include bolt holes, coolant passages, oil holes, spark-plug preparation holes, sensor holes, valve-area holes, and other precision features in aluminum or cast iron cylinder heads.

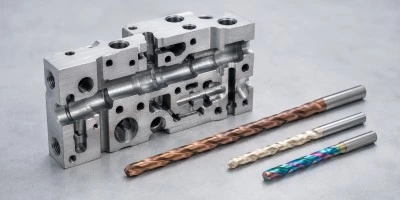

Typical applications include long oil galleries, coolant channels, deep blind holes, cross holes, intersecting passages, and internal fluid passages requiring stable deep-hole drilling.

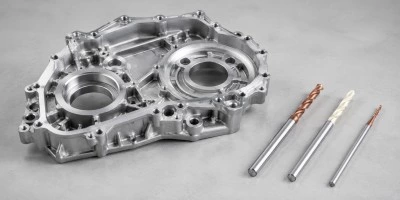

Common drilling applications include mounting holes, locating holes, bearing-related holes, lubrication passages, blind holes, threaded-hole preparation, sealing-related holes, and stepped features in aluminum or cast iron housings.
For mounting holes, locating holes, bolt holes, threaded-hole preparation, and general production drilling in engine blocks, cylinder heads, crankcases, and powertrain housings.
For small oil-feed holes, sensor-related holes, valve-area features, and other small-diameter precision holes requiring low runout and tight dimensional control.
For long oil galleries, coolant passages, deep blind holes, cross holes, and intersecting fluid channels requiring reliable chip evacuation and hole straightness.
For stepped holes, flat-bottom holes, combined features, special diameters, angled-entry conditions, and drawing-based engine or powertrain drilling requirements.
| INFORMATION | WHY IT MATTERS |
|---|---|
| Component drawing | Confirms hole geometry, step features, tolerances, entry conditions, and special requirements. |
| Workpiece material and hardness | Helps determine drill geometry, edge preparation, carbide grade, and coating direction. |
| Hole diameter, depth, and type | Defines drill size, working length, depth-to-diameter ratio, and blind- or through-hole requirements. |
| Tolerance and surface finish | Helps evaluate dimensional accuracy, hole quality, and finishing requirements. |
| Machine, holder, and coolant conditions | Helps assess runout, rigidity, coolant pressure, and chip-evacuation stability. |
| Current problem and production target | Clarifies tool wear, burrs, chip packing, deviation, breakage, tool-life, or efficiency targets. |
Review the component drawing, workpiece material, hole structure, machine conditions, and current drilling problem.
Select a suitable standard drill series or develop a custom drill based on hole depth, tolerance, entry conditions, and machining requirements.
Produce the drill with controlled geometry, edge preparation, coating selection, and multi-stage inspection to support consistent quality.
Support sample testing, specification confirmation, and stable repeat production after the drill solution is approved.
Walter 5-axis grinding supports stable drill-point geometry, flute consistency, diameter accuracy, and shank concentricity.
Controlled edge preparation helps improve cutting-edge consistency, coating adhesion, wear resistance, and tool-life stability.
Coating selection is matched to the workpiece material and drilling conditions to improve wear resistance, heat control, and cutting stability.
HELICHECK PLUS and 150× / 300× visual inspection help verify dimensions, cutting edges, coating appearance, and overall tool condition.
