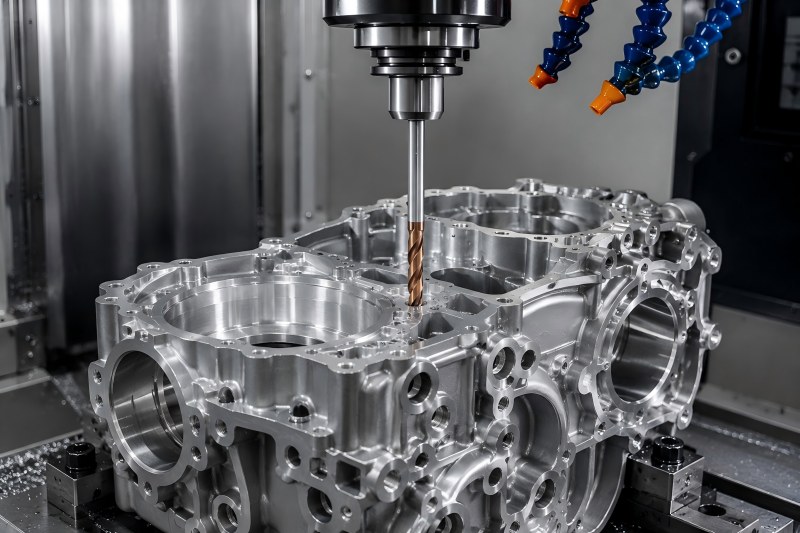

Transmission and drivetrain components contain mounting holes, locating holes, bearing-related holes, lubrication passages, cross holes, blind holes, stepped holes, threaded-hole preparation, and small precision features.
Different materials and component structures create different machining problems. Aluminum transmission cases require burr and chip-adhesion control. Cast iron housings may accelerate cutting-edge wear. Alloy-steel shafts and drivetrain parts can create higher cutting loads. Lubrication channels, intersecting holes, curved entry surfaces, and thin housing sections also require stable drill entry, reliable chip evacuation, and controlled breakthrough.
Landun CNC Tool supports drill selection and custom carbide drill development based on the component drawing, material, hole depth, tolerance, entry condition, coolant method, and current machining problem.
Transmission cases, gearbox housings, valve bodies, and mechatronic housings may develop exit burrs, material adhesion, rough hole surfaces, or chips remaining inside internal passages.
Soft aluminum alloys can adhere to the cutting edge when drill geometry, flute finish, coolant delivery, or chip evacuation is unsuitable. Thin walls and intersecting passages can further increase breakthrough instability and burr formation.
Sharp cutting edges, polished flutes, and aluminum-specific drill geometry help reduce built-up edge and improve chip evacuation. Through-tool coolant and controlled breakthrough parameters can further improve hole cleanliness and reduce exit burrs.
Cast iron gearbox housings, differential components, gear hubs, shafts, and other drivetrain parts may cause rapid cutting-edge wear, edge chipping, unstable hole diameter, or reduced tool-life consistency during batch production.
Casting skin, abrasive cast-iron chips, material hardness variation, high cutting loads, unstable workholding, or unsuitable edge preparation can accelerate coating wear and cutting-edge damage.
Wear-resistant coatings, controlled edge preparation, and stable drill-point geometry help improve cutting-edge strength and tool-life consistency. Drill geometry and carbide grade should be selected according to the material, hardness, hole depth, and production conditions.
Lubrication channels, long blind holes, oil-feed holes, and internal passages may experience chip congestion, increasing cutting load, poor internal surface quality, drill breakage, or gradual hole deviation.
Long drilling depth, insufficient coolant pressure, excessive runout, unsuitable flute geometry, or chips entering intersecting passages can interrupt normal chip evacuation.
Through-tool coolant, suitable flute geometry, stable coolant pressure, and a controlled drilling procedure help remove chips and reduce cutting heat. Longer holes may also require an accurate pilot hole, low runout, and stable machine rigidity.
Drills may move away from the intended position when entering curved shaft surfaces, cast surfaces, angled faces, ribs, existing bores, or intersecting holes.
Uneven cutting forces at entry, excessive tool overhang, insufficient workholding rigidity, high runout, or unsuitable drill-point geometry can prevent stable initial centering.
A short and rigid spotting operation, stable workholding, low runout, and suitable drill-point geometry help control entry position. Flat-bottom or drawing-based custom drills may be required for angled, curved, or interrupted entry conditions.
Blind holes, stepped holes, bearing-related preparation holes, plug holes, and combined-diameter features may show inconsistent depth, shoulder position, bottom shape, concentricity, or dimensional accuracy.
Multiple drilling operations, repeated tool changes, drill-point allowance, unstable chip evacuation, and accumulated positioning errors can reduce feature consistency and increase machining time.
Flat-bottom, step, chamfer, and drawing-based custom carbide drills can combine multiple features into fewer operations. This helps improve depth control, step-position consistency, concentricity, and production efficiency.
Common drilling applications include mounting holes, locating holes, housing bolt holes, threaded-hole preparation, bearing-support preparation holes, lubrication holes, blind holes, and sealing-related features in aluminum or cast iron housings.

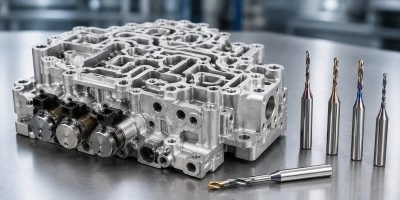

Typical features include hydraulic-control passages, lubrication holes, cross holes, intersecting passages, plug holes, solenoid mounting holes, sensor holes, and small precision features in aluminum transmission-control components.
Typical drilling applications include bolt-circle holes, mounting holes, locating holes, bearing-related holes, lubrication channels, threaded-hole preparation, cross holes, blind holes, and stepped features in aluminum, cast iron, or steel components.

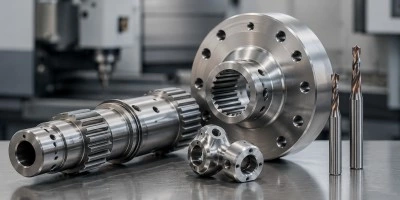

Common hole features include radial lubrication holes, cross holes, retaining-pin holes, threaded-hole preparation, angled holes, small precision holes, and other features in transmission shafts, gear hubs, couplings, and related drivetrain parts.

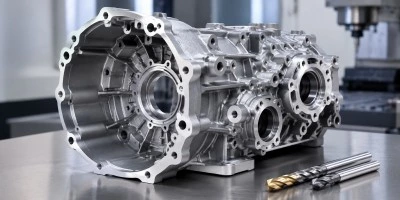

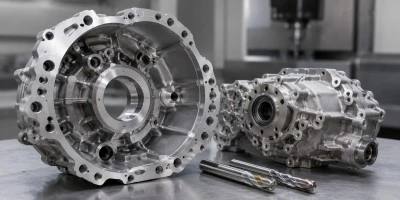

For mounting holes, locating holes, bolt holes, threaded-hole preparation, blind holes, and general production drilling in transmission cases, gearbox housings, differential housings, and drivetrain components.
For lubrication passages, blind holes, deeper housing holes, valve-body channels, and applications where chip evacuation and cutting-heat control are critical.
For long lubrication passages, extended oil channels, high depth-to-diameter holes, and long-reach drilling in transmission and drivetrain components.
For blind holes, stepped holes, plug holes, combined diameters, angled entry surfaces, bearing-related preparation features, and drawing-based non-standard hole structures.
| INFORMATION | WHY IT MATTERS |
|---|---|
| Component drawing | Confirms hole geometry, step features, intersecting passages, tolerances, entry conditions, and special requirements. |
| Workpiece material and hardness | Helps determine drill geometry, carbide grade, edge preparation, and coating direction. |
| Hole diameter, depth, and type | Defines drill size, working length, depth-to-diameter ratio, and blind- or through-hole requirements. |
| Entry, exit, and cross-hole conditions | Helps evaluate drill-entry stability, interrupted cutting, breakthrough impact, and burr-control requirements. |
| Tolerance, surface, and burr requirements | Helps assess dimensional accuracy, hole quality, internal cleanliness, and sealing-related requirements. |
| Current problem and production target | Clarifies tool wear, burrs, built-up edge, chip packing, deviation, breakage, tool life, or cycle-time targets. |
| Machine, holder, and coolant conditions | Helps evaluate runout, rigidity, coolant method, coolant pressure, and chip-evacuation stability. |
Review the component drawing, workpiece material, hole structure, machine conditions, and current drilling problem.
Select a suitable standard drill series or develop a custom drill based on hole depth, tolerance, entry conditions, and machining requirements.
Produce the drill with controlled geometry, edge preparation, coating selection, and multi-stage inspection to support consistent quality.
Support sample testing, specification confirmation, and stable repeat production after the drill solution is approved.
Walter 5-axis grinding supports stable drill-point geometry, flute consistency, diameter accuracy, and shank concentricity.
Controlled edge preparation helps improve cutting-edge consistency, coating adhesion, wear resistance, and tool-life stability.
Coating selection is matched to the workpiece material and drilling conditions to improve wear resistance, heat control, and cutting stability.
HELICHECK PLUS and 150× / 300× visual inspection help verify dimensions, cutting edges, coating appearance, and overall tool condition.
