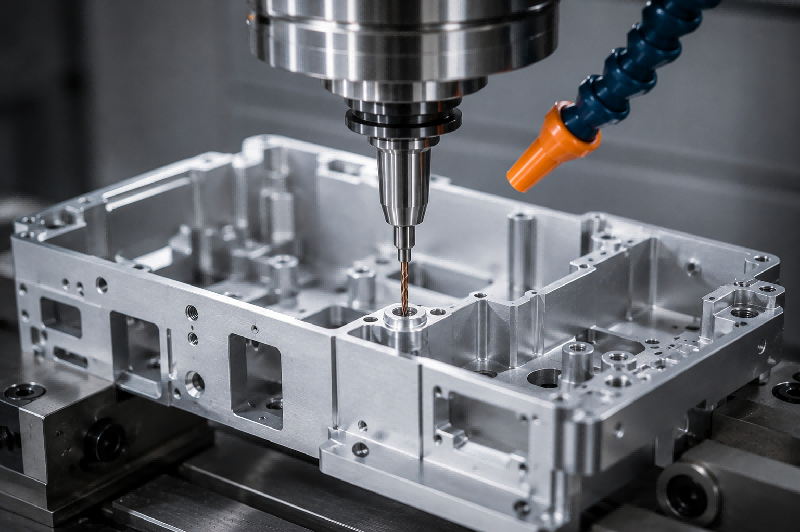

Electronic housings and structural frames contain mounting holes, locating holes, threaded-hole preparation, counterbores, blind holes, stepped holes, through-boss holes, and small precision features.
Thin-wall aluminum parts require controlled burr formation and deformation, while chassis, frames, and mounting plates demand repeatable hole position across multi-hole patterns. Machined bosses, cast surfaces, limited-access areas, and different workpiece materials may also create unstable entry, chip adhesion, tool deflection, and inconsistent hole quality.
Landun CNC Tool provides standard and custom carbide drill solutions based on drawings, materials, hole structures, tolerances, machine conditions, and production requirements.
Electronic enclosures, covers, lightweight frames, thin brackets, and compact structural parts often contain thin walls or unsupported exit surfaces.
Drilling these components may produce exit burrs, edge breakout, wall distortion, local collapse, or inconsistent hole shape that affects appearance and subsequent assembly.
Thin sections provide limited resistance to drilling force. Worn cutting edges, excessive feed near breakthrough, unstable component support, high spindle runout, or unsuitable drill-point geometry may push or deform the material instead of cutting it cleanly.
Clamping pressure may also distort lightweight components before drilling begins.
Sharp cutting geometry, stable but controlled component support, low-runout toolholding, suitable point geometry, and reduced breakthrough feed help limit burrs and deformation.
Short, rigid drills are preferred when the component structure and hole depth allow.
Frames, chassis, mounting plates, equipment bases, and structural supports may contain repeated mounting-hole patterns, locating holes, fastener holes, and alignment features.
Hole-position variation can affect panel installation, component alignment, fastener engagement, enclosure assembly, and interchangeability between production parts.
Fixture movement, unstable drill entry, excessive tool overhang, spindle runout, tool deflection, and inconsistent component positioning may create accumulated errors across a multi-hole pattern.
Large or thin components may also vibrate or deform when support is insufficient.
Rigid fixturing, accurate spotting, short tool overhang, low-runout holders, stable drill geometry, and consistent cutting parameters help improve positional repeatability.
Spot drills and drawing-based custom drills can improve entry accuracy and reduce variation between related features.
Aluminum electronic housings, chassis, baseplates, covers, and support structures may experience chip adhesion, built-up edge, flute blockage, poor hole surfaces, exit burrs, or inconsistent tool life.
Deeper blind holes and closely spaced hole patterns may further increase chip accumulation and cutting heat.
Aluminum chips may adhere to unsuitable cutting edges or flute surfaces. Insufficient flute space, poor coolant delivery, worn tools, excessive runout, or unsuitable cutting parameters can prevent chips from leaving the hole effectively.
Repeated drilling without stable chip evacuation may also damage the hole surface.
Sharp aluminum-specific geometry, polished or low-friction flute surfaces, suitable edge preparation, stable feed, and effective coolant or air delivery help reduce chip adhesion.
Internal-coolant drills may be considered for deeper blind holes or applications with restricted chip evacuation.
Die-cast housings, machined bosses, curved enclosure surfaces, ribs, angled brackets, and irregular structural features may provide an unstable drill-entry condition.
The drill may walk away from the intended position, engage unevenly, create an oversized entry, or suffer cutting-edge damage.
Curved, inclined, rough, or interrupted surfaces provide limited initial contact at the drill point.
Excessive tool overhang, high runout, unstable clamping, unsuitable point geometry, or excessive entry feed can further increase drill deflection and uneven cutting loads.
Accurate spotting, surface preparation where necessary, rigid component support, reduced tool overhang, low-runout toolholding, and controlled entry feed help improve drill guidance.
Flat-bottom or drawing-based custom drills may be required for highly inclined, interrupted, or restricted entry surfaces.
Electronic housings and frames may contain threaded-hole preparation, counterbores, countersink preparation, stepped mounting holes, screw-seat features, locating diameters, and flat-bottom recesses.
Variation in diameter, shoulder position, depth, or concentricity can affect tapping, fastener seating, insert installation, panel alignment, and final assembly quality.
Using several separate tools increases tool changes and positioning operations.
Tool deflection, drill-point allowance, unstable entry, inconsistent tool length, and accumulated positioning errors can affect the relationship between the pilot hole, counterbore, step, and fastener-seat feature.
Spot, step, flat-bottom, chamfer, and combined custom carbide drills can produce several related features in fewer machining operations.
This helps improve concentricity, shoulder position, depth control, thread preparation, and production efficiency.
Typical components include control-system housings, communication-equipment enclosures, instrument housings, power-electronics cases, protective covers, and compact equipment bodies.
Common hole features include mounting holes, threaded-hole preparation, locating holes, blind holes, through holes, and connector-related openings.

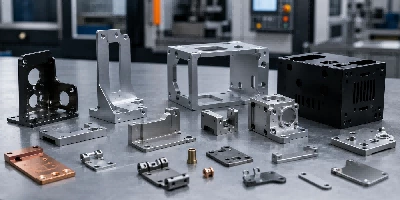

Common applications include equipment chassis, internal frames, support structures, mounting rails, reinforcing brackets, equipment racks, and structural members.
These components often contain repeated fastener holes, locating features, mounting patterns, and holes machined from different faces.

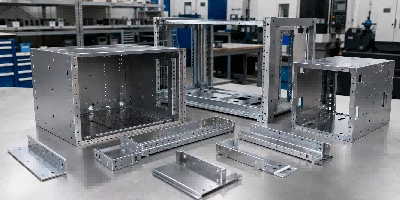

Typical components include electronic baseplates, mounting plates, interface panels, support plates, cover plates, fixture plates, and equipment installation surfaces.
Common features include mounting-hole patterns, locating holes, threaded-hole preparation, counterbores, countersinks, and stepped fastener holes.
Common applications include electronic brackets, sensor-mounting supports, protective covers, internal supports, hinges, compact frames, and small assembly components.
These parts may contain small mounting holes, locating features, angled holes, threaded holes, and thin-wall or restricted-access features.
For mounting holes, locating holes, threaded-hole preparation, blind holes, through holes, and general production drilling in electronic housings and structural components.
For small mounting holes, locating holes, interface features, compact brackets, miniature housings, and precision assembly holes requiring low runout.
For deep mounting holes, long through-boss holes, extended structural members, blind holes, and restricted-access features requiring reliable chip evacuation.
For stepped mounting holes, flat-bottom features, counterbores, angled entry, special diameters, combined operations, and drawing-based electronic components.
| INFORMATION | WHY IT MATTERS |
|---|---|
| Component drawing | Confirms hole geometry, entry angle, step features, tolerances, curved surfaces, and special requirements. |
| Workpiece material and hardness | Helps determine drill geometry, carbide grade, coating direction, edge preparation, and cutting parameters. |
| Hole diameter, depth, and type | Defines drill size, working length, depth-to-diameter ratio, and blind- or through-hole requirements. |
| Tolerance and surface finish | Helps evaluate dimensional accuracy, hole quality, and finishing requirements. |
| Machine, holder, and coolant conditions | Helps assess runout, rigidity, coolant pressure, and chip-evacuation stability. |
| Current problem and production target | Clarifies tool wear, burrs, chip packing, deviation, breakage, tool-life, or efficiency targets. |
Review the component drawing, workpiece material, hole structure, machine conditions, and current drilling problem.
Select a suitable standard drill series or develop a custom drill based on hole depth, tolerance, entry conditions, and machining requirements.
Produce the drill with controlled geometry, edge preparation, coating selection, and multi-stage inspection to support consistent quality.
Support sample testing, specification confirmation, and stable repeat production after the drill solution is approved.
Walter 5-axis grinding supports stable drill-point geometry, flute consistency, diameter accuracy, and shank concentricity.
Controlled edge preparation helps improve cutting-edge consistency, coating adhesion, wear resistance, and tool-life stability.
Coating selection is matched to the workpiece material and drilling conditions to improve wear resistance, heat control, and cutting stability.
HELICHECK PLUS and 150× / 300× visual inspection help verify dimensions, cutting edges, coating appearance, and overall tool condition.
