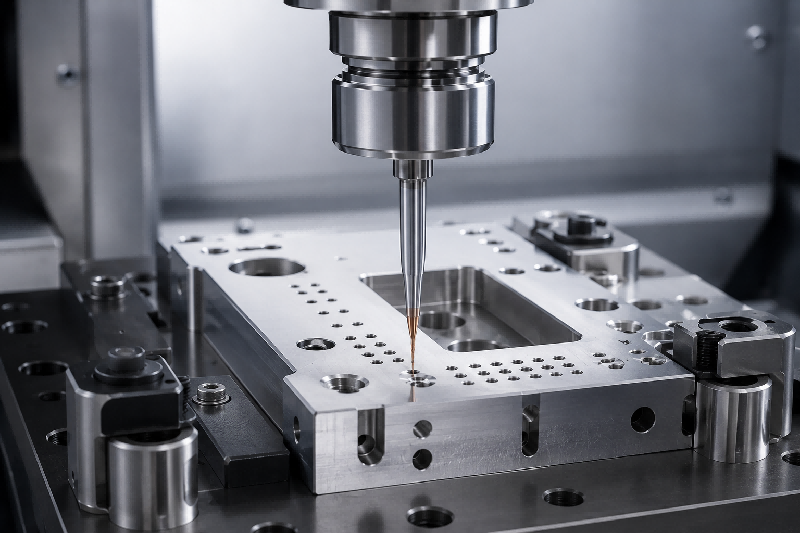

Semiconductor equipment and automation parts contain mounting holes, locating holes, dowel-hole preparation, threaded-hole preparation, blind holes, repeated hole patterns, cross holes, and internal vacuum or pneumatic passages.
Fixture plates and positioning blocks require stable hole position across large patterns, while robotic and alignment components demand consistent relationships between related features. Vacuum components and precision manifolds also require reliable chip evacuation and controlled internal burr formation.
Landun CNC Tool provides standard and custom carbide drill solutions based on drawings, materials, hole layouts, tolerances, machine conditions, and production requirements.
Fixture plates, equipment bases, positioning panels, automation frames, and mounting structures may contain many closely spaced mounting holes, threaded holes, locating holes, and repeated hole patterns.
Variation in hole position, diameter, or depth can affect equipment assembly, fixture installation, component interchangeability, and alignment between related parts.
Fixture movement, unstable drill entry, excessive tool overhang, spindle runout, tool deflection, inconsistent tool length, and insufficient plate support may create accumulated variation across a large hole pattern.
Rigid fixturing, accurate spotting, low-runout holders, short tool overhang, consistent drill geometry, and stable cutting parameters help improve positional repeatability.
Controlled edge preparation and regular tool-condition evaluation also support more consistent results across large hole quantities and repeat production batches.
Positioning blocks, fixture plates, robotic bases, alignment components, guide parts, and equipment interfaces may contain dowel holes and locating holes that establish assembly position.
Variation in hole position, straightness, diameter, or relationship to mounting surfaces may affect component alignment and repeat installation accuracy.
Unstable drill entry, spindle runout, tool deflection, excessive working length, and repeated repositioning can affect the initial hole.
Drilling alone may also be insufficient when the final dowel hole requires particularly close diameter, roundness, or surface-finish control.
Accurate spotting, rigid workholding, short tool overhang, low-runout toolholding, and a stable pilot hole help produce a consistent hole before final sizing.
The carbide drill can be selected to provide suitable machining allowance when subsequent reaming, precision boring, or another finishing process is required.
Vacuum plates, pneumatic components, precision manifolds, distribution blocks, and equipment interfaces may contain deep passages, cross holes, intersecting channels, blind holes, and small connection ports.
Chip congestion, internal burrs, drill deviation, incomplete passage connection, or trapped chips may affect subsequent cleaning, assembly, and passage inspection.
As drilling depth increases, chips must travel farther through the flute. Cross-hole breakthrough also creates uneven cutting-edge engagement when the drill enters an existing passage.
Insufficient coolant delivery, excessive feed, high runout, long tool overhang, or an unsuitable drilling sequence can increase chip-retention and burr risks.
Internal-coolant carbide drills help deliver coolant toward the cutting zone and move chips through long passages.
Stable pilot holes, controlled breakthrough feed, rigid workholding, suitable point geometry, and a planned drilling sequence improve passage accuracy and internal edge quality.
Large fixture plates, thin equipment panels, lightweight brackets, support plates, and automation structures may vibrate or deform during drilling.
Exit burrs, hole distortion, edge breakout, unstable diameter, or positional variation may occur when the workpiece is not adequately supported.
Large or thin components may have limited rigidity between clamping points. Excessive drilling force, worn cutting edges, high breakthrough feed, unstable support, or excessive tool overhang can increase vibration and local deformation.
Clamping pressure may also distort thin plates before machining begins.
Distributed component support, controlled clamping, sharp drill geometry, low-runout toolholding, suitable cutting parameters, and reduced breakthrough feed help control vibration and burr formation.
Short, rigid drills are preferred where the component thickness and hole depth allow.
Semiconductor equipment and automation parts may be produced from aluminum alloys, stainless steel, carbon steel, tool steel, copper alloys, and other engineering materials.
Machined plates, cast parts, heat-treated blocks, bosses, angled surfaces, and interrupted features may produce different entry conditions, chip forms, cutting loads, and wear mechanisms.
Aluminum may create chip adhesion, stainless steel may work-harden, tool steel increases cutting load, and copper alloys may produce continuous chips.
Rough, inclined, curved, or interrupted surfaces can also prevent balanced drill-point engagement and cause drill walking.
Material-specific drill geometry, carbide grade, edge preparation, coating, flute design, and coolant strategy help maintain stable drilling performance.
Spot drilling, surface preparation, rigid fixturing, and special point geometry may be required for irregular or inclined entry surfaces.

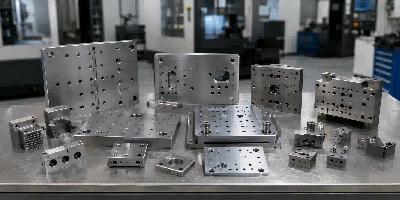

Typical components include fixture plates, tooling plates, positioning blocks, calibration bases, alignment plates, equipment tables, and precision mounting components.

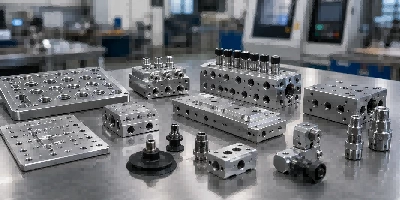

Common applications include vacuum plates, pneumatic distribution blocks, precision manifolds, suction components, air-routing parts, and compact equipment interfaces.

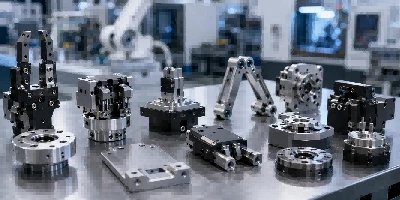

Typical components include robot mounting parts, end-effector bodies, gripper components, positioning arms, motion-control brackets, tool-change interfaces, and compact automation mechanisms.

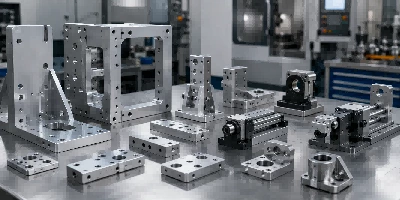

Typical applications include equipment brackets, structural frames, mounting supports, sensor bases, guide components, machine interfaces, and compact automation assemblies.
For mounting holes, locating holes, threaded-hole preparation, blind holes, through holes, and repeated production drilling in semiconductor equipment and automation parts.
For small locating holes, sensor-interface holes, pneumatic ports, compact assembly features, and closely positioned precision holes requiring low runout.
For vacuum passages, pneumatic channels, deep blind holes, long through-boss holes, and internal routes requiring reliable coolant delivery and chip evacuation.
For dowel-hole preparation, stepped holes, flat-bottom features, combined diameters, special lengths, cross holes, and drawing-based equipment components.
| INFORMATION | WHY IT MATTERS |
|---|---|
| Component drawing | Confirms hole geometry, entry angle, step features, tolerances, curved surfaces, and special requirements. |
| Workpiece material and hardness | Helps determine drill geometry, carbide grade, coating direction, edge preparation, and cutting parameters. |
| Hole diameter, depth, and type | Defines drill size, working length, depth-to-diameter ratio, and blind- or through-hole requirements. |
| Tolerance and surface finish | Helps evaluate dimensional accuracy, hole quality, and finishing requirements. |
| Machine, holder, and coolant conditions | Helps assess runout, rigidity, coolant pressure, and chip-evacuation stability. |
| Current problem and production target | Clarifies tool wear, burrs, chip packing, deviation, breakage, tool-life, or efficiency targets. |
Review the component drawing, workpiece material, hole structure, machine conditions, and current drilling problem.
Select a suitable standard drill series or develop a custom drill based on hole depth, tolerance, entry conditions, and machining requirements.
Produce the drill with controlled geometry, edge preparation, coating selection, and multi-stage inspection to support consistent quality.
Support sample testing, specification confirmation, and stable repeat production after the drill solution is approved.
Walter 5-axis grinding supports stable drill-point geometry, flute consistency, diameter accuracy, and shank concentricity.
Controlled edge preparation helps improve cutting-edge consistency, coating adhesion, wear resistance, and tool-life stability.
Coating selection is matched to the workpiece material and drilling conditions to improve wear resistance, heat control, and cutting stability.
HELICHECK PLUS and 150× / 300× visual inspection help verify dimensions, cutting edges, coating appearance, and overall tool condition.
