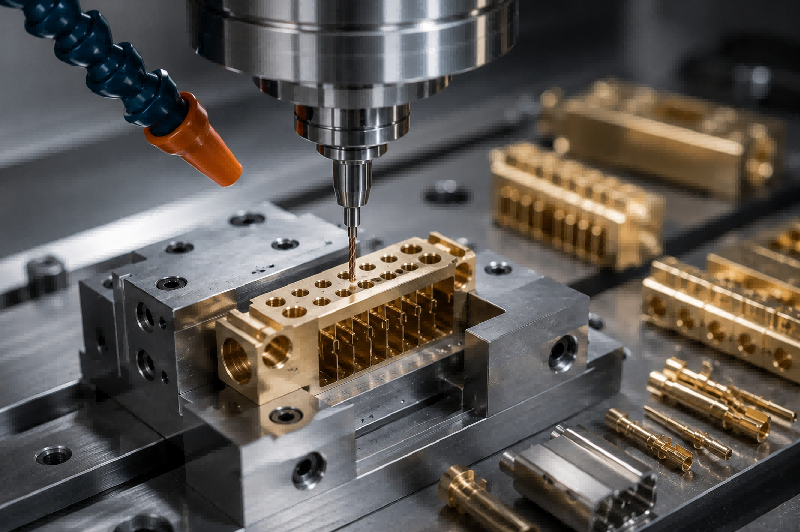

Connectors, terminal housings, and interface components contain locating holes, assembly holes, contact-support holes, threaded-hole preparation, axial holes, cross holes, stepped holes, and other small precision features.
Compact dimensions and closely positioned holes require stable entry and low runout, while thin-wall shells demand controlled breakthrough and burr formation. Brass, copper alloys, aluminum, and stainless steel also produce different chip forms, adhesion risks, cutting loads, and tool-wear conditions.
Landun CNC Tool provides standard and custom carbide drill solutions based on component drawings, materials, hole structures, tolerances, machine conditions, and production requirements.
Connector shells, terminal housings, receptacles, contact-support parts, and compact interface components may contain small locating holes, mounting holes, guide holes, and closely positioned precision features.
Hole-size variation, position error, poor surface quality, drill deviation, or premature micro-drill breakage may affect component alignment and subsequent assembly.
Small-diameter carbide drills have limited rigidity and are sensitive to spindle runout, holder condition, excessive working length, unstable component support, unsuitable cutting parameters, and restricted chip evacuation.
Even minor tool deflection can significantly affect hole diameter and position in compact connector components.
Precision-ground micro carbide drills, low-runout toolholding, short working lengths, rigid fixturing, controlled feed, and reliable chip removal help maintain stable hole dimensions and position.
Drill geometry, flute design, edge preparation, coating, and working length should be matched to the material, diameter, drilling depth, and tolerance requirement.
Connector shells, backshells, receptacle bodies, shielding components, and lightweight interface housings may contain thin walls or unsupported exit surfaces.
Drilling these parts may produce exit burrs, edge breakout, local wall deformation, hole distortion, or damage around nearby sealing and assembly surfaces.
Thin sections provide limited resistance to drilling force. Worn cutting edges, excessive breakthrough feed, unstable clamping, high spindle runout, or unsuitable drill-point geometry may push the material outward instead of cutting it cleanly.
Excessive clamping pressure may also deform a thin connector body before drilling begins.
Sharp cutting geometry, stable but controlled workpiece support, low-runout toolholding, suitable point geometry, and reduced breakthrough feed help limit burr formation and deformation.
Short, rigid drills are preferred where the component geometry and drilling depth allow.
Machined connectors, electrical interfaces, terminal supports, adapters, and cable components may be produced from brass, copper alloys, or aluminum.
These materials may create long or adhesive chips, built-up edge, flute blockage, poor hole surfaces, exit burrs, or unstable tool life when drill geometry and cutting conditions are unsuitable.
Copper alloys may form continuous or difficult-to-break chips, while aluminum can adhere to the cutting edge and flute surface.
Limited flute space, worn cutting edges, insufficient coolant or air delivery, excessive runout, and unsuitable feed may restrict chip evacuation and increase material adhesion.
Sharp material-specific geometry, smooth or low-friction flute surfaces, suitable edge preparation, stable feed, and effective coolant or air delivery help improve chip control.
Internal coolant may be considered for deeper blind holes or long axial features where chips have a longer evacuation path.
Connector bodies, receptacles, adapters, coupling components, and interface housings may require stepped holes, counterbores, flat-bottom recesses, threaded-hole preparation, locating diameters, and several concentric features.
Variation in diameter, shoulder position, depth, or concentricity may affect component alignment, insert installation, fastener seating, coupling engagement, and final assembly consistency.
Using several separate tools increases tool changes and positioning operations.
Tool deflection, drill-point allowance, unstable entry, inconsistent tool length, and accumulated positioning errors can affect the relationship between pilot holes, counterbores, locating diameters, and threaded features.
Spot, step, flat-bottom, chamfer, and combined custom carbide drills can produce several related features in fewer machining operations.
This helps improve feature concentricity, shoulder position, depth control, thread preparation, and production efficiency.
Long connector bodies, cable adapters, coupling sleeves, backshells, and cylindrical interface parts may contain deep axial holes, blind passages, or small internal features.
These holes may experience chip congestion, cutting-heat accumulation, drill deviation, poor straightness, unstable depth, or premature drill breakage.
As drilling depth increases, chips must travel farther through the drill flutes. Small diameters provide limited chip space, while insufficient coolant delivery, unsuitable drilling cycles, excessive runout, or limited machine rigidity can restrict chip evacuation.
Internal-coolant carbide drills help deliver coolant toward the cutting edge and move chips through long flutes.
Accurate pilot holes, suitable flute geometry, stable coolant pressure, controlled entry and withdrawal, and rigid machine conditions help improve hole straightness and drilling stability.

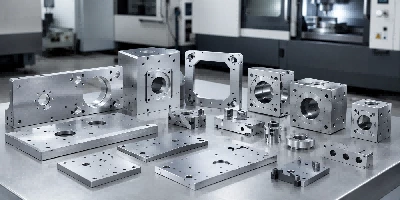

Typical components include circular connector shells, rectangular connector bodies, receptacles, plug housings, shielding shells, and panel-mounted interfaces.
Common applications include machined terminal housings, contact-support parts, terminal blocks, insulating-component supports, locating components, and compact electrical interface parts.

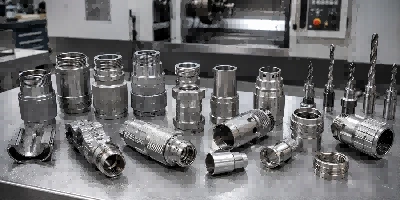

Typical components include cable adapters, connector backshells, coupling sleeves, strain-relief bodies, transition components, and cylindrical cable-interface parts.

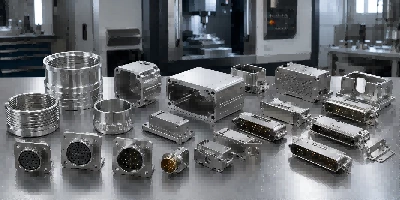

Typical applications include interface plates, panel adapters, mounting components, converter housings, coupling interfaces, alignment blocks, and compact assembly parts.
For mounting holes, locating holes, threaded-hole preparation, axial holes, blind holes, through holes, and general drilling in connector and interface components.
For contact-positioning holes, guide holes, small locating holes, miniature assembly features, and closely positioned precision holes requiring low runout.
For long connector bodies, coupling sleeves, cable adapters, axial passages, and deeper blind holes requiring reliable coolant delivery and chip evacuation.
For stepped interface holes, counterbores, flat-bottom recesses, special diameters, cross holes, angled entry, and combined machining operations.
| INFORMATION | WHY IT MATTERS |
|---|---|
| Component drawing | Confirms hole geometry, entry angle, step features, tolerances, curved surfaces, and special requirements. |
| Workpiece material and hardness | Helps determine drill geometry, carbide grade, coating direction, edge preparation, and cutting parameters. |
| Hole diameter, depth, and type | Defines drill size, working length, depth-to-diameter ratio, and blind- or through-hole requirements. |
| Tolerance and surface finish | Helps evaluate dimensional accuracy, hole quality, and finishing requirements. |
| Machine, holder, and coolant conditions | Helps assess runout, rigidity, coolant pressure, and chip-evacuation stability. |
| Current problem and production target | Clarifies tool wear, burrs, chip packing, deviation, breakage, tool-life, or efficiency targets. |
Review the component drawing, workpiece material, hole structure, machine conditions, and current drilling problem.
Select a suitable standard drill series or develop a custom drill based on hole depth, tolerance, entry conditions, and machining requirements.
Produce the drill with controlled geometry, edge preparation, coating selection, and multi-stage inspection to support consistent quality.
Support sample testing, specification confirmation, and stable repeat production after the drill solution is approved.
Walter 5-axis grinding supports stable drill-point geometry, flute consistency, diameter accuracy, and shank concentricity.
Controlled edge preparation helps improve cutting-edge consistency, coating adhesion, wear resistance, and tool-life stability.
Coating selection is matched to the workpiece material and drilling conditions to improve wear resistance, heat control, and cutting stability.
HELICHECK PLUS and 150× / 300× visual inspection help verify dimensions, cutting edges, coating appearance, and overall tool condition.
