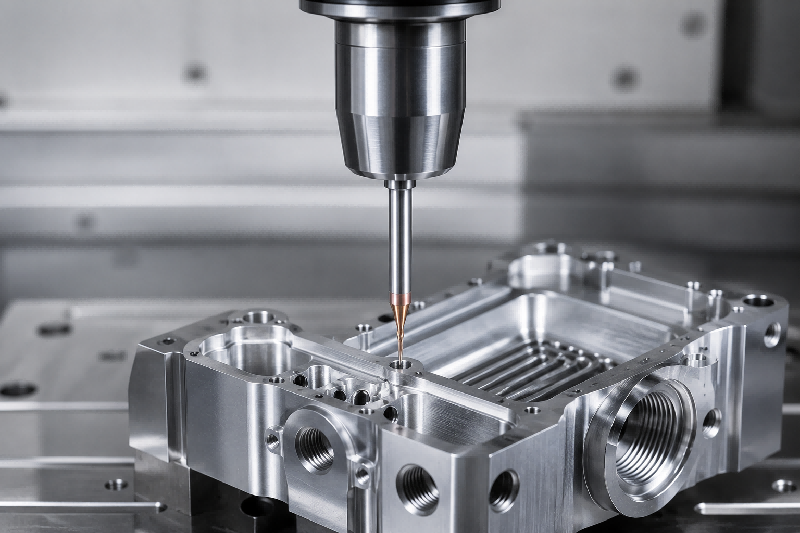

Thermal-management and cooling components contain mounting holes, threaded-port preparation, cross holes, blind holes, deep cooling passages, stepped connections, sealing-related holes, and repeated hole patterns.
Long internal channels require reliable coolant delivery and chip evacuation, while intersecting passages demand controlled breakthrough and internal burr formation. Thin-wall cold plates, dense hole layouts, and aluminum or copper-alloy materials may also create deformation, chip adhesion, tool wear, and dimensional variation.
Landun CNC Tool provides standard and custom carbide drill solutions based on drawings, materials, passage layouts, hole dimensions, tolerances, machine conditions, and production requirements.
Liquid-cooling blocks, cold plates, thermal manifolds, and power-electronics cooling components may contain long blind holes, deep straight passages, or small-diameter internal cooling channels.
These holes may experience chip congestion, cutting-heat accumulation, drill deviation, poor straightness, unstable depth, surface damage, or premature drill breakage.
As drilling depth increases, chips must travel farther through the drill flutes. Small passage diameters provide limited chip space, while insufficient coolant pressure, unsuitable drilling cycles, excessive runout, inaccurate pilot holes, or limited machine rigidity can restrict chip evacuation.
Internal-coolant carbide drills deliver coolant closer to the cutting edge and help move chips through long flutes.
Accurate pilot holes, suitable flute geometry, stable coolant pressure, controlled entry and withdrawal, low runout, and rigid machine conditions help improve hole straightness and drilling stability.
Cooling plates, liquid-cooling blocks, thermal manifolds, and fluid-distribution components may contain cross holes and intersecting passages that connect separate cooling channels.
When a drill breaks into an existing passage, uneven cutting loads may cause drill deflection, edge chipping, enlarged intersections, hanging chips, or internal burrs that are difficult to inspect and remove.
One cutting edge may lose material support before the other as the drill enters the existing passage.
Excessive breakthrough feed, high spindle runout, long tool overhang, insufficient component support, or unsuitable drill-point geometry can increase cutting-force imbalance and internal edge deformation.
Rigid toolholding, controlled breakthrough feed, suitable drill-point geometry, low runout, and stable component fixturing help reduce impact during passage intersection.
Through-tool coolant and a planned drilling sequence improve chip removal. Drawing-based custom drill geometry may be considered for repeated cross-hole applications with demanding internal-edge requirements.
Cold plates, lightweight cooling housings, thin heat-spreader plates, cover plates, and compact thermal components may contain thin walls or unsupported exit surfaces.
Drilling these parts may produce exit burrs, local deformation, wall distortion, edge breakout, or inconsistent hole shape that affects subsequent assembly and sealing operations.
Thin sections provide limited resistance to drilling force. Worn cutting edges, excessive feed near breakthrough, unstable component support, high runout, or unsuitable point geometry may push the material outward instead of cutting it cleanly.
Excessive clamping pressure may also distort a thin cooling plate before drilling begins.
Sharp cutting geometry, stable but controlled component support, low-runout toolholding, suitable drill-point geometry, and reduced breakthrough feed help limit burr formation and deformation.
Cooling blocks and thermal manifolds may contain inlet and outlet ports, threaded-hole preparation, plug holes, stepped passages, counterbores, flat-bottom features, and sealing-related interfaces.
Variation in diameter, shoulder position, bottom depth, or concentricity may affect subsequent tapping, connector installation, plug position, sealing-element location, and assembly consistency.
Using several separate tools increases tool changes and positioning operations.
Tool deflection, drill-point allowance, unstable entry, inconsistent tool length, and accumulated positioning errors may affect the relationship between the pilot hole, threaded-port preparation, step, counterbore, and sealing feature.
Spot, step, flat-bottom, chamfer, and combined custom carbide drills can produce several related features in fewer machining operations.
This helps improve feature concentricity, shoulder position, bottom depth, threaded-hole preparation, and production efficiency.
Critical sealing surfaces may still require an appropriate finishing operation according to the component drawing and surface requirement.
Cold plates, heat sinks, liquid-cooling blocks, heat spreaders, and power-electronics cooling components are commonly manufactured from aluminum or copper alloys.
These materials may produce adhesive or continuous chips, built-up edge, flute blockage, poor hole surfaces, exit burrs, diameter variation, or unstable drill life.
Aluminum may adhere to unsuitable cutting edges and flute surfaces, while copper alloys may produce long chips that are difficult to break and evacuate.
Limited flute space, worn cutting edges, insufficient coolant or air delivery, excessive runout, and unsuitable cutting parameters can further increase chip congestion.
Sharp material-specific geometry, smooth or low-friction flute surfaces, suitable edge preparation, stable feed, and effective coolant delivery help improve chip control.
The drill geometry, flute design, coating or surface treatment, and cutting parameters should be matched to the material grade, hole depth, and production requirements.

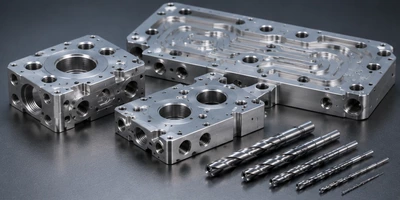

Typical components include liquid-cooling blocks, cold plates, battery-cooling plates, processor-cooling components, and compact cooling assemblies containing deep channels, cross holes, threaded ports, and plug holes.

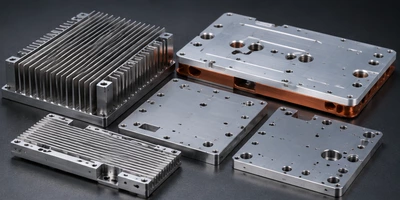

Common applications include machined heat sinks, heat spreaders, thermal baseplates, cooling bases, mounting plates, and heat-transfer components containing mounting holes, locating holes, blind holes, and threaded-hole preparation.

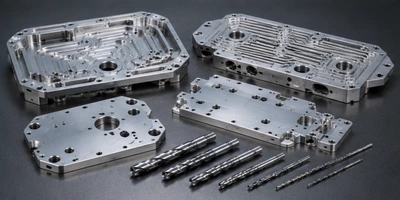

Common features include mounting-hole patterns, threaded holes, internal cooling passages, cross holes, connector ports, and stepped interfaces.

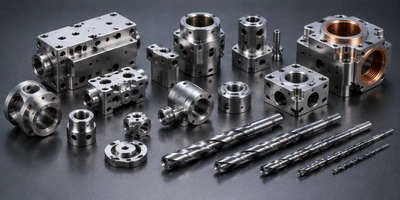

Typical applications include cooling manifolds, fluid-distribution blocks, connector bodies, inlet and outlet components, transition blocks, plug interfaces, and compact thermal-control assemblies.
For mounting holes, locating holes, threaded-hole preparation, plug holes, blind holes, through holes, and general production drilling in thermal-management components.
For small cooling passages, sensor holes, vent holes, control holes, locating features, and compact precision holes requiring low runout and dimensional consistency.
For long cooling passages, deep blind holes, internal fluid channels, and high depth-to-diameter applications requiring reliable coolant delivery and chip evacuation.
For stepped ports, sealing counterbores, flat-bottom features, special diameters, cross holes, combined operations, and drawing-based cooling components.
| INFORMATION | WHY IT MATTERS |
|---|---|
| Component drawing | Confirms hole geometry, entry angle, step features, tolerances, curved surfaces, and special requirements. |
| Workpiece material and hardness | Helps determine drill geometry, carbide grade, coating direction, edge preparation, and cutting parameters. |
| Hole diameter, depth, and type | Defines drill size, working length, depth-to-diameter ratio, and blind- or through-hole requirements. |
| Tolerance and surface finish | Helps evaluate dimensional accuracy, hole quality, and finishing requirements. |
| Machine, holder, and coolant conditions | Helps assess runout, rigidity, coolant pressure, and chip-evacuation stability. |
| Current problem and production target | Clarifies tool wear, burrs, chip packing, deviation, breakage, tool-life, or efficiency targets. |
Review the component drawing, workpiece material, hole structure, machine conditions, and current drilling problem.
Select a suitable standard drill series or develop a custom drill based on hole depth, tolerance, entry conditions, and machining requirements.
Produce the drill with controlled geometry, edge preparation, coating selection, and multi-stage inspection to support consistent quality.
Support sample testing, specification confirmation, and stable repeat production after the drill solution is approved.
Walter 5-axis grinding supports stable drill-point geometry, flute consistency, diameter accuracy, and shank concentricity.
Controlled edge preparation helps improve cutting-edge consistency, coating adhesion, wear resistance, and tool-life stability.
Coating selection is matched to the workpiece material and drilling conditions to improve wear resistance, heat control, and cutting stability.
HELICHECK PLUS and 150× / 300× visual inspection help verify dimensions, cutting edges, coating appearance, and overall tool condition.
