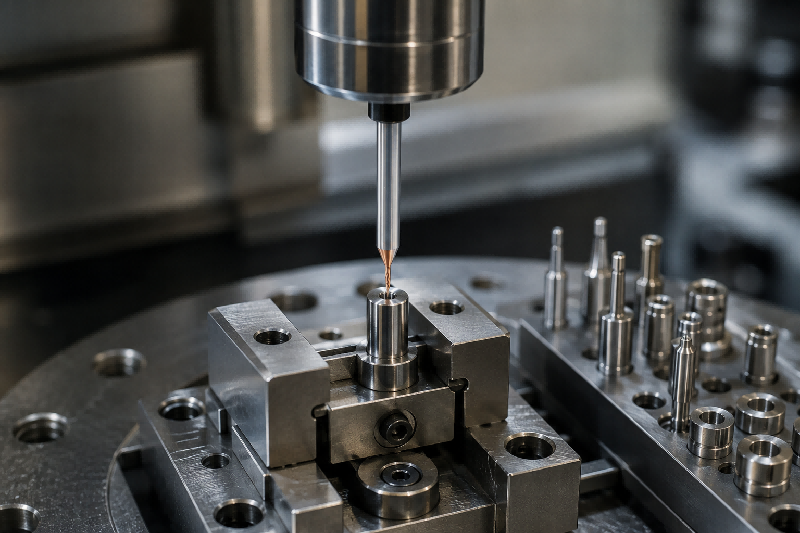

Sleeves, bushings, pins, nozzles, small shafts, and miniature precision parts contain axial holes, cross holes, blind holes, micro holes, stepped holes, flat-bottom features, and threaded-hole preparation.
Small diameters and slender structures require low runout, stable entry, and controlled chip evacuation. Thin walls and unsupported breakthrough edges may also create burrs, deformation, or hole distortion, while related internal and external features demand consistent concentricity.
Landun CNC Tool provides standard and custom carbide drill solutions based on drawings, materials, hole dimensions, wall thickness, tolerances, machine conditions, and production requirements.
Miniature bushings, precision pins, nozzles, instrument components, and compact mechanisms may contain very small axial holes, locating holes, vent holes, control holes, or assembly features.
Hole-size variation, drill deviation, poor surface quality, position error, or premature micro-drill breakage may affect component fit and production consistency.
Small-diameter carbide drills have limited rigidity and are highly sensitive to spindle runout, holder condition, excessive working length, unstable component support, unsuitable cutting parameters, and restricted chip evacuation.
Even minor tool deflection can significantly affect hole diameter and position in miniature components.
Precision-ground micro carbide drills, low-runout toolholding, short working lengths, rigid fixturing, controlled feed, and reliable chip removal help maintain stable hole dimensions.
Drill geometry, flute design, edge preparation, coating, and working length should be selected according to the material, hole diameter, drilling depth, and tolerance requirement.
Precision sleeves, bushings, nozzles, small shafts, and cylindrical inserts may require axial holes that remain straight and concentric with the component’s outside diameter or related locating features.
Drill deviation or inconsistent entry can create uneven wall thickness, misaligned internal features, insufficient finishing allowance, or variation between production parts.
Long tool engagement, excessive drill overhang, inaccurate entry, spindle runout, unstable cylindrical-part clamping, and unsuitable pilot-hole conditions can affect the final hole path.
Small entry errors become more significant as the drilling depth increases.
Accurate spotting or pilot drilling, low-runout toolholding, controlled working length, rigid but balanced component support, and stable cutting parameters help improve hole straightness.
Where the final bore requires particularly close diameter, roundness, straightness, or surface finish, the drilled hole can be prepared with controlled allowance for subsequent reaming, precision boring, or honing.
Thin-wall sleeves, miniature housings, tubular components, lightweight bushings, and compact inserts may develop exit burrs, local wall deformation, hole distortion, edge breakout, or component collapse during drilling.
These defects may affect assembly, sliding fit, sealing, appearance, or subsequent finishing operations.
Thin sections provide limited resistance to drilling and clamping forces. Worn cutting edges, excessive breakthrough feed, unstable component support, high runout, or unsuitable drill-point geometry may push the material outward instead of cutting it cleanly.
Excessive clamping pressure may also distort a thin cylindrical component before drilling begins.
Sharp cutting geometry, controlled component support, low-runout toolholding, suitable drill-point geometry, and reduced breakthrough feed help limit burr formation and deformation.
Short, rigid drills are preferred where the component structure and drilling depth allow.
Sleeves, pins, nozzles, small shafts, and tubular parts may contain radial holes or cross holes drilled through curved external surfaces into an existing axial bore.
The drill may walk during entry or experience uneven cutting loads during breakthrough, causing position error, edge damage, enlarged intersections, internal burrs, or trapped chips.
A curved surface provides limited initial contact for the drill point. When the drill enters an existing bore, one cutting edge may lose material support before the other.
High runout, long tool overhang, insufficient part support, excessive breakthrough feed, or unsuitable point geometry can increase instability.
Accurate spot drilling, rigid component support, short tool overhang, low-runout holders, controlled breakthrough feed, and suitable point geometry help improve entry and intersection stability.
Custom drill geometry may be considered for repeated radial-hole or cross-hole applications with demanding internal-edge requirements.
Long sleeves, nozzles, small shafts, guiding components, and miniature tubular parts may require deep axial holes or extended small-diameter internal passages.
These holes may experience chip congestion, cutting-heat accumulation, drill deviation, poor straightness, unstable depth, surface damage, or premature drill breakage.
As drilling depth increases, chips must travel farther through narrow flutes. Small hole diameters provide limited chip space, while insufficient coolant delivery, unsuitable drilling cycles, excessive runout, inaccurate pilot holes, or limited machine rigidity can restrict chip evacuation.
Internal-coolant carbide drills help deliver coolant toward the cutting edge and move chips through long flutes.
Accurate pilot holes, suitable flute geometry, stable coolant pressure, controlled entry and withdrawal, low runout, and rigid machine conditions help improve straightness and drilling stability.

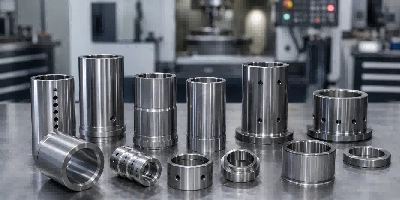

Typical components include guide sleeves, locating bushings, bearing-related bushings, spacer sleeves, precision inserts, and cylindrical supports containing axial holes, radial holes, lubrication holes, and stepped internal features.

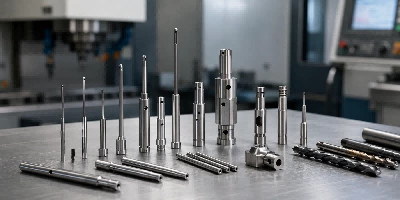

Common applications include precision pins, fluid nozzles, small shafts, guide rods, metering components, and cylindrical interface parts containing small axial holes, blind holes, radial holes, and outlet features.

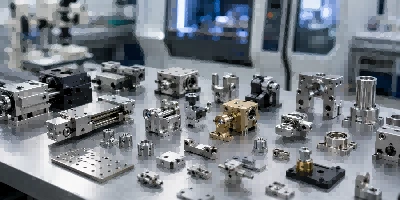

Typical components include instrument parts, miniature joints, compact actuators, small locking mechanisms, precision supports, alignment parts, and assembled micro-mechanisms.

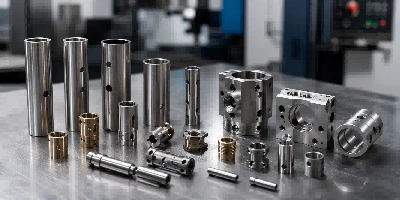

Typical applications include thin-wall tubes, miniature inserts, small housings, connector sleeves, lightweight bushings, and compact precision components containing axial, radial, stepped, or combined hole structures.
For axial holes, mounting holes, locating holes, blind holes, through holes, and general production drilling in sleeves, bushings, pins, shafts, and compact precision parts.
For small axial holes, vent holes, control holes, lubrication holes, locating features, and miniature precision holes requiring low runout and stable dimensions.
For long axial holes, deep blind holes, extended internal passages, and high depth-to-diameter applications requiring reliable coolant delivery and chip evacuation.
For special diameters, controlled finishing allowances, stepped holes, flat-bottom features, radial holes, combined structures, and special working lengths.
| INFORMATION | WHY IT MATTERS |
|---|---|
| Component drawing | Confirms hole geometry, entry angle, step features, tolerances, curved surfaces, and special requirements. |
| Workpiece material and hardness | Helps determine drill geometry, carbide grade, coating direction, edge preparation, and cutting parameters. |
| Hole diameter, depth, and type | Defines drill size, working length, depth-to-diameter ratio, and blind- or through-hole requirements. |
| Tolerance and surface finish | Helps evaluate dimensional accuracy, hole quality, and finishing requirements. |
| Machine, holder, and coolant conditions | Helps assess runout, rigidity, coolant pressure, and chip-evacuation stability. |
| Current problem and production target | Clarifies tool wear, burrs, chip packing, deviation, breakage, tool-life, or efficiency targets. |
Review the component drawing, workpiece material, hole structure, machine conditions, and current drilling problem.
Select a suitable standard drill series or develop a custom drill based on hole depth, tolerance, entry conditions, and machining requirements.
Produce the drill with controlled geometry, edge preparation, coating selection, and multi-stage inspection to support consistent quality.
Support sample testing, specification confirmation, and stable repeat production after the drill solution is approved.
Walter 5-axis grinding supports stable drill-point geometry, flute consistency, diameter accuracy, and shank concentricity.
Controlled edge preparation helps improve cutting-edge consistency, coating adhesion, wear resistance, and tool-life stability.
Coating selection is matched to the workpiece material and drilling conditions to improve wear resistance, heat control, and cutting stability.
HELICHECK PLUS and 150× / 300× visual inspection help verify dimensions, cutting edges, coating appearance, and overall tool condition.
