Surgical instruments and tooling contain assembly holes, pivot holes, locating holes, threaded-hole preparation, blind holes, deep axial holes, stepped holes, and small precision features.
Stainless steel may produce work hardening, adhesion, exit burrs, and rapid tool wear, while hardened tool-steel components increase cutting load and edge damage. Long instrument shafts, thin sections, curved surfaces, and close-fitting assemblies also require stable drill entry, low runout, reliable chip evacuation, and controlled breakthrough.

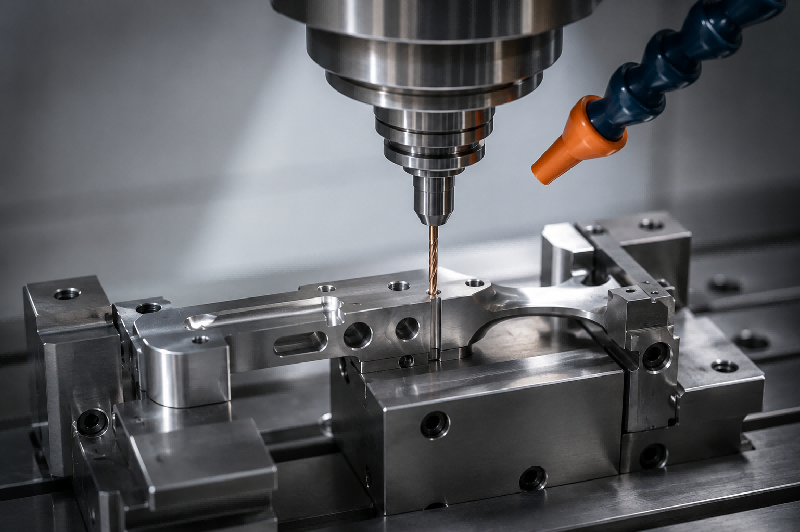

Landun CNC Tool provides standard and custom carbide drill solutions based on component drawings, material grade, hole dimensions, drilling depth, tolerance, coolant conditions, and production requirements.
Forceps, clamps, scissors, handles, and other stainless steel instrument components may develop unstable cutting loads, built-up material, exit burrs, inconsistent hole surfaces, and shortened drill life.
Stainless steel may work-harden when the cutting edge rubs instead of removing material effectively. Insufficient feed, worn cutting edges, excessive runout, unstable workholding, repeated dwell, or poor chip evacuation can increase heat and cutting resistance.
Thin sections and unsupported exit surfaces may also deform during drill breakthrough, producing larger burrs around assembly and pivot holes.
Sharp cutting geometry, controlled edge preparation, suitable coatings, stable feed, rigid toolholding, and sufficient coolant help maintain effective cutting and reduce work hardening.
Controlled breakthrough feed and suitable drill-point geometry can further reduce exit burrs and deformation in thin instrument components.
Reamers, surgical guides, cutting-tool components, instrument interfaces, and heat-treated tooling parts may cause rapid flank wear, edge chipping, hole-size variation, or unexpected drill breakage.
Hardened tool steel and heat-treated stainless steel create higher cutting resistance and concentrated loads at the drill point. Excessive runout, weak edge geometry, unsuitable coating, interrupted engagement, or insufficient machine rigidity can accelerate cutting-edge damage.
A wear-resistant carbide substrate, reinforced cutting-edge design, controlled edge preparation, suitable coating, and stable machine setup help improve edge strength and tool-life consistency.
Short tool overhang and rigid workholding are also important when drilling hardened or interrupted surfaces.
Small assembly holes, pivot holes, locating holes, locking features, and miniature instrument components may show diameter variation, hole-position error, poor surface quality, or premature micro-drill breakage.
Small-diameter carbide drills have limited rigidity and are sensitive to spindle runout, holder condition, excessive working length, unstable fixturing, incorrect parameters, and restricted chip evacuation.
Even small changes in runout or drill entry can affect hole position and dimensional consistency.
Precision-ground micro carbide drills, low-runout toolholding, short working lengths, stable workholding, controlled feed, and reliable chip removal help maintain hole size and position.
Drill geometry, coating, and flute design should be selected according to the material, diameter, and drilling depth.
Instrument shafts, reamers, drivers, guiding components, and long tooling parts may contain deep axial holes, blind passages, coolant-related holes, or long internal features.
These holes may suffer from chip congestion, cutting-heat accumulation, drill deflection, poor straightness, and unstable hole depth.
As the hole depth increases, chips must travel farther through the drill flutes. Insufficient coolant pressure, unsuitable pecking cycles, excessive runout, inaccurate pilot holes, or limited machine rigidity can make chip evacuation unstable.
Long drills are also more sensitive to deflection and uneven cutting loads.
Internal-coolant carbide drills deliver coolant closer to the cutting edge and help move chips through long flutes. Accurate pilot holes, suitable flute geometry, controlled entry, stable coolant pressure, and rigid machine conditions improve deep-hole stability.
Instrument handles, locking components, surgical guides, removable interfaces, and assembled mechanisms may require stepped holes, countersink preparation, threaded-hole preparation, angled holes, flat-bottom holes, or multiple concentric diameters.
Variation between these features can affect component positioning, pivot movement, fastener engagement, and assembly consistency.
Multiple tools and repeated positioning operations can create accumulated dimensional errors. Curved or angled entry surfaces may cause drill walking, while drill-point allowance can affect blind-hole depth and shoulder position.
Spot drills improve entry position on angled or curved surfaces. Step, flat-bottom, chamfer, and combined custom carbide drills can machine multiple features in fewer operations, helping improve concentricity, shoulder position, hole depth, and production consistency.
Typical drilling features include pivot holes, hinge holes, assembly holes, locating holes, threaded-hole preparation, locking holes, and small precision features in stainless steel components.

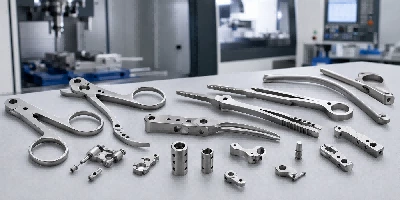

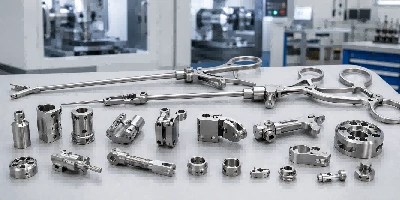

Common components include instrument handles, locking mechanisms, ratchet parts, joints, connectors, fastener interfaces, and removable assemblies containing pivot holes, threaded holes, stepped holes, and locating features.

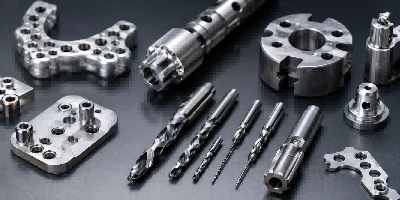

Typical applications include surgical guides, drill guides, reamers, cutting-tool bodies, guiding components, alignment features, mounting holes, and hardened tooling parts.

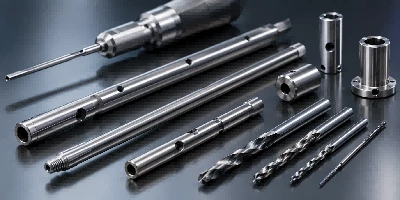

Typical components include instrument shafts, drivers, extensions, guiding rods, tubular components, sleeves, and long tooling parts containing axial holes, blind holes, cross holes, and deep internal passages.
For general assembly holes, pivot holes, locating holes, blind holes, through holes, and threaded-hole preparation in stainless steel and tool-steel surgical instrument components.
For small-diameter pivot holes, locking features, guide holes, locating holes, and miniature instrument components requiring stable hole size and position.
For instrument shafts, reamers, drivers, sleeves, and long components containing deep axial holes, blind passages, or extended internal features.
For stepped holes, flat-bottom holes, countersink preparation, special diameters, angled-entry holes, combined features, and drawing-based surgical instrument tooling.
| INFORMATION | WHY IT MATTERS |
|---|---|
| Component drawing | Confirms hole geometry, entry angle, step features, tolerances, curved surfaces, and special requirements. |
| Workpiece material and hardness | Helps determine drill geometry, carbide grade, coating direction, edge preparation, and cutting parameters. |
| Hole diameter, depth, and type | Defines drill size, working length, depth-to-diameter ratio, and blind- or through-hole requirements. |
| Tolerance and surface finish | Helps evaluate dimensional accuracy, hole quality, and finishing requirements. |
| Machine, holder, and coolant conditions | Helps assess runout, rigidity, coolant pressure, and chip-evacuation stability. |
| Current problem and production target | Clarifies tool wear, burrs, chip packing, deviation, breakage, tool-life, or efficiency targets. |
Review the component drawing, workpiece material, hole structure, machine conditions, and current drilling problem.
Select a suitable standard drill series or develop a custom drill based on hole depth, tolerance, entry conditions, and machining requirements.
Produce the drill with controlled geometry, edge preparation, coating selection, and multi-stage inspection to support consistent quality.
Support sample testing, specification confirmation, and stable repeat production after the drill solution is approved.
Walter 5-axis grinding supports stable drill-point geometry, flute consistency, diameter accuracy, and shank concentricity.
Controlled edge preparation helps improve cutting-edge consistency, coating adhesion, wear resistance, and tool-life stability.
Coating selection is matched to the workpiece material and drilling conditions to improve wear resistance, heat control, and cutting stability.
HELICHECK PLUS and 150× / 300× visual inspection help verify dimensions, cutting edges, coating appearance, and overall tool condition.
