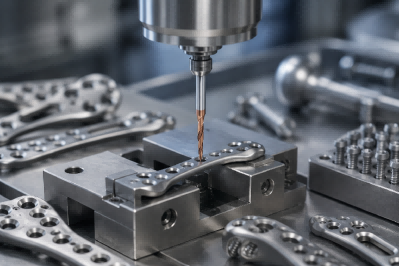

Orthopedic implants and trauma components involve fixation screw holes, locating holes, angled holes, blind holes, stepped holes, threaded-hole preparation, and other small precision features.
Titanium alloys require effective heat and chip control, while medical stainless steel may cause work hardening and exit burrs. Cobalt-chromium components create high cutting loads and rapid tool wear. Curved surfaces, thin sections, angled entry, and close tolerances also demand stable drilling and low runout.
Landun CNC Tool provides standard and custom carbide drill solutions based on component drawings, material grade, hole size, drilling depth, tolerance, coolant conditions, and machining requirements.
When drilling titanium or cobalt-chromium implant components, the cutting edge may experience rapid wear, edge chipping, rising cutting temperature, and unstable hole size during repeated production.
Concentrated cutting heat, high cutting resistance, material adhesion, insufficient coolant delivery, excessive runout, or unsuitable drill geometry can increase cutting load and accelerate cutting-edge damage.
Material-specific drill geometry, controlled edge preparation, suitable wear-resistant coatings, and stable coolant delivery help control heat and cutting load. Through-tool coolant can further improve chip evacuation and temperature control in deeper or blind holes.

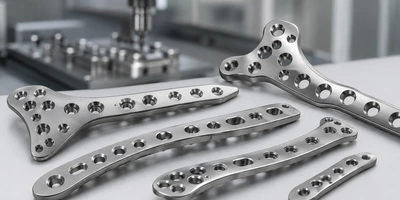

Stainless steel bone plates, fixation devices, connectors, and implant supports may develop rapid tool wear, unstable cutting load, exit burrs, or inconsistent hole surfaces.
Medical stainless steel may work-harden when the drill rubs instead of cutting effectively. Insufficient feed, a worn cutting edge, unstable workholding, poor chip evacuation, or repeated dwell can further increase heat and cutting resistance.
Sharp cutting edges, suitable chip-control geometry, controlled edge strength, stable feed, and sufficient coolant help maintain continuous cutting and reduce work hardening. Controlled breakthrough can also help reduce exit burrs on thin or unsupported sections.
The drill may move away from the intended position when entering curved bone plates, angled implant surfaces, narrow edges, or irregularly shaped fixation components.
Limited contact at initial entry, an inclined surface, excessive tool overhang, insufficient rigidity, high runout, or unsuitable drill-point geometry can cause unstable centering and hole-position variation.
A controlled spotting operation, rigid toolholding, reduced overhang, and a suitable drill-point design help improve entry stability. Flat-bottom or drawing-based custom drills may be required for highly angled, interrupted, or irregular entry surfaces.
Small screw holes, locating holes, guide holes, and precision features in spinal and trauma components may show diameter variation, poor position accuracy, premature drill breakage, or inconsistent hole quality.
Small-diameter drills have limited rigidity and are highly sensitive to spindle runout, holder condition, tool overhang, unstable workholding, incorrect cutting parameters, and poor chip evacuation.
Precision-ground micro carbide drills, low-runout toolholding, short working lengths, controlled feed, and stable chip removal help maintain hole size and position. Drill geometry and coating should be selected according to the material and drilling depth.
Blind holes, stepped holes, screw-seat features, countersink preparation, and combined-diameter holes may show inconsistent depth, shoulder position, bottom shape, or dimensional accuracy.
Multiple drilling operations, repeated tool changes, drill-point allowance, tool deflection, and accumulated positioning errors can affect the relationship between different hole features.
Flat-bottom, step, chamfer, and drawing-based custom carbide drills can combine multiple features into fewer machining operations. This helps improve depth control, shoulder consistency, concentricity, and production efficiency.
Common drilling applications include fixation screw holes, locking-hole preparation, locating holes, angled holes, through holes, countersink preparation, and small precision features in titanium or stainless steel plates.

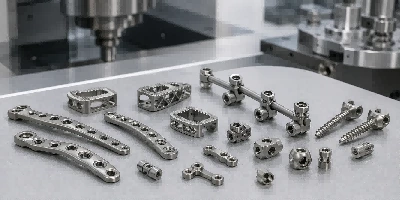

Typical components include spinal fixation plates, cages, connectors, rod-related components, implant supports, and small locking parts containing screw holes, locating holes, angled holes, and close-tolerance features.

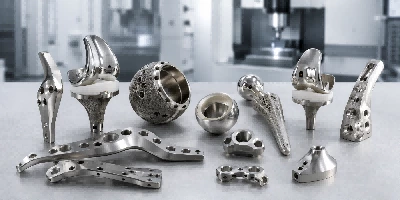

Typical applications include joint components, implant interfaces, mounting holes, locating holes, blind holes, alignment features, and precision holes in titanium or cobalt-chromium components.

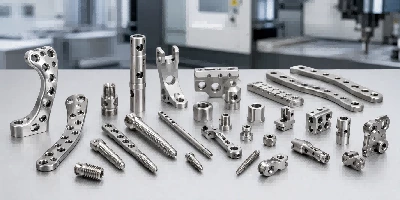

Common applications include implant supports, fixation connectors, locking devices, brackets, sleeves, bushings, guide elements, and drawing-based trauma components containing small, stepped, blind, or combined hole structures.
Micro carbide drills, standard carbide drills, flat-bottom drills, step drills, and drawing-based custom carbide drills.
For general screw holes, locating holes, mounting holes, through holes, blind holes, and threaded-hole preparation in orthopedic plates and implant components.
For small-diameter screw holes, guide holes, locating holes, and close-tolerance features in spinal implants, trauma fixation parts, and compact orthopedic components.
For deeper blind holes, titanium components, small passages, and applications where chip evacuation and cutting-heat control are critical.
For angled-entry holes, stepped holes, flat-bottom features, combined screw-hole structures, special diameters, and drawing-based orthopedic tooling requirements.
| INFORMATION | WHY IT MATTERS |
|---|---|
| Component drawing | Confirms hole geometry, entry angle, step features, tolerances, curved surfaces, and special requirements. |
| Workpiece material and hardness | Helps determine drill geometry, carbide grade, coating direction, edge preparation, and cutting parameters. |
| Hole diameter, depth, and type | Defines drill size, working length, depth-to-diameter ratio, and blind- or through-hole requirements. |
| Tolerance and surface finish | Helps evaluate dimensional accuracy, hole quality, and finishing requirements. |
| Machine, holder, and coolant conditions | Helps assess runout, rigidity, coolant pressure, and chip-evacuation stability. |
| Current problem and production target | Clarifies tool wear, burrs, chip packing, deviation, breakage, tool-life, or efficiency targets. |
Review the component drawing, workpiece material, hole structure, machine conditions, and current drilling problem.
Select a suitable standard drill series or develop a custom drill based on hole depth, tolerance, entry conditions, and machining requirements.
Produce the drill with controlled geometry, edge preparation, coating selection, and multi-stage inspection to support consistent quality.
Support sample testing, specification confirmation, and stable repeat production after the drill solution is approved.
Walter 5-axis grinding supports stable drill-point geometry, flute consistency, diameter accuracy, and shank concentricity.
Controlled edge preparation helps improve cutting-edge consistency, coating adhesion, wear resistance, and tool-life stability.
Coating selection is matched to the workpiece material and drilling conditions to improve wear resistance, heat control, and cutting stability.
HELICHECK PLUS and 150× / 300× visual inspection help verify dimensions, cutting edges, coating appearance, and overall tool condition.
