Minimally invasive and endoscopic parts contain guide holes, cross holes, axial holes, mounting holes, blind holes, stepped holes, threaded-hole preparation, and other miniature precision features.
Small diameters, thin walls, curved surfaces, long slender components, and limited chip space increase the risks of drill deflection, burr formation, part deformation, and unstable chip evacuation. Stainless steel may also create work hardening and rapid tool wear when cutting conditions are unstable.
Landun CNC Tool provides standard and custom carbide drill solutions based on component drawings, materials, hole dimensions, wall thickness, tolerances, coolant conditions, and production requirements.
Endoscopic components, guide sleeves, miniature mechanisms, connectors, and catheter-related metal parts may contain very small holes with strict diameter, position, straightness, and surface-quality requirements.
Hole-size variation, poor position accuracy, unstable surface finish, drill deviation, or premature micro-drill breakage may occur during repeated production.
Small-diameter carbide drills have limited rigidity and are highly sensitive to spindle runout, holder condition, excessive working length, unstable component support, unsuitable parameters, and restricted chip evacuation.
Even minor tool deflection can significantly affect hole position and dimensional consistency in miniature parts.
Precision-ground micro carbide drills, low-runout toolholding, short working lengths, rigid fixturing, controlled feed, and reliable chip removal help maintain stable hole dimensions.
Drill geometry, flute design, edge preparation, and coating should be selected according to the workpiece material, hole diameter, and drilling depth.
Endoscopic sleeves, instrument housings, catheter-related metal parts, small tubes, and lightweight connectors may have thin walls or unsupported exit surfaces.
Drilling these components may produce exit burrs, wall deformation, edge tearing, local collapse, or inconsistent hole shape.
Thin sections provide limited resistance to drilling force. Worn cutting edges, excessive feed near breakthrough, poor component support, high runout, or unsuitable drill-point geometry may push material outward instead of cutting it cleanly.
Limited clamping space may further reduce component rigidity.
Sharp cutting edges, suitable drill-point geometry, stable internal or external support, controlled breakthrough feed, and low-runout toolholding help reduce burrs and deformation.
Short, rigid drills are preferred where the component structure and hole depth permit.

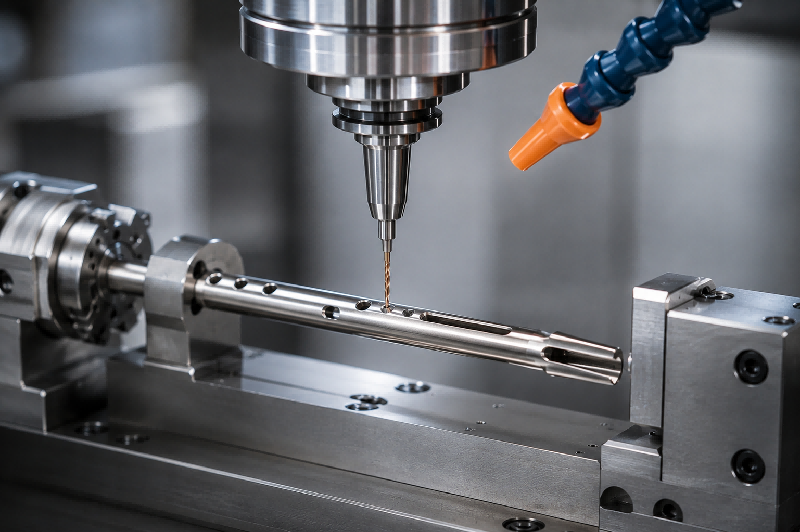

Instrument shafts, guiding components, long sleeves, endoscopic mechanisms, and catheter-related metal parts may contain deep axial holes, blind passages, or long internal features.
These applications may experience chip congestion, cutting-heat accumulation, drill deviation, poor hole straightness, and unstable drilling depth.
As drilling depth increases, chips must travel farther through the drill flutes. Small hole diameters, limited flute space, insufficient coolant delivery, unsuitable drilling cycles, and excessive runout can restrict chip evacuation.
Long drills are also more sensitive to deflection and uneven cutting loads.
Internal-coolant carbide drills help deliver coolant closer to the cutting edge and move chips through long flutes.
Accurate pilot holes, suitable flute geometry, controlled entry and withdrawal, stable coolant pressure, and rigid machine conditions improve deep-hole stability.
Cylindrical sleeves, shafts, connectors, instrument housings, and tubular parts may require drilling on curved external surfaces or breaking into existing axial passages.
The drill may walk during entry or experience uneven cutting loads during cross-hole breakthrough, causing position error, edge damage, or hole distortion.
Initial drill contact on a curved surface is limited and unbalanced. Excessive tool overhang, insufficient fixturing, high runout, or unsuitable point geometry can reduce entry stability.
When the drill enters an existing passage, one cutting edge may lose support before the other, creating impact and deflection.
Carbide spot drills, rigid component support, reduced tool overhang, controlled feed, and suitable drill-point geometry improve entry stability.
Special cross-hole drills, flat-bottom drills, or drawing-based custom drills may be required for interrupted breakthrough conditions.
Endoscopic connectors, guide sleeves, miniature housings, instrument interfaces, and compact mechanisms may require stepped holes, flat-bottom holes, screw-seat features, countersink preparation, or several concentric diameters.
Variation between related features may affect assembly fit, component positioning, sealing, movement, and functional consistency.
Separate drilling and finishing tools increase the number of positioning operations and may create accumulated dimensional errors.
Tool deflection, drill-point allowance, and inconsistent depth control can also affect step diameter, shoulder position, bottom shape, and concentricity.
Step drills, flat-bottom drills, chamfer drills, and combined custom carbide drills can machine multiple related features in fewer operations.
This helps improve concentricity, shoulder consistency, depth control, feature alignment, and production efficiency.

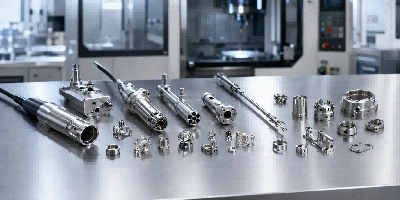

Typical components include endoscopic housings, distal-end structures, optical support parts, instrument interfaces, mounting components, and compact enclosures containing locating holes, assembly holes, guide holes, and small precision features.

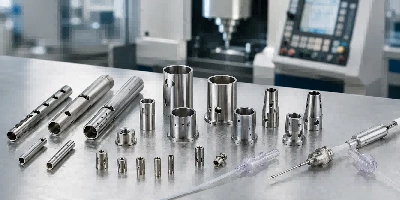

Common applications include guide sleeves, catheter connectors, small tubular parts, positioning sleeves, guiding inserts, and transition components containing cross holes, axial holes, locating holes, and assembly features.

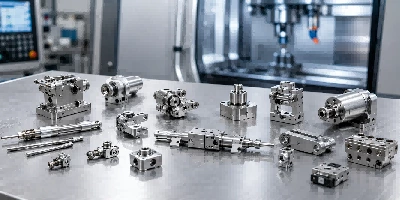

Typical components include small joints, actuation parts, locking mechanisms, control components, compact linkages, miniature shafts, and precision interfaces containing pivot holes, locating holes, blind holes, and stepped features.

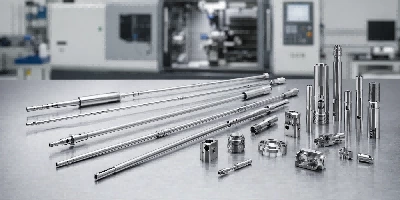

Typical applications include instrument shafts, connectors, extensions, sleeves, small housings, tubular components, and compact structural parts containing axial holes, cross holes, deep passages, and mounting features.
For general mounting holes, locating holes, assembly holes, through holes, blind holes, and threaded-hole preparation in endoscopic and minimally invasive instrument components.
For small guide holes, cross holes, pivot holes, locating holes, and miniature precision features requiring low runout and stable dimensional control.
For long sleeves, instrument shafts, guiding components, tubular parts, and components containing deep axial holes or extended internal passages.
For special diameters, stepped holes, flat-bottom holes, curved-surface entry, cross-hole breakthrough, combined features, and drawing-based medical components.
| INFORMATION | WHY IT MATTERS |
|---|---|
| Component drawing | Confirms hole geometry, entry angle, step features, tolerances, curved surfaces, and special requirements. |
| Workpiece material and hardness | Helps determine drill geometry, carbide grade, coating direction, edge preparation, and cutting parameters. |
| Hole diameter, depth, and type | Defines drill size, working length, depth-to-diameter ratio, and blind- or through-hole requirements. |
| Tolerance and surface finish | Helps evaluate dimensional accuracy, hole quality, and finishing requirements. |
| Machine, holder, and coolant conditions | Helps assess runout, rigidity, coolant pressure, and chip-evacuation stability. |
| Current problem and production target | Clarifies tool wear, burrs, chip packing, deviation, breakage, tool-life, or efficiency targets. |
Review the component drawing, workpiece material, hole structure, machine conditions, and current drilling problem.
Select a suitable standard drill series or develop a custom drill based on hole depth, tolerance, entry conditions, and machining requirements.
Produce the drill with controlled geometry, edge preparation, coating selection, and multi-stage inspection to support consistent quality.
Support sample testing, specification confirmation, and stable repeat production after the drill solution is approved.
Walter 5-axis grinding supports stable drill-point geometry, flute consistency, diameter accuracy, and shank concentricity.
Controlled edge preparation helps improve cutting-edge consistency, coating adhesion, wear resistance, and tool-life stability.
Coating selection is matched to the workpiece material and drilling conditions to improve wear resistance, heat control, and cutting stability.
HELICHECK PLUS and 150× / 300× visual inspection help verify dimensions, cutting edges, coating appearance, and overall tool condition.
