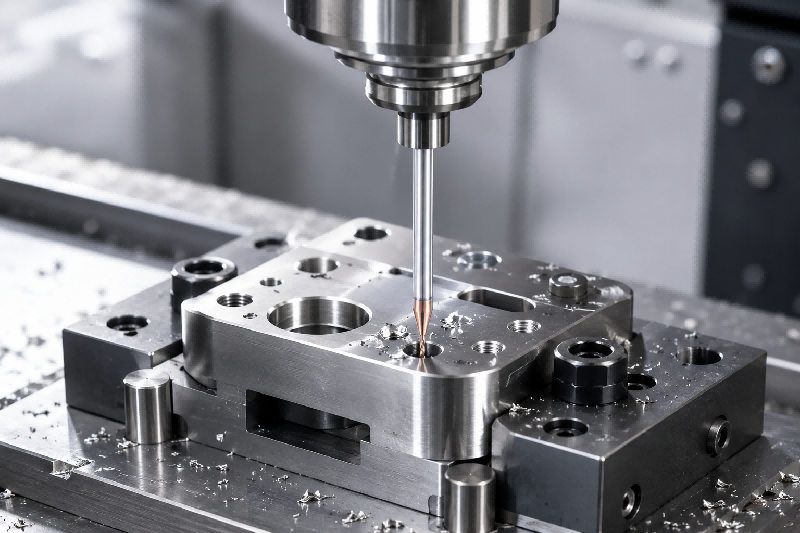

Medical equipment and precision assemblies contain mounting holes, locating holes, sensor holes, threaded-hole preparation, blind holes, stepped holes, cross holes, and other close-tolerance features.
Equipment housings and thin-wall parts require controlled burr formation and deformation, while robotic and positioning components demand repeatable hole location and assembly alignment. Small sensor housings, connectors, bushings, and compact mechanisms also require low runout, stable drill entry, and consistent hole dimensions.
Landun CNC Tool provides standard and custom carbide drill solutions based on component drawings, workpiece materials, hole dimensions, tolerances, coolant conditions, machine setup, and production requirements.
Medical equipment frames, robotic-surgery components, positioning parts, brackets, and compact mechanisms often contain multiple mounting, locating, and alignment holes.
Variation in hole position, diameter, or feature relationship can affect component installation, movement accuracy, fastener engagement, and final assembly consistency.
Spindle runout, unstable workholding, tool deflection, excessive overhang, inconsistent drill entry, and repeated repositioning may create hole-location and dimensional variation.
When several related holes are machined across one component or production batch, small errors may accumulate and affect assembly alignment.
Rigid toolholding, controlled drill geometry, short tool overhang, stable entry, and consistent cutting parameters help improve hole-position repeatability.
Spot drills and drawing-based custom drills can also support accurate entry and reduce the number of separate machining operations.
Medical equipment housings, instrument covers, sensor enclosures, lightweight brackets, and compact structural parts may contain thin walls or unsupported exit surfaces.
Drilling these features may produce exit burrs, wall deformation, edge breakout, inconsistent hole shape, or damage around nearby surfaces.
Thin sections provide limited resistance to drilling force. Worn cutting edges, excessive feed near breakthrough, unstable component support, high runout, or unsuitable drill-point geometry may push or deform the material instead of cutting it cleanly.
Sharp cutting edges, stable component support, controlled breakthrough feed, suitable point geometry, and low-runout toolholding help reduce exit burrs and deformation.
Short, rigid drills and application-specific cutting parameters are preferred when the component structure allows.
Sensor housings, connectors, positioning parts, miniature mechanisms, and compact medical assemblies may contain small locating holes, mounting holes, cross holes, and precision interface features.
These holes may show diameter variation, position error, poor surface quality, or premature micro-drill breakage.
Small-diameter carbide drills have limited rigidity and are sensitive to spindle runout, holder condition, excessive working length, unstable clamping, unsuitable cutting parameters, and restricted chip evacuation.
A small amount of drill deflection can significantly affect hole size and location in compact components.
Precision-ground micro carbide drills, low-runout toolholding, short working lengths, stable workholding, controlled feed, and reliable chip removal help maintain consistent hole dimensions.
Drill geometry, flute design, coating, and working length should be selected according to the material and hole depth.
Bushings, sleeves, positioning shafts, robotic components, compact housings, and equipment interfaces may contain deep axial holes, blind passages, cross holes, or intersecting features.
These applications may experience chip congestion, cutting-heat accumulation, drill deviation, poor straightness, edge damage, or unstable breakthrough into an existing passage.
As drilling depth increases, chips must travel farther through the flutes. Insufficient coolant delivery, unsuitable drilling cycles, excessive runout, inaccurate pilot holes, or limited machine rigidity can reduce chip-evacuation stability.
When the drill enters an existing cross hole, uneven cutting-edge engagement may create impact and deflection.
Internal-coolant drills help deliver coolant to the cutting edge and move chips through long flutes. Accurate pilot holes, stable coolant pressure, controlled entry and breakthrough, rigid workholding, and suitable drill geometry improve drilling stability.
Equipment housings, locating components, sensor interfaces, bushings, brackets, and assembled mechanisms may require stepped holes, flat-bottom holes, screw-seat features, countersink preparation, or multiple concentric diameters.
Variation between related features can affect fastener seating, component positioning, bearing or bushing fit, and final assembly accuracy.
Separate tools and repeated positioning operations may create accumulated dimensional errors. Tool deflection and drill-point allowance can also affect shoulder position, bottom depth, concentricity, and the relationship between multiple diameters.
Step drills, flat-bottom drills, chamfer drills, and combined custom carbide drills can machine multiple features in fewer operations.
This helps improve concentricity, shoulder consistency, depth control, feature alignment, and production efficiency.

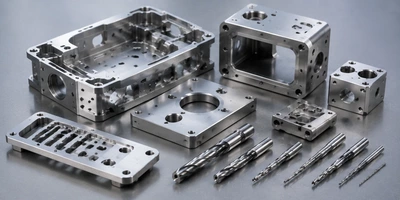

Typical components include equipment housings, structural frames, instrument covers, support plates, mounting blocks, and protective enclosures containing mounting holes, locating holes, threaded-hole preparation, and assembly features.

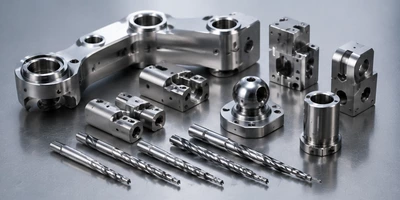

Common applications include robotic joints, positioning blocks, guide components, support arms, mounting interfaces, alignment features, and compact motion-control parts.

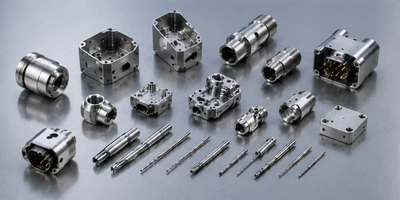

Typical components include sensor housings, connectors, terminal supports, optical or electronic interfaces, compact enclosures, and precision mounting components containing small holes and close-tolerance features.

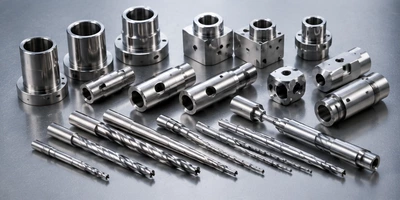

Common applications include bushings, sleeves, brackets, locating pins, small shafts, bearing supports, mounting components, and compact mechanisms containing axial, cross, stepped, and assembly holes.
For mounting holes, locating holes, assembly holes, blind holes, through holes, and threaded-hole preparation in medical equipment and structural components.
For small sensor holes, connector holes, locating holes, cross holes, and precision features requiring low runout and consistent dimensional control.
For bushings, sleeves, shafts, positioning components, and equipment parts containing deep axial holes, blind passages, or long internal features.
For special diameters, stepped holes, flat-bottom holes, combined features, angled entry, cross-hole breakthrough, and drawing-based medical equipment components.
| INFORMATION | WHY IT MATTERS |
|---|---|
| Component drawing | Confirms hole geometry, entry angle, step features, tolerances, curved surfaces, and special requirements. |
| Workpiece material and hardness | Helps determine drill geometry, carbide grade, coating direction, edge preparation, and cutting parameters. |
| Hole diameter, depth, and type | Defines drill size, working length, depth-to-diameter ratio, and blind- or through-hole requirements. |
| Tolerance and surface finish | Helps evaluate dimensional accuracy, hole quality, and finishing requirements. |
| Machine, holder, and coolant conditions | Helps assess runout, rigidity, coolant pressure, and chip-evacuation stability. |
| Current problem and production target | Clarifies tool wear, burrs, chip packing, deviation, breakage, tool-life, or efficiency targets. |
Review the component drawing, workpiece material, hole structure, machine conditions, and current drilling problem.
Select a suitable standard drill series or develop a custom drill based on hole depth, tolerance, entry conditions, and machining requirements.
Produce the drill with controlled geometry, edge preparation, coating selection, and multi-stage inspection to support consistent quality.
Support sample testing, specification confirmation, and stable repeat production after the drill solution is approved.
Walter 5-axis grinding supports stable drill-point geometry, flute consistency, diameter accuracy, and shank concentricity.
Controlled edge preparation helps improve cutting-edge consistency, coating adhesion, wear resistance, and tool-life stability.
Coating selection is matched to the workpiece material and drilling conditions to improve wear resistance, heat control, and cutting stability.
HELICHECK PLUS and 150× / 300× visual inspection help verify dimensions, cutting edges, coating appearance, and overall tool condition.
