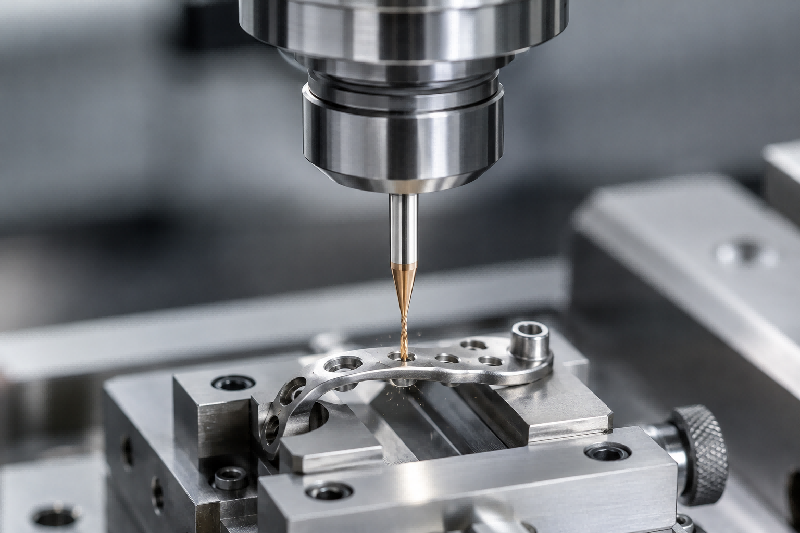

Dental and maxillofacial components contain screw holes, locating holes, guide holes, angled holes, blind holes, stepped holes, threaded-hole preparation, and other miniature precision features.
Titanium requires effective heat, adhesion, and chip control, while stainless steel components may develop work hardening and exit burrs. Small diameters, curved surfaces, thin guide sleeves, limited wall thickness, and close positional tolerances also increase the importance of stable drill entry, low runout, controlled breakthrough, and reliable chip evacuation.
Landun CNC Tool provides standard and custom carbide drill solutions based on component drawings, material grade, hole dimensions, tolerance, coolant conditions, and production requirements.
Dental implant components, abutments, guide sleeves, fixation parts, and miniature instrument components may contain very small holes with tight diameter, position, and concentricity requirements.
Hole-size variation, poor position accuracy, unstable surface quality, or premature drill breakage may occur during repeated production.
Small-diameter carbide drills have limited rigidity and are highly sensitive to spindle runout, holder condition, excessive working length, unstable workholding, incorrect parameters, and restricted chip evacuation.
Even minor drill deflection or runout can affect hole diameter and position in miniature components.
Precision-ground micro carbide drills, low-runout toolholding, short working lengths, stable workholding, controlled feed, and reliable chip removal help maintain hole size and position.
Drill geometry, flute design, edge preparation, and coating should be selected according to the material, hole diameter, and drilling depth.
Titanium dental implant components, abutments, fixation plates, and surgical accessories may produce high cutting temperatures, material adhesion, unstable chip formation, rapid edge wear, or inconsistent hole dimensions.
Titanium concentrates cutting heat near the cutting edge and may adhere to the drill when coolant delivery, chip evacuation, cutting parameters, or tool geometry are unsuitable.
Excessive runout, worn cutting edges, repeated dwell, and poor chip control can further increase cutting load and reduce drill life.
Sharp material-specific geometry, controlled edge preparation, suitable coating, stable feed, and effective coolant delivery help reduce heat and adhesion.
Internal coolant may be considered for deeper or blind holes where chip evacuation and temperature control are more difficult.
Dental abutments, maxillofacial fixation parts, surgical guide components, and irregularly shaped instrument parts may require drilling on curved, inclined, narrow, or interrupted surfaces.
The drill may move away from the intended position during entry, causing hole-position error, uneven engagement, or cutting-edge damage.
Limited initial contact, angled entry, insufficient component support, excessive tool overhang, high runout, or unsuitable drill-point geometry can prevent stable centering.
Miniature components also provide limited space for rigid clamping and tool support.
A controlled spotting operation, rigid fixturing, short tool overhang, low runout, and suitable drill-point geometry help improve entry stability.
Flat-bottom or drawing-based custom drills may be required for highly angled, interrupted, or restricted entry conditions.
Surgical guide sleeves, small tubular parts, thin fixation plates, miniature housings, and compact dental components may develop exit burrs, edge deformation, wall distortion, or inconsistent hole quality.
Thin walls and unsupported exit surfaces have limited resistance to drilling force. A worn cutting edge, unstable workholding, excessive feed near breakthrough, high runout, or unsuitable point geometry may push material outward instead of cutting it cleanly.
Sharp cutting edges, suitable drill-point geometry, stable component support, controlled breakthrough feed, and low-runout toolholding help reduce exit burrs and component deformation.
Short, rigid drills are preferred where component geometry permits.
Dental implant parts, abutments, guide sleeves, instrument interfaces, and fixation components may require stepped holes, blind holes, screw-seat features, countersink preparation, flat-bottom holes, or multiple concentric diameters.
Variation between related hole features may affect component location, fastener engagement, assembly fit, and dimensional consistency.
Multiple tools and repeated positioning operations can create accumulated errors. Drill-point allowance may affect blind-hole depth, while tool deflection can influence step diameter, shoulder position, and concentricity.
Step drills, flat-bottom drills, chamfer drills, and combined custom carbide drills can machine multiple features in fewer operations.
This helps improve concentricity, shoulder position, depth control, feature consistency, and production efficiency.

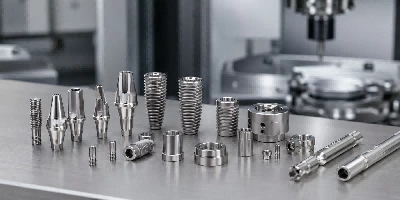

Typical applications include screw-access holes, locating holes, blind holes, threaded-hole preparation, stepped holes, and miniature internal features in titanium implant components and abutments.

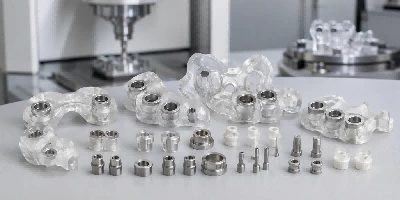

Common components include surgical guide sleeves, positioning sleeves, guiding inserts, locating components, and compact guiding structures containing precision guide holes and assembly features.

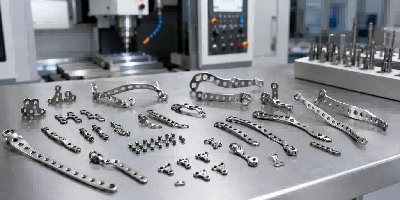

Typical applications include fixation plates, small brackets, connectors, supports, locking parts, screw holes, angled holes, locating holes, and countersink preparation in titanium or stainless steel components.
Micro carbide drills, standard carbide drills, carbide spot drills, step drills, and custom carbide drills.

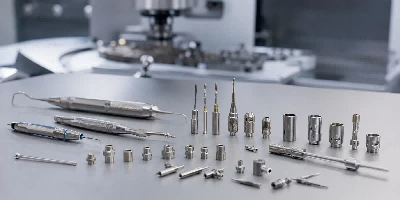

Common applications include dental instrument components, drivers, handles, small shafts, sleeves, bushings, connectors, and precision accessories containing assembly holes, axial holes, cross holes, and combined features.
For general through holes, blind holes, assembly holes, locating holes, screw holes, and threaded-hole preparation in titanium and stainless steel components.
For small-diameter screw holes, guide holes, locating holes, and close-tolerance features in spinal implants, trauma fixation parts, and compact orthopedic components.
For deeper blind holes, long axial features, instrument shafts, sleeves, and components requiring improved coolant delivery and chip evacuation.
For special diameters, stepped holes, flat-bottom holes, angled entry, combined features, special working lengths, and drawing-based dental component requirements.
| INFORMATION | WHY IT MATTERS |
|---|---|
| Component drawing | Confirms hole geometry, entry angle, step features, tolerances, curved surfaces, and special requirements. |
| Workpiece material and hardness | Helps determine drill geometry, carbide grade, coating direction, edge preparation, and cutting parameters. |
| Hole diameter, depth, and type | Defines drill size, working length, depth-to-diameter ratio, and blind- or through-hole requirements. |
| Tolerance and surface finish | Helps evaluate dimensional accuracy, hole quality, and finishing requirements. |
| Machine, holder, and coolant conditions | Helps assess runout, rigidity, coolant pressure, and chip-evacuation stability. |
| Current problem and production target | Clarifies tool wear, burrs, chip packing, deviation, breakage, tool-life, or efficiency targets. |
Review the component drawing, workpiece material, hole structure, machine conditions, and current drilling problem.
Select a suitable standard drill series or develop a custom drill based on hole depth, tolerance, entry conditions, and machining requirements.
Produce the drill with controlled geometry, edge preparation, coating selection, and multi-stage inspection to support consistent quality.
Support sample testing, specification confirmation, and stable repeat production after the drill solution is approved.
Walter 5-axis grinding supports stable drill-point geometry, flute consistency, diameter accuracy, and shank concentricity.
Controlled edge preparation helps improve cutting-edge consistency, coating adhesion, wear resistance, and tool-life stability.
Coating selection is matched to the workpiece material and drilling conditions to improve wear resistance, heat control, and cutting stability.
HELICHECK PLUS and 150× / 300× visual inspection help verify dimensions, cutting edges, coating appearance, and overall tool condition.
