Mobile and industrial hydraulic components contain mounting holes, threaded ports, control passages, cross holes, deep blind holes, stepped connections, sensor ports, and multi-face fluid channels.
Heavy-duty control blocks require accurate passage connection and reliable chip evacuation, while mounting interfaces and port features demand repeatable position, depth, and diameter. Cast, forged, and machined surfaces may also create unstable drill entry, internal burrs, interrupted cutting, and variable tool wear.
Landun CNC Tool provides standard and custom carbide drill solutions based on component drawings, materials, passage layouts, tolerances, coolant conditions, machines, and production requirements.

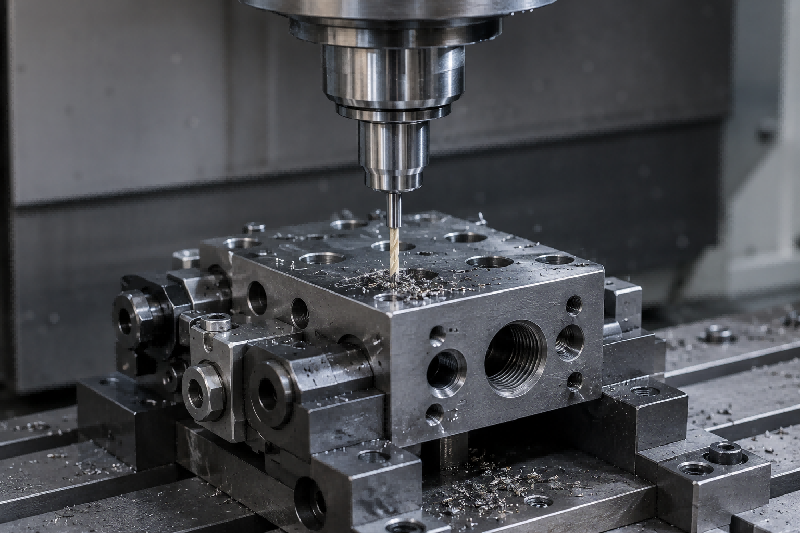

Mobile hydraulic control blocks, industrial valve units, power-unit components, and machine-control manifolds may contain multiple passages drilled from different faces.
These holes must connect accurately inside the component. Drill deviation, incorrect depth, or positional variation may result in incomplete intersections, excessive breakthrough, reduced remaining wall thickness, or inconsistent fluid-channel geometry.
Tool deflection, inaccurate entry, excessive working length, fixture variation, spindle runout, and inconsistent component positioning can affect the final hole path.
Small entry errors become more significant as drilling depth increases, especially when long holes must connect with passages drilled from another face.
Accurate spotting or pilot drilling, rigid workholding, short tool overhang, low-runout holders, stable drill geometry, and controlled cutting parameters help improve hole-position repeatability.
For long passages, a suitable pilot hole and controlled deep-hole drilling procedure help maintain entry alignment and hole straightness.
Control blocks, steering units, brake-control components, hydraulic power units, and industrial manifolds often contain intersecting oil passages.
When a drill breaks into an existing bore, uneven cutting loads may cause drill deflection, edge chipping, enlarged intersections, hanging chips, or internal burrs that are difficult to inspect and remove.
One cutting edge may lose material support before the other during breakthrough. Excessive feed, long tool overhang, high runout, insufficient component support, or unsuitable point geometry can increase cutting-force imbalance.
Rigid toolholding, low runout, controlled breakthrough feed, suitable drill-point geometry, and stable component clamping help reduce impact during passage intersection.
Through-tool coolant and a planned drilling sequence improve chip evacuation. Custom drill geometry may be considered for repeated cross-hole applications with difficult internal-edge requirements.
Heavy-duty valve blocks, industrial manifolds, hydraulic power-unit components, and equipment control blocks may contain long oil channels, deep blind holes, or small-diameter internal passages.
These holes may experience chip congestion, cutting-heat accumulation, drill deviation, poor straightness, unstable depth, or premature drill breakage.
As drilling depth increases, chips must travel farther through the drill flutes. Insufficient coolant pressure, unsuitable drilling cycles, excessive runout, inaccurate pilot holes, or limited machine rigidity can restrict chip evacuation.
Long drills are also more sensitive to deflection and uneven cutting loads.
Internal-coolant carbide drills deliver coolant toward the cutting zone and help move chips through long flutes.
Accurate pilot holes, suitable flute geometry, stable coolant pressure, controlled entry and withdrawal, and rigid machine conditions help improve hole straightness, passage consistency, and tool life.
Mobile and industrial hydraulic components may contain threaded ports, plug holes, sensor ports, sealing diameters, counterbores, mounting holes, stepped connections, and flat-bottom features.
Variation in diameter, shoulder position, depth, or concentricity may affect tapping, fitting installation, sealing-component position, sensor assembly, and connection reliability.
Using several separate tools increases the number of positioning and tool-change operations.
Tool deflection, drill-point allowance, unstable entry, inconsistent tool length, and accumulated positioning errors may affect the relationship between the pilot hole, thread preparation, counterbore, step, and sealing feature.
Spot drills improve entry accuracy, while step, flat-bottom, chamfer, and combined custom carbide drills can produce several related features in fewer operations.
This helps improve feature concentricity, shoulder position, depth control, thread preparation, and production efficiency.
Mobile and industrial hydraulic components may be manufactured from cast iron, carbon steel, alloy steel, stainless steel, or aluminum alloys.
Cast skins, forged surfaces, interrupted entry, hardness variation, and different chip characteristics can create unstable cutting loads, rapid tool wear, built-up edge, burrs, or inconsistent hole quality.
Each workpiece material produces different cutting forces, chip forms, heat conditions, and wear mechanisms.
Cast iron can be abrasive, alloy steel creates higher cutting loads, stainless steel may work-harden, and aluminum may adhere to unsuitable cutting edges or flute surfaces.
Material-specific drill geometry, carbide grade, edge preparation, coating, flute design, and coolant strategy help maintain stable drilling performance.
Spotting or surface preparation may be required when entering rough cast, forged, inclined, or interrupted surfaces.
Typical components include excavator valve blocks, loader control blocks, lifting-system manifolds, steering components, brake-control parts, travel-control units, and attachment-related hydraulic blocks.
Common applications include tractor hydraulic blocks, harvesting-equipment components, forklift control blocks, lifting-system parts, steering units, hose interfaces, and compact fluid-control assemblies.

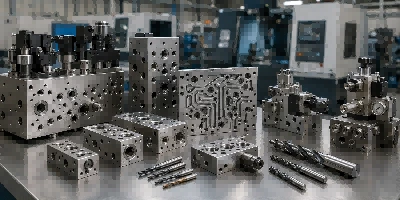

Typical components include hydraulic power-unit manifolds, machine-tool valve blocks, press-control components, lubrication-system blocks, pressure-control units, and industrial fluid-distribution parts.

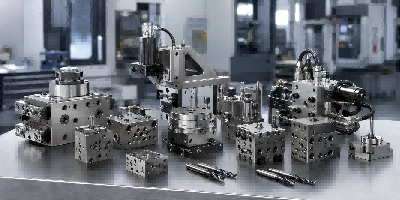

Common applications include hydraulic clamping blocks, fixture components, automated-machine actuators, robotic hydraulic units, compact manifolds, positioning components, and custom fluid-control assemblies.
For mounting holes, locating holes, threaded-hole preparation, control ports, blind holes, through holes, and general drilling in mobile and industrial hydraulic components.
For small control passages, pilot holes, sensor ports, lubrication holes, pressure-test holes, and compact features requiring low runout and stable dimensional control.
For long oil passages, deep blind holes, multi-face fluid channels, and heavy-duty control blocks requiring stable coolant delivery and chip evacuation.
For special diameters, stepped ports, angled holes, flat-bottom features, cross-hole breakthrough, combined operations, and drawing-based hydraulic parts.
| INFORMATION | WHY IT MATTERS |
|---|---|
| Component drawing | Confirms hole geometry, entry angle, step features, tolerances, curved surfaces, and special requirements. |
| Workpiece material and hardness | Helps determine drill geometry, carbide grade, coating direction, edge preparation, and cutting parameters. |
| Hole diameter, depth, and type | Defines drill size, working length, depth-to-diameter ratio, and blind- or through-hole requirements. |
| Tolerance and surface finish | Helps evaluate dimensional accuracy, hole quality, and finishing requirements. |
| Machine, holder, and coolant conditions | Helps assess runout, rigidity, coolant pressure, and chip-evacuation stability. |
| Current problem and production target | Clarifies tool wear, burrs, chip packing, deviation, breakage, tool-life, or efficiency targets. |
Review the component drawing, workpiece material, hole structure, machine conditions, and current drilling problem.
Select a suitable standard drill series or develop a custom drill based on hole depth, tolerance, entry conditions, and machining requirements.
Produce the drill with controlled geometry, edge preparation, coating selection, and multi-stage inspection to support consistent quality.
Support sample testing, specification confirmation, and stable repeat production after the drill solution is approved.
Walter 5-axis grinding supports stable drill-point geometry, flute consistency, diameter accuracy, and shank concentricity.
Controlled edge preparation helps improve cutting-edge consistency, coating adhesion, wear resistance, and tool-life stability.
Coating selection is matched to the workpiece material and drilling conditions to improve wear resistance, heat control, and cutting stability.
HELICHECK PLUS and 150× / 300× visual inspection help verify dimensions, cutting edges, coating appearance, and overall tool condition.
