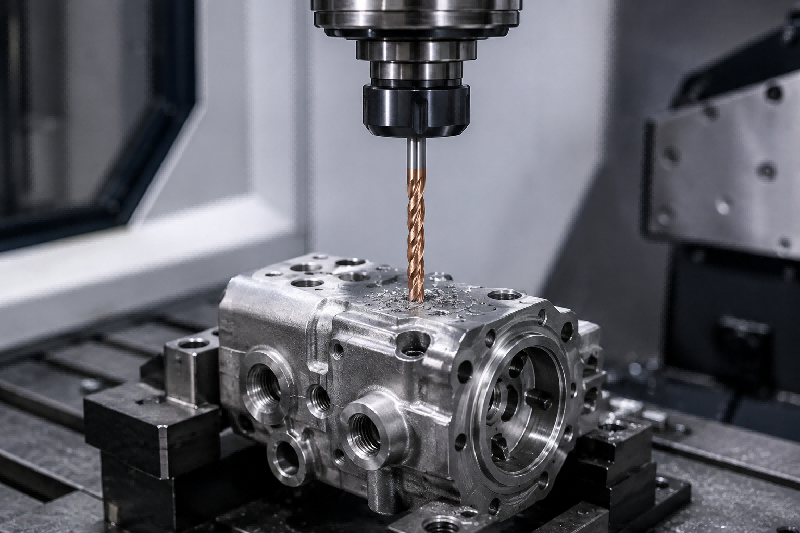

Hydraulic pump and motor housings contain mounting holes, bearing-support features, lubrication holes, pressure passages, threaded ports, blind holes, cross holes, and stepped connection features.
Deep or intersecting passages require reliable chip evacuation and controlled breakthrough, while bearing-related and mounting holes demand repeatable position and dimensional consistency. Cast iron, steel, and aluminum housings also produce different chip forms, cutting loads, wear conditions, and burr risks.
Landun CNC Tool provides standard and custom carbide drill solutions based on component drawings, workpiece materials, hole geometry, tolerances, coolant conditions, machine setup, and production requirements.
Pump bodies, motor housings, end covers, and pressure-related components may contain long lubrication holes, deep blind passages, or small internal channels.
These holes may experience chip congestion, rising cutting temperature, drill deviation, poor hole straightness, unstable depth, or premature tool breakage.
As drilling depth increases, chips must travel farther through the drill flutes. Small passage diameters, insufficient coolant delivery, unsuitable drilling cycles, excessive runout, or limited machine rigidity can restrict chip evacuation.
Packed chips increase friction and may damage both the cutting edge and the internal hole surface.
Internal-coolant carbide drills deliver coolant directly toward the cutting zone and help move chips through long flutes.
Accurate pilot holes, suitable flute geometry, stable coolant pressure, controlled entry and withdrawal, and appropriate drilling cycles help improve passage straightness and drilling stability.
Pump and motor housings contain mounting holes, locating holes, cover holes, bearing-support-related holes, and fastener patterns that must remain accurately positioned relative to the housing axis and assembly surfaces.
Hole-position variation can affect housing alignment, end-cover installation, bearing support, fastener engagement, and final assembly consistency.
Unstable drill entry, fixture movement, excessive tool overhang, spindle runout, tool deflection, and inconsistent component positioning may create hole-location or diameter variation.
Large housings with multiple holes machined from different faces are especially sensitive to accumulated positioning errors.
Rigid workholding, short tool overhang, low-runout holders, stable drill geometry, controlled entry, and consistent cutting parameters help improve positional repeatability.
Spot drills or pilot drills can improve entry accuracy before drilling critical mounting and locating features.
Lubrication channels, pressure passages, control holes, and internal fluid routes may intersect with previously drilled holes.
When the drill breaks into an existing passage, uneven cutting loads may cause edge chipping, drill deflection, enlarged intersections, hanging chips, or internal burrs.
One cutting edge may lose material support before the other during breakthrough. Excessive feed, high runout, insufficient component rigidity, long tool overhang, or unsuitable drill-point geometry can increase the resulting impact.
Chips may also remain trapped inside connected channels.
Rigid toolholding, controlled breakthrough feed, suitable point geometry, low runout, and stable component support help reduce cutting-force imbalance.
Through-tool coolant and a planned drilling sequence improve chip removal from intersecting passages. Custom geometry may be required for repeated cross-hole applications.
Hydraulic pump and motor housings may contain threaded connections, inlet and outlet ports, plug holes, sensor ports, sealing-related features, counterbores, and stepped connection holes.
Variation in diameter, shoulder position, concentricity, or depth can affect tapping, fitting installation, sealing-component position, and assembly consistency.
Multiple separate tools increase the number of tool changes and positioning operations. Tool deflection, drill-point allowance, unstable entry, and inconsistent depth control can affect related hole features.
Spot drills improve entry accuracy, while step, chamfer, flat-bottom, and combined custom carbide drills can produce related features in fewer machining operations.
Hydraulic pump and motor housings may be manufactured from cast iron, carbon steel, alloy steel, stainless steel, or aluminum alloys.
Using one drill geometry and cutting strategy for all these materials may result in poor chip control, built-up edge, rapid wear, exit burrs, unstable hole quality, or inconsistent tool life.
Each workpiece material produces different chips, cutting forces, heat conditions, and wear mechanisms.
Cast iron can create abrasive wear, steel increases cutting load, stainless steel may work-harden, and aluminum can adhere to unsuitable cutting edges or flute surfaces.
Material-specific cutting geometry, carbide grade, coating, edge preparation, flute design, and coolant strategy help maintain stable drilling performance.
The drill specification should be matched to the material, hardness, hole depth, machine conditions, coolant method, and production target.

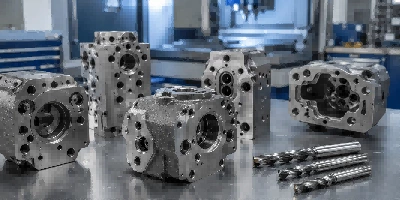

Typical drilling applications include mounting holes, lubrication passages, pressure channels, blind holes, threaded ports, locating holes, and cross passages in gear, vane, piston, and other hydraulic pump bodies.

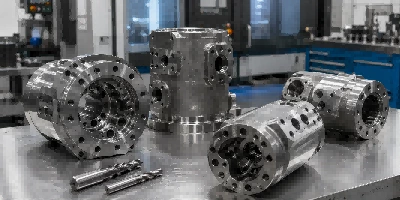

Common applications include motor housings, mounting interfaces, connection ports, drainage passages, lubrication holes, threaded holes, and internal fluid-transfer features.

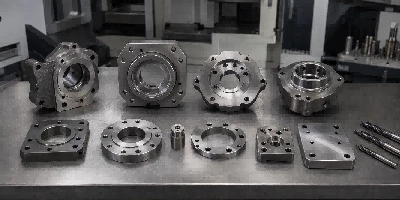

Typical components include pump covers, motor end covers, bearing-support plates, locating components, mounting interfaces, and connection plates containing fastener holes, locating holes, lubrication holes, and stepped features.

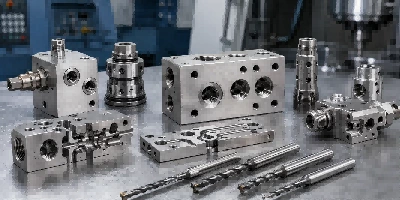

Common applications include lubrication holes, drain passages, pressure ports, sensor ports, plug holes, control channels, threaded connections, and fluid-transfer features.
For mounting holes, locating holes, threaded-hole preparation, blind holes, through holes, ports, and general production drilling in hydraulic pump and motor housings.
For mounting holes, locating holes, threaded-hole preparation, blind holes, through holes, ports, and general production drilling in hydraulic pump and motor housings.
For long lubrication passages, deep blind holes, axial channels, drainage holes, and pressure passages requiring reliable coolant delivery and chip evacuation.
For stepped ports, flat-bottom holes, special diameters, cross holes, combined features, curved entry surfaces, and drawing-based housing requirements.
| INFORMATION | WHY IT MATTERS |
|---|---|
| Component drawing | Confirms hole geometry, entry angle, step features, tolerances, curved surfaces, and special requirements. |
| Workpiece material and hardness | Helps determine drill geometry, carbide grade, coating direction, edge preparation, and cutting parameters. |
| Hole diameter, depth, and type | Defines drill size, working length, depth-to-diameter ratio, and blind- or through-hole requirements. |
| Tolerance and surface finish | Helps evaluate dimensional accuracy, hole quality, and finishing requirements. |
| Machine, holder, and coolant conditions | Helps assess runout, rigidity, coolant pressure, and chip-evacuation stability. |
| Current problem and production target | Clarifies tool wear, burrs, chip packing, deviation, breakage, tool-life, or efficiency targets. |
Review the component drawing, workpiece material, hole structure, machine conditions, and current drilling problem.
Select a suitable standard drill series or develop a custom drill based on hole depth, tolerance, entry conditions, and machining requirements.
Produce the drill with controlled geometry, edge preparation, coating selection, and multi-stage inspection to support consistent quality.
Support sample testing, specification confirmation, and stable repeat production after the drill solution is approved.
Walter 5-axis grinding supports stable drill-point geometry, flute consistency, diameter accuracy, and shank concentricity.
Controlled edge preparation helps improve cutting-edge consistency, coating adhesion, wear resistance, and tool-life stability.
Coating selection is matched to the workpiece material and drilling conditions to improve wear resistance, heat control, and cutting stability.
HELICHECK PLUS and 150× / 300× visual inspection help verify dimensions, cutting edges, coating appearance, and overall tool condition.
