Hydraulic fittings, flanges, and connectors contain axial passages, angled holes, threaded-port preparation, cross holes, stepped holes, counterbores, mounting holes, and sealing-related features.
Curved or inclined surfaces may cause unstable drill entry, while intersecting passages can produce internal burrs and uneven breakthrough loads. Port diameter, step position, depth, and concentricity must also remain consistent to support subsequent threading, assembly, and sealing operations.
Landun CNC Tool provides standard and custom carbide drill solutions based on component drawings, materials, hole structures, tolerances, coolant conditions, and production requirements.
Elbows, tees, hose fittings, pipe connectors, and cylindrical connection parts may require drilling on curved, inclined, forged, or irregular entry surfaces.
The drill may walk away from the intended position, engage unevenly, or experience cutting-edge damage during entry, affecting the final hole location and the relationship between connected passages.
Curved and angled surfaces provide limited initial contact at the drill point. Excessive tool overhang, spindle runout, unstable component support, unsuitable point geometry, or high initial feed can further reduce entry stability.
Compact fitting shapes may also make rigid and balanced clamping difficult.
Accurate spotting, rigid fixturing, short tool overhang, low-runout toolholding, and controlled entry feed help improve drill guidance.
A suitable spot drill, flat-bottom drill, or drawing-based custom point geometry may be required for highly inclined or irregular entry surfaces.
Hydraulic fittings and connectors often contain threaded ports, sealing diameters, counterbores, chamfers, spot faces, plug holes, and fitting interfaces.
Variation in pilot-hole diameter, counterbore depth, shoulder position, or feature concentricity may affect subsequent threading, fitting installation, sealing-element location, and assembly consistency.
Using several separate tools increases the number of tool changes and positioning operations.
Drill-point allowance, unstable entry, tool deflection, inconsistent depth control, and accumulated positioning errors can affect the relationship between the pilot hole, thread preparation, counterbore, and sealing feature.
Spot drills improve entry accuracy, while step, flat-bottom, chamfer, and combined custom carbide drills can produce multiple related features in fewer operations.
This helps improve concentricity, shoulder position, counterbore depth, thread-preparation consistency, and machining efficiency.
Critical sealing faces may still require a subsequent finishing operation according to the component drawing and surface requirement.
Adapters, couplings, reducers, flange connectors, and transition fittings may contain multiple internal diameters, stepped passages, blind shoulders, relief sections, and changing flow-channel sizes.
Inconsistent step diameter, shoulder position, concentricity, or depth may affect fluid-path continuity, component wall thickness, assembly fit, and subsequent machining operations.
Separate drills used for each diameter can create accumulated position and depth errors.
Tool deflection, spindle runout, uneven entry, inaccurate pilot holes, and inconsistent tool-length control may also cause misalignment between related passage diameters.
Accurate pilot drilling, rigid toolholding, controlled working length, and stable cutting parameters help establish a consistent initial passage.
Step drills and combined custom carbide drills can machine several diameters and shoulders in one tool path, reducing tool changes and improving feature alignment.
Elbows, tees, branch connectors, hose fittings, and special adapters may contain intersecting passages or radial holes that enter an existing axial bore.
Uneven cutting loads during breakthrough may cause drill deflection, edge chipping, enlarged intersections, hanging chips, or internal burrs that are difficult to inspect and remove.
One cutting edge may lose material support before the other as the drill enters the existing passage.
Excessive breakthrough feed, high runout, long tool overhang, insufficient workpiece support, or unsuitable point geometry can increase cutting-force imbalance and internal edge deformation.
Rigid toolholding, controlled breakthrough feed, suitable drill-point geometry, low runout, and stable component clamping help reduce impact during passage intersection.
Through-tool coolant and a planned drilling sequence improve chip removal. Custom drill geometry may be considered for repeated cross-hole production with demanding internal-edge requirements.
Secondary deburring may still be required where the drawing specifies extremely strict internal-edge conditions.
Compact connectors, control fittings, sensor adapters, lubrication fittings, and small fluid-transfer parts may contain narrow axial holes, small cross passages, or deeper internal channels.
These holes may experience chip congestion, cutting-heat accumulation, diameter variation, poor surface quality, or premature drill breakage.
Small-diameter drills provide limited flute space and have lower rigidity. Excessive runout, unsuitable working length, insufficient coolant delivery, unstable feed, or poor chip evacuation can increase cutting load.
Different materials, including carbon steel, alloy steel, stainless steel, and aluminum, also create different chip forms and wear conditions.
Precision-ground carbide drills, low-runout holders, suitable working lengths, stable cutting parameters, and effective coolant delivery help maintain chip evacuation and dimensional consistency.
Drill geometry, coating, flute design, and edge preparation should be matched to the workpiece material, diameter, drilling depth, and production target.

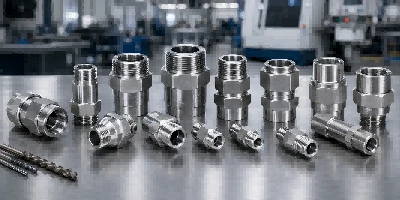

Typical components include straight adapters, reducing adapters, couplings, unions, extension fittings, and transition connectors containing axial passages, threaded ports, stepped bores, and sealing-related features.

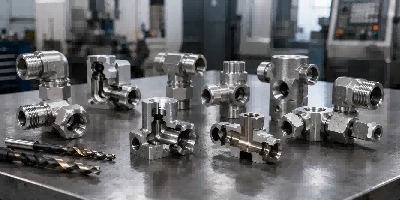

Common applications include elbow fittings, tee connectors, branch fittings, angled adapters, and directional connection bodies containing inclined holes, cross passages, and intersecting fluid channels.

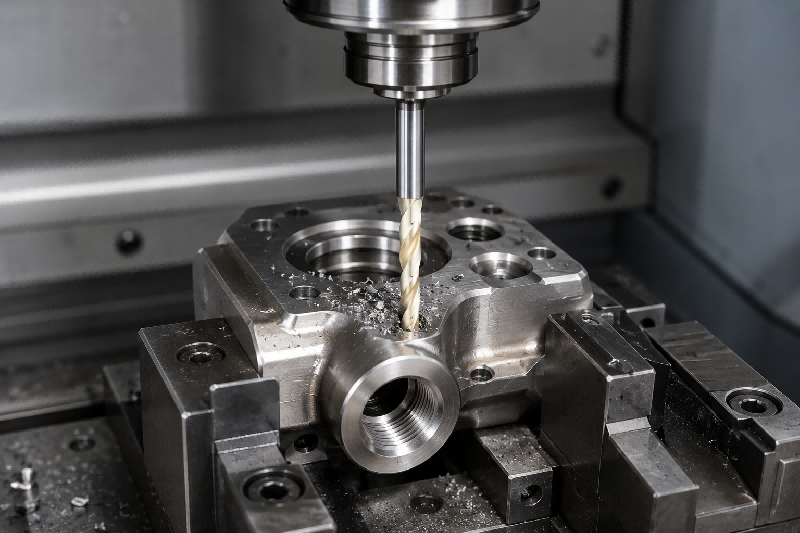

Typical components include hydraulic flanges, port flanges, connection plates, mounting interfaces, pipe flanges, and equipment connectors containing mounting-hole patterns, fluid ports, threaded holes, counterbores, and sealing features.

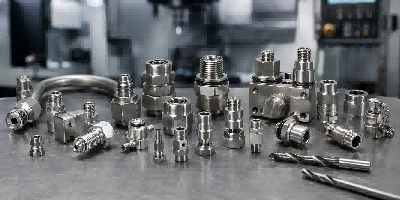

Typical applications include hose-end fittings, pipe connectors, bulkhead fittings, sensor adapters, lubrication fittings, test ports, and compact fluid interfaces.
For axial passages, mounting holes, threaded-hole preparation, blind holes, through holes, and general drilling in hydraulic fittings, flanges, and connectors.
For small control passages, lubrication holes, sensor ports, test holes, cross holes, and compact fluid features requiring low runout and stable dimensional control.
For long axial passages, deeper blind holes, extended connector bodies, and special fittings requiring reliable coolant delivery and chip evacuation.
For angled holes, stepped passages, sealing counterbores, flat-bottom features, special diameters, cross holes, and combined machining operations.
| INFORMATION | WHY IT MATTERS |
|---|---|
| Component drawing | Confirms hole geometry, entry angle, step features, tolerances, curved surfaces, and special requirements. |
| Workpiece material and hardness | Helps determine drill geometry, carbide grade, coating direction, edge preparation, and cutting parameters. |
| Hole diameter, depth, and type | Defines drill size, working length, depth-to-diameter ratio, and blind- or through-hole requirements. |
| Tolerance and surface finish | Helps evaluate dimensional accuracy, hole quality, and finishing requirements. |
| Machine, holder, and coolant conditions | Helps assess runout, rigidity, coolant pressure, and chip-evacuation stability. |
| Current problem and production target | Clarifies tool wear, burrs, chip packing, deviation, breakage, tool-life, or efficiency targets. |
Review the component drawing, workpiece material, hole structure, machine conditions, and current drilling problem.
Select a suitable standard drill series or develop a custom drill based on hole depth, tolerance, entry conditions, and machining requirements.
Produce the drill with controlled geometry, edge preparation, coating selection, and multi-stage inspection to support consistent quality.
Support sample testing, specification confirmation, and stable repeat production after the drill solution is approved.
Walter 5-axis grinding supports stable drill-point geometry, flute consistency, diameter accuracy, and shank concentricity.
Controlled edge preparation helps improve cutting-edge consistency, coating adhesion, wear resistance, and tool-life stability.
Coating selection is matched to the workpiece material and drilling conditions to improve wear resistance, heat control, and cutting stability.
HELICHECK PLUS and 150× / 300× visual inspection help verify dimensions, cutting edges, coating appearance, and overall tool condition.
