Hydraulic cylinders and actuator components contain pin holes, mounting holes, oil ports, cross holes, blind holes, long axial passages, threaded-hole preparation, and stepped connection features.
Long or small passages require stable coolant delivery and chip evacuation, while clevises, rod ends, and mounting interfaces demand repeatable hole position and alignment. Curved entry surfaces, thin walls, cross-hole breakthrough, and different workpiece materials may also increase burr formation, drill deflection, tool wear, and component deformation.
Landun CNC Tool provides standard and custom carbide drill solutions based on drawings, materials, hole geometry, tolerances, coolant conditions, and production requirements.

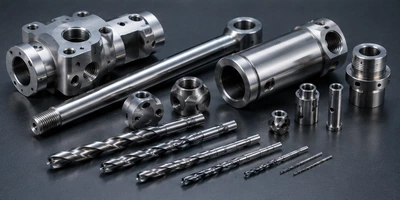

Actuator housings, piston rods, guiding components, end caps, and long cylinder-related parts may contain deep axial holes, blind passages, lubrication channels, or long internal fluid-transfer features.
These holes may experience chip congestion, cutting-heat accumulation, drill deviation, poor straightness, unstable depth, or premature tool breakage.
As the drilling depth increases, chips must travel farther through the drill flutes. Small diameters, insufficient coolant pressure, unsuitable drilling cycles, excessive runout, inaccurate pilot holes, or limited machine rigidity can restrict chip evacuation.
Internal-coolant carbide drills deliver coolant closer to the cutting edge and help move chips through long flutes.
Accurate pilot holes, suitable flute geometry, stable coolant pressure, controlled entry and withdrawal, short tool overhang, and rigid machine conditions help improve hole straightness and drilling stability.

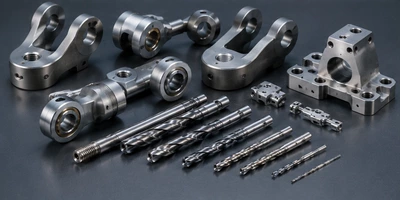

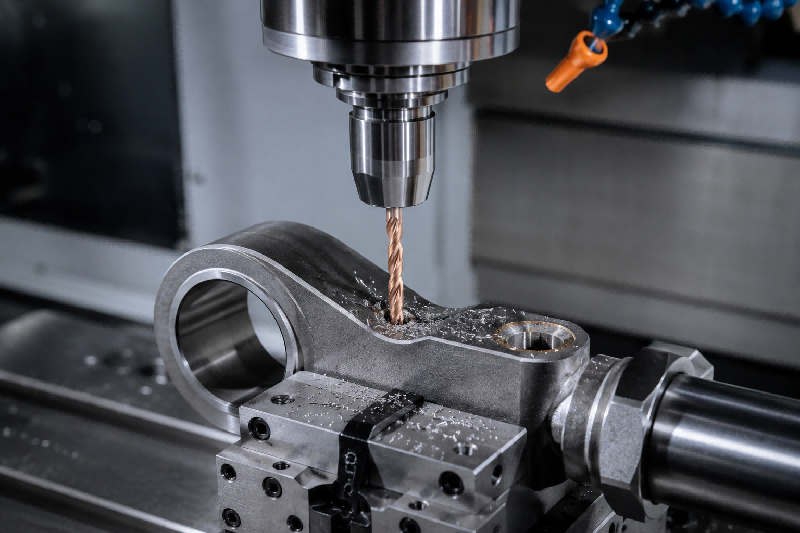

Clevises, rod ends, mounting lugs, pivot brackets, and actuator joints contain pin holes that must remain accurately positioned and aligned with mating components.
Hole-position variation, drill deflection, poor entry stability, or inconsistent diameter can affect pin installation, joint movement, component alignment, and final actuator assembly.
Clevis features may contain two separated walls that must be drilled in alignment. Long tool engagement, interrupted cutting between the two walls, unstable clamping, spindle runout, and drill deflection can create position or diameter variation.
Rigid workholding, accurate spotting, short tool overhang, low-runout holders, controlled drill geometry, and stable cutting parameters help improve pin-hole position.
A pilot drill, guide bushing, or drawing-based custom drill may be considered when two related holes must remain closely aligned.

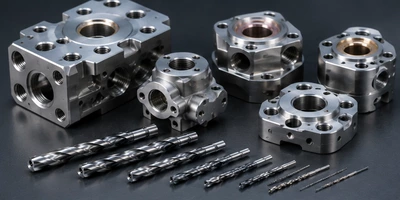

Cylinder heads, end caps, gland housings, actuator bodies, and fluid-transfer components may contain oil ports, cross holes, intersecting passages, and holes that break into an existing chamber.
Uneven cutting loads during breakthrough may cause drill deflection, cutting-edge chipping, enlarged intersections, internal burrs, or trapped chips.
One cutting edge may lose material support before the other as the drill enters an existing passage or chamber.
Excessive breakthrough feed, high runout, insufficient workpiece support, long tool overhang, or unsuitable drill-point geometry can increase impact and produce irregular internal edges.
Rigid toolholding, controlled breakthrough feed, suitable drill-point geometry, low runout, and stable component fixturing help reduce cutting-force imbalance.
Through-tool coolant and a planned drilling sequence improve chip evacuation. Custom drill geometry may be required for repeated cross-hole or chamber-breakthrough applications.

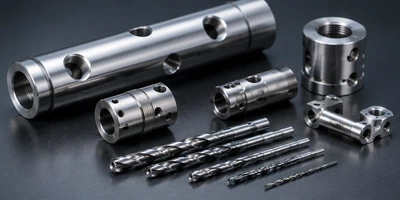

Cylinder tubes, lightweight actuator housings, curved rod-end parts, thin-wall sleeves, and compact end components may develop drill walking, exit burrs, edge breakout, wall distortion, or inconsistent hole shape.
A curved surface provides limited initial contact for the drill point, while thin sections have limited resistance to drilling force.
A worn cutting edge, unstable component support, excessive feed near breakthrough, high runout, or unsuitable point geometry may push the material outward instead of cutting it cleanly.
Spot drilling, rigid component support, sharp cutting edges, suitable point geometry, controlled breakthrough feed, and low-runout toolholding help improve entry stability and reduce deformation.
Short, rigid drills are preferred where the hole depth and component geometry allow.
Dental implant parts, abutments, guide sleeves, instrument interfaces, and fixation components may require stepped holes, blind holes, screw-seat features, countersink preparation, flat-bottom holes, or multiple concentric diameters.
Variation between related hole features may affect component location, fastener engagement, assembly fit, and dimensional consistency.
Using several separate tools increases tool changes and positioning operations. Tool deflection, drill-point allowance, unstable entry, and inconsistent depth control may affect step diameter, shoulder position, bottom depth, and concentricity.
Spot, step, flat-bottom, chamfer, and combined custom carbide drills can produce multiple related features in fewer machining operations.
This helps improve feature concentricity, shoulder consistency, depth control, thread preparation, and production efficiency.
Typical drilling applications include mounting holes, tie-rod holes, oil ports, threaded-hole preparation, blind holes, locating holes, stepped connections, and internal passages.
Common applications include inlet and outlet ports, cross holes, lubrication holes, sensor holes, mounting features, and fluid connections drilled into cylindrical or thin-wall components.
Typical components include clevises, rod ends, pivot brackets, mounting lugs, hinge components, and actuator joints containing pin holes, locating holes, fastener holes, and lubrication features.
Typical applications include actuator bodies, guiding sleeves, piston rods, shafts, extension components, support housings, and compact motion-control parts containing axial holes, cross holes, blind passages, and mounting features.
For mounting holes, pin holes, locating holes, threaded-hole preparation, blind holes, through holes, and general production drilling in cylinder and actuator components.
For small lubrication holes, sensor holes, control passages, cross holes, and compact precision features requiring low runout and stable dimensional control.
For long axial passages, deep blind holes, piston-rod features, actuator shafts, guiding components, and internal fluid-transfer channels.
For aligned pin holes, curved-surface entry, cross-hole breakthrough, stepped ports, flat-bottom features, special diameters, and combined operations.
| INFORMATION | WHY IT MATTERS |
|---|---|
| Component drawing | Confirms hole geometry, entry angle, step features, tolerances, curved surfaces, and special requirements. |
| Workpiece material and hardness | Helps determine drill geometry, carbide grade, coating direction, edge preparation, and cutting parameters. |
| Hole diameter, depth, and type | Defines drill size, working length, depth-to-diameter ratio, and blind- or through-hole requirements. |
| Tolerance and surface finish | Helps evaluate dimensional accuracy, hole quality, and finishing requirements. |
| Machine, holder, and coolant conditions | Helps assess runout, rigidity, coolant pressure, and chip-evacuation stability. |
| Current problem and production target | Clarifies tool wear, burrs, chip packing, deviation, breakage, tool-life, or efficiency targets. |
Review the component drawing, workpiece material, hole structure, machine conditions, and current drilling problem.
Select a suitable standard drill series or develop a custom drill based on hole depth, tolerance, entry conditions, and machining requirements.
Produce the drill with controlled geometry, edge preparation, coating selection, and multi-stage inspection to support consistent quality.
Support sample testing, specification confirmation, and stable repeat production after the drill solution is approved.
Walter 5-axis grinding supports stable drill-point geometry, flute consistency, diameter accuracy, and shank concentricity.
Controlled edge preparation helps improve cutting-edge consistency, coating adhesion, wear resistance, and tool-life stability.
Coating selection is matched to the workpiece material and drilling conditions to improve wear resistance, heat control, and cutting stability.
HELICHECK PLUS and 150× / 300× visual inspection help verify dimensions, cutting edges, coating appearance, and overall tool condition.
