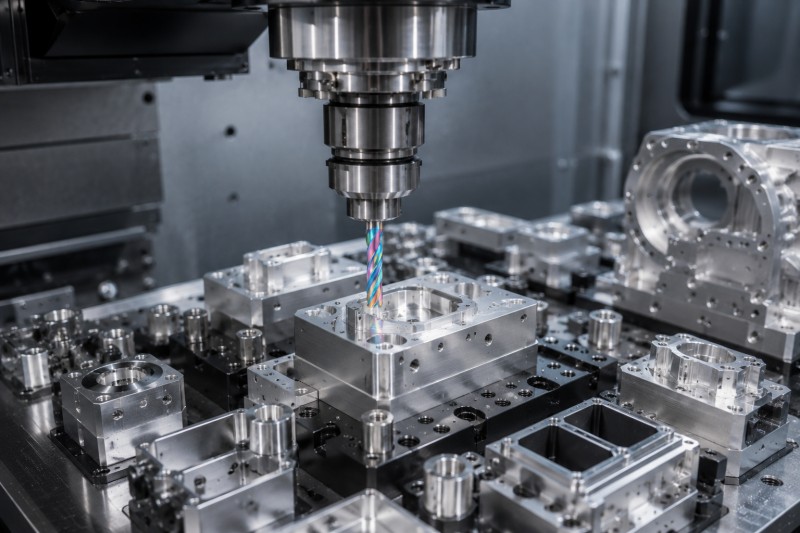

Aerospace avionics, sensor, and precision components contain mounting holes, locating holes, terminal holes, cable-interface holes, pressure ports, small internal passages, threaded-hole preparation, blind holes, stepped holes, and alignment-related features.
These applications are commonly found in avionics enclosures, flight-control electronic housings, sensor bodies, instrument housings, connector shells, interface blocks, optical-sensor components, sleeves, bushings, miniature shafts, and compact precision assemblies.
Workpiece materials may include aerospace aluminum alloys, stainless steel, titanium alloys, alloy steel, copper alloys, and brass. Small component dimensions, thin walls, close hole spacing, limited clamping areas, tight tolerances, and small-diameter holes increase the risk of drill deflection, micro-drill breakage, exit burrs, component deformation, chip packing, and inconsistent hole position.
Landun CNC Tool supports drill selection and custom carbide drill development based on the component drawing, workpiece material, hole diameter and depth, wall thickness, tolerance, entry condition, machine runout, coolant method, and current machining problem.
Sensor bodies, connector components, instrument parts, and compact avionics housings may experience micro-drill breakage, drill deflection, unstable hole diameter, poor straightness, or inconsistent tool life.
Small-diameter carbide drills are highly sensitive to spindle runout, toolholder accuracy, excessive overhang, unstable entry, machine vibration, and chip congestion. Even small setup errors can create uneven cutting loads and damage the cutting edge.
Low-runout toolholding, short tool overhang, stable drill-point geometry, rigid workholding, and controlled cutting parameters help improve micro-hole stability. Spotting may also be used when the entry surface does not provide reliable centering.
Avionics enclosures, sensor housings, connector shells, and lightweight aluminum components may develop exit burrs, edge tearing, local vibration, or wall deformation during breakthrough.
Thin walls provide limited support at the hole exit. Excessive feed, weak clamping, unsuitable point geometry, long tool overhang, or uneven remaining wall thickness can increase breakthrough force and distort the component.
Sharp cutting geometry, controlled feed near breakthrough, stable component support, low runout, and short tool overhang help reduce cutting force and exit burr formation. Custom drill points can be developed for thin-wall or hollow-section features.
Connector bodies, sensor housings, instrument components, sleeves, and precision assemblies may contain closely spaced mounting, locating, terminal, pin, and alignment holes requiring stable position and dimensional relationships.
Small part movement, fixture variation, spindle runout, uneven entry surfaces, accumulated tool wear, and repeated tool changes can affect hole spacing, concentricity, and alignment between related features.
Stable drill-point geometry, precise toolholding, rigid workholding, consistent edge preparation, and controlled tool wear help improve repeatability. Step and combination drills can reduce tool changes and maintain the relationship between connected diameters.
RECOMMENDED DRILL SERIES
Small pressure ports, sensor passages, axial holes, blind mounting holes, compact fluid features, and deep precision holes may experience chip packing, rising cutting load, poor bottom quality, drill deviation, or premature breakage.
Small flute space limits chip capacity. Increasing drilling depth, insufficient coolant delivery, material adhesion, excessive feed, or chips remaining at the bottom of a blind hole can interrupt normal chip evacuation.
Suitable flute geometry, stable coolant or air delivery, controlled drilling parameters, and optimized drilling cycles help improve chip removal. Deeper holes may require through-tool coolant, an accurate pilot hole, and a controlled entry and withdrawal procedure.
Aluminum and copper-alloy connector components may cause built-up edge and chip adhesion, while stainless steel, titanium, and alloy-steel sensor parts may create rapid wear, work hardening, or cutting-edge chipping.
Different aerospace materials require different cutting-edge sharpness, flute finish, carbide grade, edge preparation, coating, and cutting parameters. A general-purpose drill may not provide stable results across several material groups.
Material-specific geometry, polished flutes for non-ferrous alloys, controlled edge preparation, suitable carbide grades, and application-matched coatings help improve chip flow, reduce adhesion, and increase wear resistance.

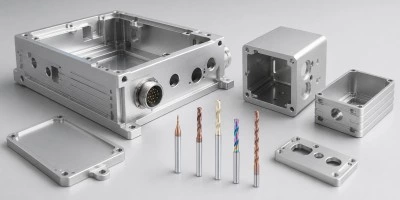

Common drilling applications include mounting holes, locating holes, connector-interface holes, cable-entry holes, threaded-hole preparation, blind holes, ventilation holes, and repeated assembly features.
Typical features include pressure ports, mounting holes, locating holes, small internal passages, cable-interface holes, threaded-hole preparation, blind holes, and sensor-element positioning features.

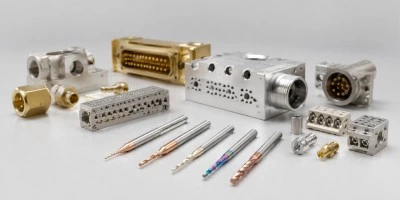

Common applications include terminal holes, pin holes, locating holes, mounting holes, cable-interface features, threaded-hole preparation, and repeated small-diameter patterns in aluminum, stainless steel, brass, or copper-alloy components.

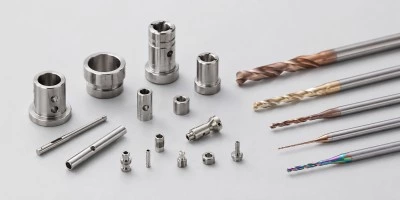

Typical drilling applications include axial holes, radial holes, lubrication holes, cross holes, locating holes, blind holes, stepped internal features, and small precision passages.
For mounting holes, locating holes, connector-interface holes, threaded-hole preparation, blind holes, and general drilling in avionics housings, sensor bodies, connectors, and instrument components.
For terminal holes, sensor passages, pin holes, pressure ports, lubrication holes, vent holes, and other small-diameter precision applications.
For long axial holes, small pressure passages, extended sensor channels, deep sleeve and bushing holes, and other high depth-to-diameter precision features.
For stepped connector holes, flat-bottom blind holes, combined diameters, angled entry, radial holes, cross holes, special lengths, and drawing-based non-standard precision features.
| INFORMATION | WHY IT MATTERS |
|---|---|
| Component drawing | Confirms hole positions, spacing, interface features, step structures, cross holes, tolerances, and special requirements. |
| Workpiece material and condition | Helps determine cutting-edge sharpness, flute finish, carbide grade, edge preparation, coating, and cutting parameters. |
| Component dimensions and wall thickness | Helps evaluate workholding, deformation risk, tool access, breakthrough conditions, and required tool length. |
| Hole diameter, depth, and type | Defines drill size, working length, depth-to-diameter ratio, and blind-, through-, micro-, radial-, or stepped-hole requirements. |
| Part size and clamping condition | Helps assess small-part movement, vibration, allowable tool overhang, and achievable drilling stability. |
| Entry, exit, and cross-hole conditions | Helps evaluate drill walking, curved-surface entry, breakthrough impact, internal burrs, and chip direction. |
| Position, diameter, concentricity, and burr requirements | Helps determine runout limits, entry control, tool geometry, inspection needs, and feature relationships. |
| Machine, holder, coolant, and runout conditions | Helps evaluate whether the setup can support the required micro-hole diameter, accuracy, and chip evacuation. |
| Current machining problem and production target | Clarifies breakage, drill deflection, burrs, chip packing, tool wear, hole variation, tool life, or cycle-time targets. |
Review the component drawing, workpiece material, hole structure, machine conditions, and current drilling problem.
Select a suitable standard drill series or develop a custom drill based on hole depth, tolerance, entry conditions, and machining requirements.
Produce the drill with controlled geometry, edge preparation, coating selection, and multi-stage inspection to support consistent quality.
Support sample testing, specification confirmation, and stable repeat production after the drill solution is approved.
Walter 5-axis grinding supports stable drill-point geometry, flute consistency, diameter accuracy, and shank concentricity.
Controlled edge preparation helps improve cutting-edge consistency, coating adhesion, wear resistance, and tool-life stability.
Coating selection is matched to the workpiece material and drilling conditions to improve wear resistance, heat control, and cutting stability.
HELICHECK PLUS and 150× / 300× visual inspection help verify dimensions, cutting edges, coating appearance, and overall tool condition.
