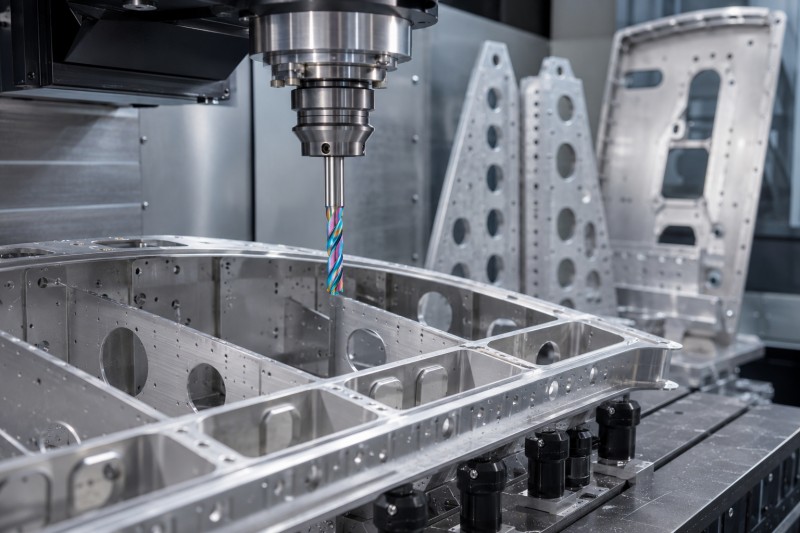

Airframe and wing components contain mounting holes, locating holes, fastener-hole preparation, threaded-hole preparation, pin holes, drainage holes, inspection holes, blind holes, stepped holes, and repeated precision hole patterns.
These applications are commonly found in wing ribs, spars, fuselage frames, bulkheads, support beams, structural brackets, attachment fittings, seat-track components, and machined aluminum structural panels. Materials may include aerospace aluminum alloys, titanium alloys, stainless steel, and high-strength structural steels.
Large component dimensions, thin walls, ribs and pockets, curved or angled entry surfaces, repeated hole layouts, and close positional requirements increase the risk of drill walking, exit burrs, local deformation, chip retention, cutting-edge wear, and inconsistent hole position.
Landun CNC Tool supports drill selection and custom carbide drill development based on the component drawing, workpiece material, hole diameter and depth, wall thickness, tolerance, entry and exit conditions, coolant method, and current machining problem.
Wing ribs, machined structural panels, brackets, frames, and lightweight aluminum components may develop exit burrs, edge tearing, local vibration, or deformation when a drill breaks through a thin wall or internal pocket.
Thin sections provide limited support near the hole exit. Excessive feed, weak workholding, unsuitable drill-point geometry, long tool overhang, or uneven remaining wall thickness can increase breakthrough force and destabilize the component.
Sharp cutting geometry, low-runout toolholding, rigid support, and controlled feed near breakthrough help reduce cutting force and exit burr formation. Application-specific point geometry may also be developed for thin-wall and pocketed structural components.
Wing ribs, spars, fuselage frames, bulkheads, and structural panels often contain repeated mounting holes, locating holes, fastener-hole patterns, and attachment features that must maintain stable position and diameter across a large component.
Large workpiece dimensions, fixture movement, machine-positioning variation, uneven entry surfaces, spindle runout, thermal variation, and accumulated tool wear can affect hole spacing and dimensional consistency.
Stable drill-point geometry, rigid fixturing, low-runout holders, consistent edge preparation, and controlled tool-life management help improve repeated-hole accuracy. A short spotting operation may be used when the entry surface does not provide reliable centering.
Titanium attachment fittings, high-strength brackets, stainless structural parts, and reinforced aerospace components may cause rapid flank wear, cutting-edge chipping, rising cutting load, or unstable hole diameter.
High material strength, low thermal conductivity in titanium, cutting-heat concentration, work-hardening behavior, unsuitable edge preparation, and insufficient coolant delivery can accelerate cutting-edge wear.
Material-specific drill geometry, suitable carbide grades, controlled edge preparation, application-matched coatings, and stable coolant delivery help improve cutting-edge strength and tool-life consistency.
Structural brackets, attachment fittings, ribs, spars, and contoured airframe parts may require drilling on curved surfaces, angled faces, narrow bosses, ribs, or interrupted entry areas.
Uneven initial contact creates unbalanced cutting forces. Excessive tool overhang, spindle runout, limited fixture rigidity, or unsuitable drill-point geometry can cause drill walking, deflection, incorrect hole position, or cutting-edge damage.
A short and rigid spotting operation, stable workholding, low-runout toolholding, and suitable point geometry help improve initial positioning. Flat-bottom or drawing-based custom drills may be more suitable for strongly angled or interrupted entry conditions.
Thick attachment fittings, support blocks, structural joints, spar-related components, and blind mounting features may experience chip packing, rising cutting load, poor hole-wall quality, depth variation, or drill breakage.
Long drilling depth, limited flute capacity, insufficient coolant pressure, unsuitable drilling parameters, excessive runout, or chips remaining at the bottom of a blind hole can interrupt normal chip evacuation.
Through-tool coolant, suitable flute geometry, stable coolant delivery, rigid toolholding, and controlled drilling parameters help move chips away from the cutting edge. Longer holes may require an accurate pilot hole and controlled entry, drilling, breakthrough, and withdrawal.

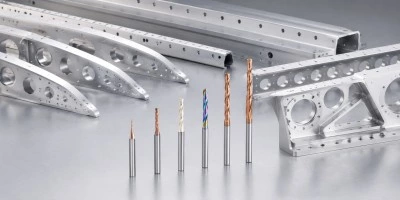

Common drilling applications include mounting holes, locating holes, fastener-hole preparation, threaded-hole preparation, attachment holes, inspection holes, blind holes, and repeated hole patterns in wing ribs, spars, beams, and structural members.

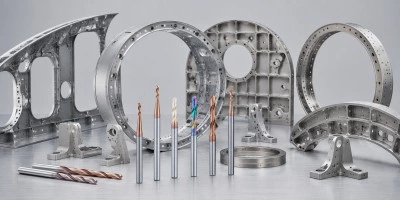

Typical features include assembly holes, locating holes, bracket-mounting holes, fastener-hole preparation, threaded-hole preparation, drainage holes, and repeated connection features in frames, bulkheads, and structural rings.

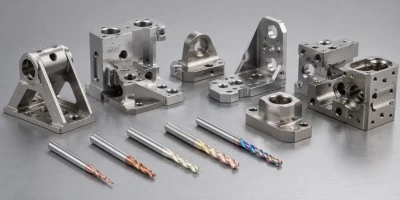

Common applications include mounting holes, pin holes, locating holes, bolt-hole preparation, threaded-hole preparation, blind holes, stepped holes, and combined features in brackets, lugs, fittings, and attachment blocks.

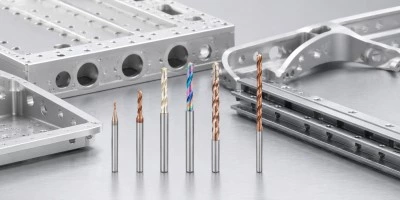

Typical applications include repeated mounting holes, locating holes, drainage holes, cable-routing holes, threaded-hole preparation, small precision holes, and attachment features in machined aluminum panels, seat-track components, and lightweight support structures.
For mounting holes, locating holes, fastener-hole preparation, threaded-hole preparation, blind holes, and general drilling in wing ribs, spars, fuselage frames, bulkheads, brackets, and structural fittings.
For drainage holes, inspection holes, small locating features, compact bracket holes, sensor-related interfaces, and other small-diameter precision applications.
For deep attachment holes, long structural features, thick support blocks, blind passages, and other high depth-to-diameter drilling applications in airframe and wing components.
For angled entry, stepped holes, flat-bottom holes, combined diameters, drilling and chamfering, special lengths, thin-wall breakthrough, and drawing-based non-standard aerospace features.
| INFORMATION | WHY IT MATTERS |
|---|---|
| Component drawing | Confirms hole positions, repeated patterns, structural pockets, entry angles, step features, tolerances, and special requirements. |
| Workpiece material and condition | Helps determine carbide grade, drill geometry, edge preparation, coating, flute finish, and cutting parameters. |
| Component dimensions and wall thickness | Helps evaluate workholding, deformation risk, breakthrough conditions, tool access, and required working length. |
| Hole diameter, depth, and type | Defines drill size, depth-to-diameter ratio, and blind-, through-, micro-, step-, or flat-bottom-hole requirements. |
| Position and diameter tolerances | Helps determine entry control, runout requirements, tool-life limits, finishing allowance, and inspection needs. |
| Entry, exit, and interrupted conditions | Helps assess drill walking, angled entry, thin-wall breakthrough, pocket intersections, and exit-burr risk. |
| Machine, holder, fixture, and coolant conditions | Helps evaluate machine rigidity, spindle runout, component support, coolant delivery, and chip evacuation. |
| Current machining problem and production target | Clarifies burrs, drill deviation, tool wear, chip packing, hole variation, breakage, tool life, or cycle-time targets. |
Review the component drawing, workpiece material, hole structure, machine conditions, and current drilling problem.
Select a suitable standard drill series or develop a custom drill based on hole depth, tolerance, entry conditions, and machining requirements.
Produce the drill with controlled geometry, edge preparation, coating selection, and multi-stage inspection to support consistent quality.
Support sample testing, specification confirmation, and stable repeat production after the drill solution is approved.
Walter 5-axis grinding supports stable drill-point geometry, flute consistency, diameter accuracy, and shank concentricity.
Controlled edge preparation helps improve cutting-edge consistency, coating adhesion, wear resistance, and tool-life stability.
Coating selection is matched to the workpiece material and drilling conditions to improve wear resistance, heat control, and cutting stability.
HELICHECK PLUS and 150× / 300× visual inspection help verify dimensions, cutting edges, coating appearance, and overall tool condition.
