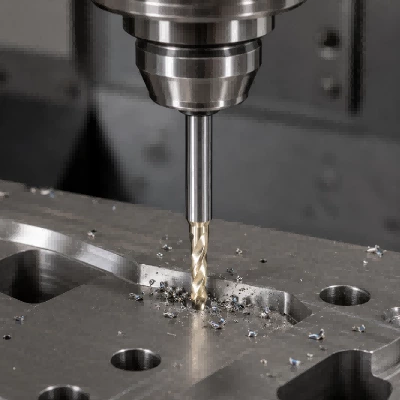

Designed for stable medium-depth drilling in titanium alloys and difficult-to-machine materials, this 5xD carbide drill combines imported submicron carbide, HSR118 heat-resistant coating, optimized point geometry, and reinforced flute structure to control cutting heat, reduce chip adhesion, improve chip evacuation, and maintain reliable hole quality in titanium alloy drilling.
The 5xD carbide drill for titanium alloy is developed for medium-depth hole machining where cutting heat, chip adhesion, tool wear, and chip evacuation are major challenges. Compared with 3xD short-hole drilling, 5xD titanium alloy drilling requires better heat control, stronger edge stability, and smoother chip removal over a longer drilling depth.
Titanium alloys such as Ti-6Al-4V, TC4, and Grade 5 titanium have low thermal conductivity and high material toughness. During drilling, heat is concentrated around the cutting edge, while chips are more likely to adhere to the tool surface. Without a suitable drill geometry and coating, this can lead to built-up edge, rapid tool wear, unstable hole quality, and poor machining efficiency.

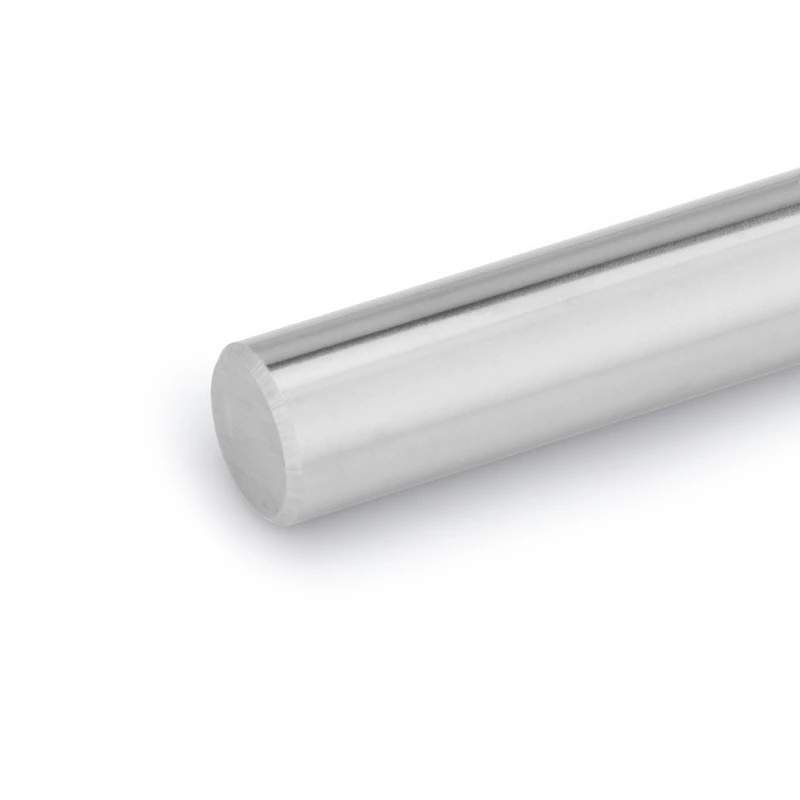

This 5xD carbide drill is manufactured from imported MG grade 0.8 μm submicron tungsten carbide rods with 10% cobalt content. Combined with HSR118 heat-resistant coating, optimized point geometry, reinforced flute structure, and controlled edge preparation, it helps improve cutting stability, reduce chip adhesion, and support reliable medium-depth drilling in titanium alloy components.
| Item | Description | Item | Description |
|---|---|---|---|
| Product Name | 5xD Carbide Drill for Titanium Alloy | Drill Type | Solid Carbide Drill |
| Hole Depth | 5xD | Application | Medium-depth titanium alloy drilling |
| Workpiece Material | Titanium alloy, Ti-6Al-4V, TC4, Grade 5 titanium, high-temperature alloys | Carbide Material | Imported MG Grade 0.8 μm Tungsten Carbide |
| Cobalt Content | 10% | Helix Angle | 30° |
| Point Angle | 138.9° | Rake Angle | 16° |
| Negative Chamfer | -6° | Core Design | 30–40% Variable Core Diameter |
| Back Taper | 0.8° | Coating | HSR118 Heat-Resistant Coating |
| Coating Hardness | 2000–4000 HV | Friction Coefficient | 0.05–0.15 |
| Coolant Type | Internal Coolant / External Coolant Available | Tool Life | Up to 80–100 Meters Under Suitable Machining Conditions |
| Service | Regrinding and Customization Available |
| Drill Diameter (mm) | Flute Length (mm) | Shank Diameter (mm) | Overall Length (mm) | Hole Depth | Coolant Type | Availability |
|---|---|---|---|---|---|---|
| D3.00-D3.90 | 28 | 6 | 66 | 5xD | Internal / External | Standard |
| D4.00-D4.70 | 36 | 6 | 74 | 5xD | Internal / External | Standard |
| D4.80-D6.00 | 44 | 6 | 82 | 5xD | Internal / External | Standard |
| D6.10-D8.00 | 53 | 8 | 91 | 5xD | Internal / External | Standard |
| D8.10-D10.0 | 61 | 10 | 103 | 5xD | Internal / External | Standard |
| D10.1-D12.0 | 71 | 12 | 118 | 5xD | Internal / External | Standard |
| D12.1-D14.0 | 77 | 14 | 124 | 5xD | Internal / External | Standard |
| D14.1-D16.0 | 83 | 16 | 133 | 5xD | Internal / External | Standard |
| D16.1-D18.0 | 93 | 18 | 143 | 5xD | Internal / External | Standard |
| D18.1-D20.0 | 101 | 20 | 153 | 5xD | Internal / External | Standard |
Key Features
Made from imported 0.8 μm submicron carbide with 10% cobalt for toughness and rigidity.
Helps maintain edge stability during medium-depth drilling in titanium alloys and high-temperature materials.
HSR118 coating is designed for titanium alloy machining where heat and adhesion are major challenges.
It helps improve heat resistance, reduce chip adhesion, and slow down tool wear during drilling.
30° helix and 138.9° point angle support stable penetration and accurate hole positioning.
Split-point design helps reduce drill walking and improves entry stability in tough titanium materials.
16° rake angle and variable core design improve rigidity and chip evacuation in 5xD drilling.
Negative chamfer and back taper help protect the edge, control chips, and maintain stable hole quality.
This 5xD carbide drill for titanium alloy is suitable for medium-depth hole machining in CNC machining centers and precision drilling applications. It is especially useful for titanium alloy components where cutting heat, chip adhesion, chip evacuation, hole straightness, and tool wear must be controlled.
Send us your material and hole requirements. Our team will recommend the right drill solution.
Landun CNC Tool is a carbide drill manufacturer focused on precision solid carbide drills and custom carbide drill solutions, supported by advanced grinding, strict inspection, and consistent edge preparation.
Production Facility
Geometry Accuracy Control
Edge Inspection Magnification
Edge Passivation Control
Our carbide drills are ground on German WALTER 5-axis grinding machines for sharp cutting edges, stable accuracy, and smooth drilling performance.
We use WALTER HELICHECK PLUS for contour inspection, keeping profile and radius control within 3 μm for reliable geometric precision.
Each carbide drill is inspected at 300x magnification to check edge quality and avoid chipping or saw-tooth defects before shipment.
Manual drill point honing and automatic rubber-bonded diamond abrasive polishing help improve tool life and control edge consistency within ±0.003 mm.
Common Questions
5xD means the drill is designed for hole depths up to 5 times the drill diameter.
A 5xD carbide drill is designed for deeper holes than a 3xD drill. It requires stronger chip evacuation, better rigidity, and more stable drilling performance over a longer hole depth.
Yes. This drill is suitable for carbon steel, alloy steel, structural steel, pre-hardened steel, bearing steel, and other steel materials under suitable machining conditions.
Internal coolant is recommended when better chip evacuation and heat control are required. External coolant versions are also available depending on machine conditions and application requirements.
Yes. We support customization based on drawings, diameter, hole depth, coolant method, coating requirement, and steel machining conditions.
Yes. Regrinding service is available to help extend tool usage and reduce total tooling cost.
