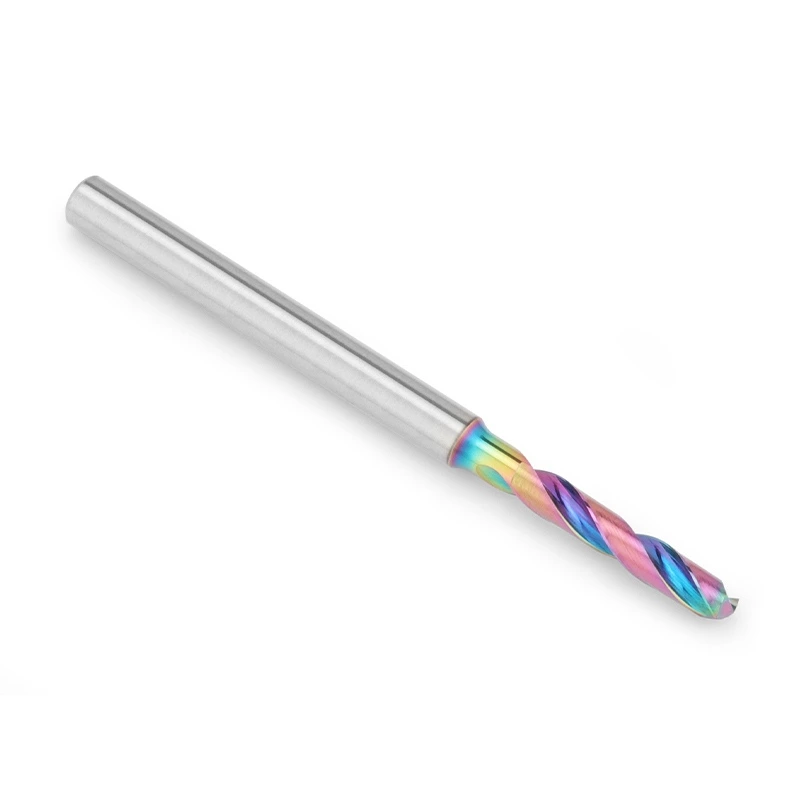

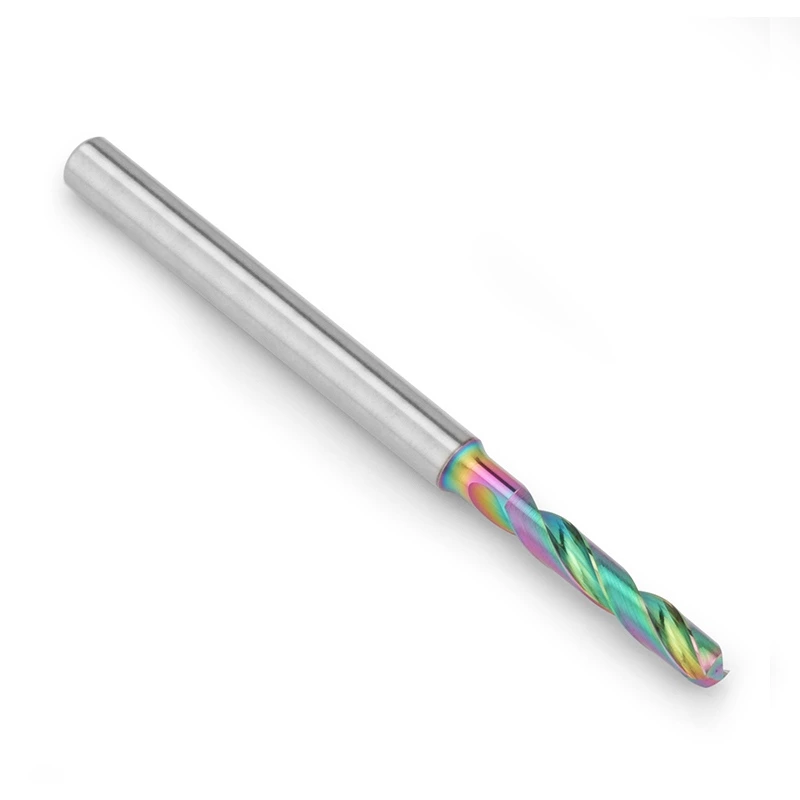

Designed for stable medium-depth drilling in aluminum and non-ferrous materials, this 5xD carbide drill features sharp cutting edges, smooth flute geometry, and reliable chip evacuation performance to reduce chip adhesion, prevent chip clogging, and maintain clean hole quality in deeper aluminum drilling applications.
The 5xD carbide drill for aluminum is developed for medium-depth hole machining in aluminum, aluminum alloys, cast aluminum, and other non-ferrous materials. Compared with 3xD short-hole drilling, 5xD aluminum drilling requires more stable chip evacuation, better flute smoothness, and stronger control of chip adhesion over a longer drilling depth.
Aluminum materials often produce long and sticky chips during drilling. If chip evacuation is not smooth, chips may accumulate inside the flute, scratch the hole wall, increase cutting resistance, or cause built-up edge on the cutting edge. For this reason, a carbide drill for aluminum should use sharp cutting geometry, smooth flute design, and suitable coolant support.

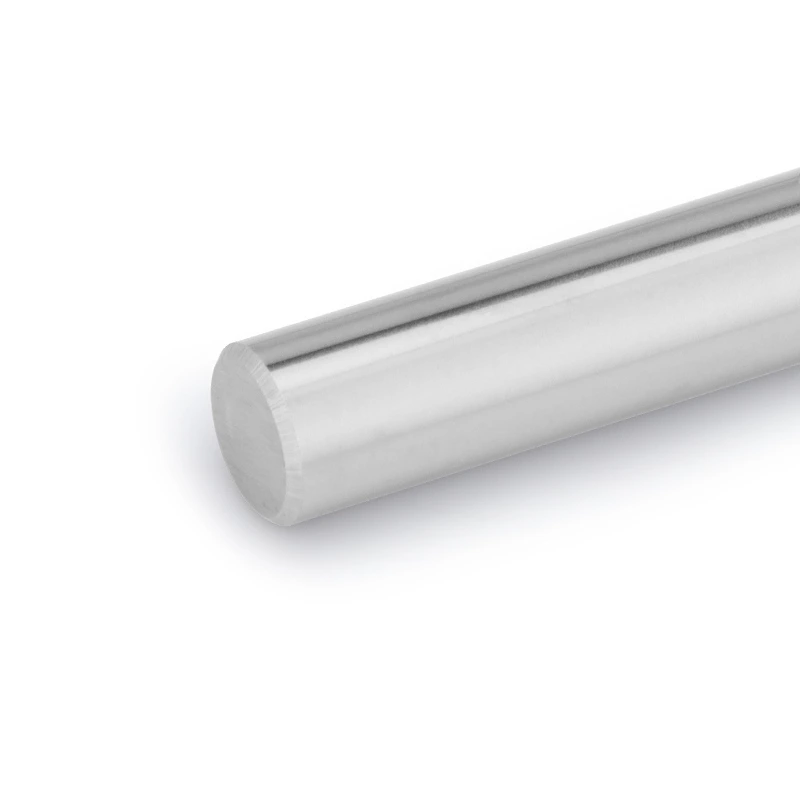

This 5xD carbide drill is manufactured from imported MG grade 0.8 μm submicron tungsten carbide rods with 10% cobalt content. With optimized point geometry, sharp edge preparation, smooth flute structure, and internal or external coolant options, it helps improve hole quality, reduce chip clogging, and support efficient medium-depth aluminum drilling.
| Item | Description | Item | Description |
|---|---|---|---|
| Product Name | 5xD Carbide Drill for Aluminum | Drill Type | Solid Carbide Drill |
| Hole Depth | 5xD | Application | Medium-depth aluminum drilling |
| Workpiece Material | Aluminum, aluminum alloys, cast aluminum, non-ferrous metals | Carbide Material | Imported MG Grade 0.8 μm Tungsten Carbide |
| Cobalt Content | 10% | Helix Angle | 30° |
| Point Angle | 138.9° | Rake Angle | 16° |
| Negative Chamfer | -6° | Core Design | 30–40% Variable Core Diameter |
| Back Taper | 0.8° | Coating | Self-Developed High-Performance Coating |
| Coating Hardness | 2000–4000 HV | Friction Coefficient | 0.05–0.15 |
| Coolant Type | Internal Coolant / External Coolant Available | Tool Life | Up to 80–100 Meters Under Suitable Machining Conditions |
| Service | Regrinding and Customization Available |
| Drill Diameter (mm) | Flute Length (mm) | Shank Diameter (mm) | Overall Length (mm) | Hole Depth | Coolant Type | Availability |
|---|---|---|---|---|---|---|
| D3.00-D3.90 | 28 | 6 | 66 | 5xD | Internal / External | Standard |
| D4.00-D4.70 | 36 | 6 | 74 | 5xD | Internal / External | Standard |
| D4.80-D6.00 | 44 | 6 | 82 | 5xD | Internal / External | Standard |
| D6.10-D8.00 | 53 | 8 | 91 | 5xD | Internal / External | Standard |
| D8.10-D10.0 | 61 | 10 | 103 | 5xD | Internal / External | Standard |
| D10.1-D12.0 | 71 | 12 | 118 | 5xD | Internal / External | Standard |
| D12.1-D14.0 | 77 | 14 | 124 | 5xD | Internal / External | Standard |
| D14.1-D16.0 | 83 | 16 | 133 | 5xD | Internal / External | Standard |
| D16.1-D18.0 | 93 | 18 | 143 | 5xD | Internal / External | Standard |
| D18.1-D20.0 | 101 | 20 | 153 | 5xD | Internal / External | Standard |
Key Features
Made from imported 0.8 μm submicron carbide with 10% cobalt for rigidity and edge stability.
Helps maintain stable drilling performance during medium-depth aluminum hole machining.
Sharp cutting edges reduce cutting resistance and help prevent built-up edge in aluminum drilling.
Polished flute or low-friction surface treatment supports smoother chip flow and cleaner hole walls.
30° helix and 138.9° point angle support stable entry and accurate hole positioning.
Split-point design helps reduce drill walking and improves penetration into aluminum materials.

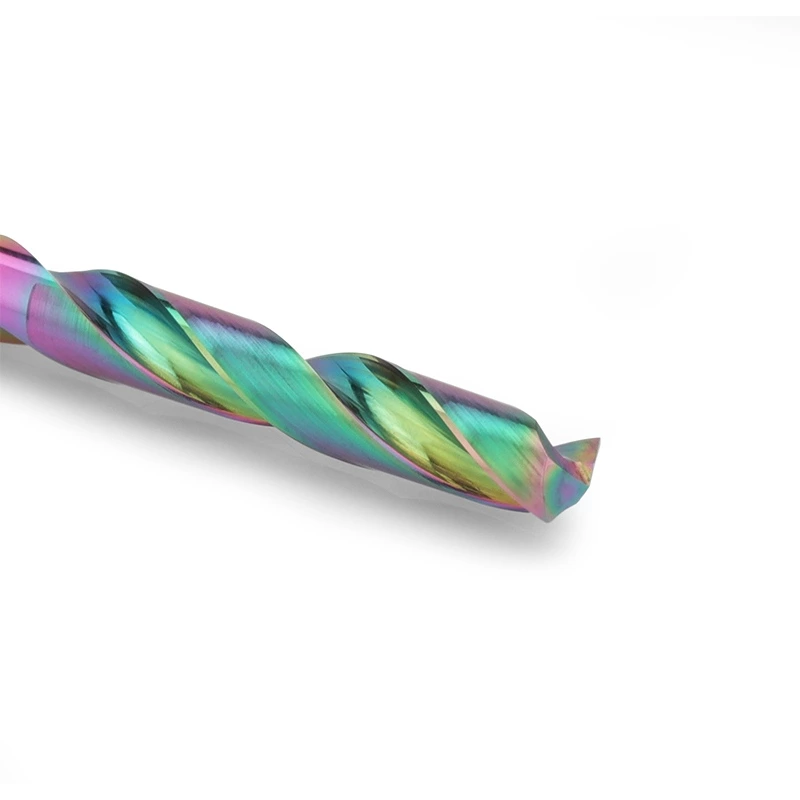

Optimized flute geometry improves chip evacuation during 5xD medium-depth drilling.
Variable core design and back taper help maintain rigidity, reduce chip clogging, and protect hole quality.

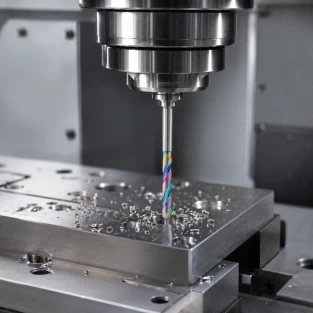

This 5xD carbide drill for aluminum is suitable for medium-depth hole machining in CNC machining centers and production drilling applications. It is especially useful for aluminum components where chip adhesion, long chip evacuation, hole wall quality, and stable batch machining performance are important.
Send us your material and hole requirements. Our team will recommend the right drill solution.
Landun CNC Tool is a carbide drill manufacturer focused on precision solid carbide drills and custom carbide drill solutions, supported by advanced grinding, strict inspection, and consistent edge preparation.
Production Facility
Geometry Accuracy Control
Edge Inspection Magnification
Edge Passivation Control
Our carbide drills are ground on German WALTER 5-axis grinding machines for sharp cutting edges, stable accuracy, and smooth drilling performance.
We use WALTER HELICHECK PLUS for contour inspection, keeping profile and radius control within 3 μm for reliable geometric precision.
Each carbide drill is inspected at 300x magnification to check edge quality and avoid chipping or saw-tooth defects before shipment.
Manual drill point honing and automatic rubber-bonded diamond abrasive polishing help improve tool life and control edge consistency within ±0.003 mm.
Common Questions
5xD means the drill is designed for hole depths up to 5 times the drill diameter.
Yes. This drill is designed for aluminum and non-ferrous material drilling, helping improve chip evacuation, reduce chip adhesion, and maintain clean hole quality.
Aluminum is soft and sticky during machining, which can cause long chips, chip adhesion, built-up edge, and hole wall scratches. A suitable carbide drill needs sharp cutting edges, smooth flute geometry, and proper coolant support.
Internal coolant is recommended when chip evacuation and hole wall quality are critical, especially in medium-depth holes. External coolant versions are also available depending on machine conditions and drilling requirements.
It is suitable for aluminum, aluminum alloys, cast aluminum, 6061 aluminum, 7075 aluminum, 6082 aluminum, and other non-ferrous materials under suitable machining conditions.
Yes. We support customization based on drawings, diameter, hole depth, coolant method, surface treatment, flute design, and aluminum machining requirements.
