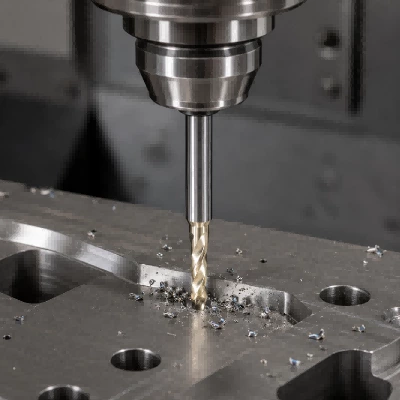

Designed for stable short-hole drilling in titanium alloys and difficult-to-machine materials, this 3xD carbide drill combines imported submicron carbide, heat-resistant coating, optimized point geometry, and controlled edge preparation to improve cutting stability, reduce chip adhesion, and maintain reliable hole quality in high-temperature drilling conditions.
The 3xD carbide drill for titanium alloy is developed for short-hole drilling applications where cutting heat, chip adhesion, and tool wear are major challenges. Titanium alloys have low thermal conductivity and high material toughness, which can cause heat to concentrate around the cutting edge during drilling. This makes tool geometry, coating performance, and edge stability especially important.
Manufactured from imported MG grade 0.8 μm submicron tungsten carbide rods with 10% cobalt content, this drill provides the toughness and rigidity required for high-speed machining of titanium alloys. Its optimized point geometry helps improve entry stability and reduce drill walking, while the flute structure supports smoother chip evacuation and more stable cutting performance.
With self-developed high-performance coating, controlled edge passivation, and internal or external coolant options, this drill is suitable for customers who need reliable hole accuracy, improved chip control, and longer tool life in titanium alloy drilling.
| Item | Description | Item | Description |
|---|---|---|---|
| Product Name | 3xD Carbide Drill for Titanium Alloy | Drill Type | Solid Carbide Drill |
| Hole Depth | 3xD | Application | Titanium alloy short-hole drilling |
| Workpiece Material | Titanium alloy, Ti-6Al-4V, TC4, Grade 5 titanium, high-temperature alloys | Carbide Material | Imported MG Grade 0.8 μm Tungsten Carbide |
| Cobalt Content | 10% | Helix Angle | 30° |
| Point Angle | 138.9° | Rake Angle | 16° |
| Negative Chamfer | -6° | Core Design | 30–40% Variable Core Diameter |
| Back Taper | 0.8° | Coating | Self-Developed High-Performance Coating |
| Coating Hardness | 2000–4000 HV | Friction Coefficient | 0.05–0.15 |
| Coolant Type | Internal Coolant / External Coolant Available | Tool Life | Up to 80–100 Meters Under Suitable Machining Conditions |
| Service | Regrinding and Customization Available |
| Drill Diameter (mm) | Flute Length (mm) | Shank Diameter (mm) | Overall Length (mm) | Hole Depth | Coolant Type | Availability |
|---|---|---|---|---|---|---|
| D3.00-D3.70 | 20 | 4 | 62 | 3xD | Internal / External | Standard |
| D3.80-D4.00 | 24 | 4 | 62 | 3xD | Internal / External | Standard |
| D3.00-D3.70 | 20 | 6 | 62 | 3xD | Internal / External | Standard |
| D3.80-D4.00 | 24 | 6 | 66 | 3xD | Internal / External | Standard |
| D4.80-D6.00 | 28 | 6 | 66 | 3xD | Internal / External | Standard |
| D6.10-D7.00 | 34 | 8 | 79 | 3xD | Internal / External | Standard |
| D7.10-D8.00 | 41 | 8 | 79 | 3xD | Internal / External | Standard |
| D8.10-D10.0 | 47 | 10 | 89 | 3xD | Internal / External | Standard |
| D10.1-D12.0 | 55 | 12 | 102 | 3xD | Internal / External | Standard |
| D12.1-D14.0 | 60 | 14 | 107 | 3xD | Internal / External | Standard |
| D14.1-D16.0 | 65 | 16 | 115 | 3xD | Internal / External | Standard |
| D16.1-D18.0 | 73 | 18 | 123 | 3xD | Internal / External | Standard |
| D18.1-D20.0 | 79 | 20 | 131 | 3xD | Internal / External | Standard |
Key Features
Made from imported 0.8 μm submicron carbide with 10% cobalt for toughness and rigidity.
Helps maintain edge stability when drilling titanium alloys and difficult-to-machine materials.
Self-developed coating with 2000–4000 HV hardness and low friction improves heat resistance.
Controlled passivation strengthens the cutting edge and helps reduce wear and adhesion.
30° helix and 138.9° point angle support stable penetration and accurate hole positioning.
Split-point design reduces drill walking and improves entry stability in tough titanium materials.
16° rake angle and variable core design improve chip flow and cutting stability.
Negative chamfer and back taper help protect the edge and support smoother chip evacuation.
This 3xD carbide drill for titanium alloy is suitable for short-depth hole machining in CNC machining centers and precision drilling applications. It is especially useful for titanium alloy components where cutting heat, chip adhesion, and tool wear must be controlled to maintain stable hole quality.
Send us your material and hole requirements. Our team will recommend the right drill solution.
Landun CNC Tool is a carbide drill manufacturer focused on precision solid carbide drills and custom carbide drill solutions, supported by advanced grinding, strict inspection, and consistent edge preparation.
Production Facility
Geometry Accuracy Control
Edge Inspection Magnification
Edge Passivation Control
Our carbide drills are ground on German WALTER 5-axis grinding machines for sharp cutting edges, stable accuracy, and smooth drilling performance.
We use WALTER HELICHECK PLUS for contour inspection, keeping profile and radius control within 3 μm for reliable geometric precision.
Each carbide drill is inspected at 300x magnification to check edge quality and avoid chipping or saw-tooth defects before shipment.
Manual drill point honing and automatic rubber-bonded diamond abrasive polishing help improve tool life and control edge consistency within ±0.003 mm.
Common Questions
3xD means the drill is designed for hole depths up to 3 times the drill diameter.
Yes. This drill is designed for titanium alloy drilling, helping improve heat resistance, reduce chip adhesion, and maintain stable hole quality under suitable machining conditions.
It is suitable for titanium alloy, Ti-6Al-4V, TC4, Grade 5 titanium, Grade 2 titanium, and other difficult-to-machine alloy materials under suitable drilling conditions.
Titanium alloys have low thermal conductivity, high toughness, and strong chip adhesion tendency. A suitable carbide drill requires heat-resistant coating, stable edge strength, and optimized chip evacuation to maintain drilling performance.
Internal coolant is recommended when better heat control and chip evacuation are required. External coolant versions are also available depending on machine conditions and hole requirements.
Yes. We support customization based on drawings, titanium grade, hole depth, coolant method, coating requirement, and drilling application.
