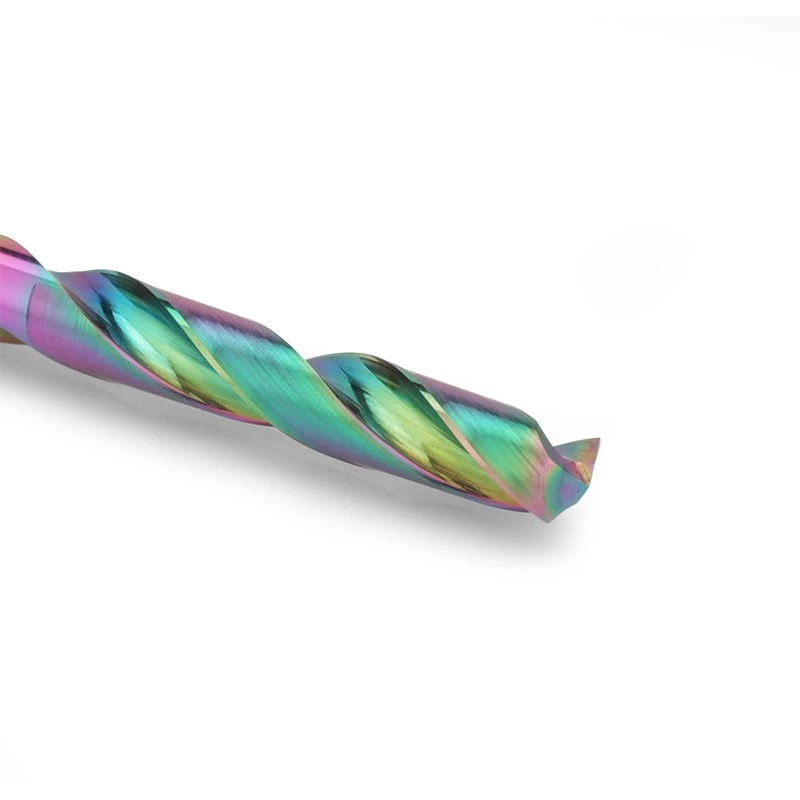

Designed for stable and efficient short-hole drilling in aluminum and non-ferrous materials, this 3xD carbide drill features sharp cutting edges, optimized flute geometry, and smooth chip evacuation performance to reduce chip adhesion, improve hole quality, and support high-speed aluminum machining.
The 3xD carbide drill for aluminum is designed for short-depth hole machining in aluminum and non-ferrous materials. Aluminum drilling often requires sharp cutting edges, smooth chip flow, and stable cutting performance to reduce chip adhesion, built-up edge, and surface scratching.
With optimized point geometry, flute structure, coating or surface treatment options, and controlled edge preparation, this drill helps deliver clean hole walls, stable hole accuracy, and efficient chip evacuation in high-speed aluminum machining applications.
| Item | Description | Item | Description |
|---|---|---|---|
| Product Name | 3xD Carbide Drill for Aluminum | Drill Type | Solid Carbide Drill |
| Hole Depth | 3xD | Application |
|
| Workpiece Material | Carbon steel,alloy steel, structural steel, pre-hardened steel | Carbide Material | Imported MG Grade 0.8 μm Tungsten Carbide |
| Cobalt Content | 10% | Helix Angle | 30° |
| Point Angle | 138.9° | Rake Angle | 16° |
| Negative Chamfer | -6° | Core Design | 30–40% Variable Core Diameter |
| Back Taper | 0.8° | Coating | Self-developed high-performance coating or aluminum-matched surface treatment available |
| Coating Hardness | 2000–4000 HV, depending on coating configuration | Friction Coefficient | 0.05–0.15, depending on coating configuration |
| Coolant Type | Internal Coolant / External Coolant Available | Tool Life | Up to 80–100 Meters Under Suitable Machining Conditions |
| Service | Regrinding and Customization Available |
| Drill Diameter (mm) | Flute Length (mm) | Shank Diameter (mm) | Overall Length (mm) | Hole Depth | Coolant Type | Availability |
|---|---|---|---|---|---|---|
| D3.00-D3.70 | 20 | 4 | 62 | 3xD | Internal / External | Standard |
| D3.80-D4.00 | 24 | 4 | 62 | 3xD | Internal / External | Standard |
| D3.00-D3.70 | 20 | 6 | 62 | 3xD | Internal / External | Standard |
| D3.80-D4.00 | 24 | 6 | 66 | 3xD | Internal / External | Standard |
| D4.80-D6.00 | 28 | 6 | 66 | 3xD | Internal / External | Standard |
| D6.10-D7.00 | 34 | 8 | 79 | 3xD | Internal / External | Standard |
| D7.10-D8.00 | 41 | 8 | 79 | 3xD | Internal / External | Standard |
| D8.10-D10.0 | 47 | 10 | 89 | 3xD | Internal / External | Standard |
| D10.1-D12.0 | 55 | 12 | 102 | 3xD | Internal / External | Standard |
| D12.1-D14.0 | 60 | 14 | 107 | 3xD | Internal / External | Standard |
| D14.1-D16.0 | 65 | 16 | 115 | 3xD | Internal / External | Standard |
| D16.1-D18.0 | 73 | 18 | 123 | 3xD | Internal / External | Standard |
| D18.1-D20.0 | 79 | 20 | 131 | 3xD | Internal / External | Standard |
Key Features
Made from imported 0.8 μm submicron carbide with 10% cobalt for strength and edge stability.
Ensures reliable cutting performance and tool rigidity in high-speed aluminum machining.
Low-friction coating or surface treatment helps reduce chip adhesion and built-up edge.
Controlled passivation ensures consistent cutting edges and improves tool life during drilling.
30° helix and 138.9° point angle support stable penetration and accurate hole positioning.
Split-point design helps reduce drill walking and enables smooth entry into aluminum materials.
16° rake angle and optimized flute structure improve chip flow and cutting smoothness.
Variable core design and back taper help enhance rigidity, chip evacuation, and hole quality.
This 3xD carbide drill for aluminum is designed for short-depth hole machining in CNC machining centers, providing smooth cutting, stable chip evacuation, and reliable hole quality for aluminum and non-ferrous component production
Send us your material and hole requirements. Our team will recommend the right drill solution.
Landun CNC Tool is a carbide drill manufacturer focused on precision solid carbide drills and custom carbide drill solutions, supported by advanced grinding, strict inspection, and consistent edge preparation.
Production Facility
Geometry Accuracy Control
Edge Inspection Magnification
Edge Passivation Control
Our carbide drills are ground on German WALTER 5-axis grinding machines for sharp cutting edges, stable accuracy, and smooth drilling performance.
We use WALTER HELICHECK PLUS for contour inspection, keeping profile and radius control within 3 μm for reliable geometric precision.
Each carbide drill is inspected at 300x magnification to check edge quality and avoid chipping or saw-tooth defects before shipment.
Manual drill point honing and automatic rubber-bonded diamond abrasive polishing help improve tool life and control edge consistency within ±0.003 mm.
Common Questions
3xD means the drill is designed for hole depths up to 3 times the drill diameter.
Yes. This drill is designed for aluminum and non-ferrous material drilling, offering sharp cutting performance, smooth chip evacuation, and stable hole quality.
It is suitable for aluminum, aluminum alloys, cast aluminum, wrought aluminum alloys, and other non-ferrous materials under suitable machining conditions.
Yes. The sharp cutting edge, optimized flute geometry, and low-friction coating or surface treatment help reduce chip adhesion and built-up edge.
Yes. Both internal coolant and external coolant versions are available according to machining requirements.
Yes. We support customization based on drawings, workpiece material, hole depth, and drilling application.
