Product Overview

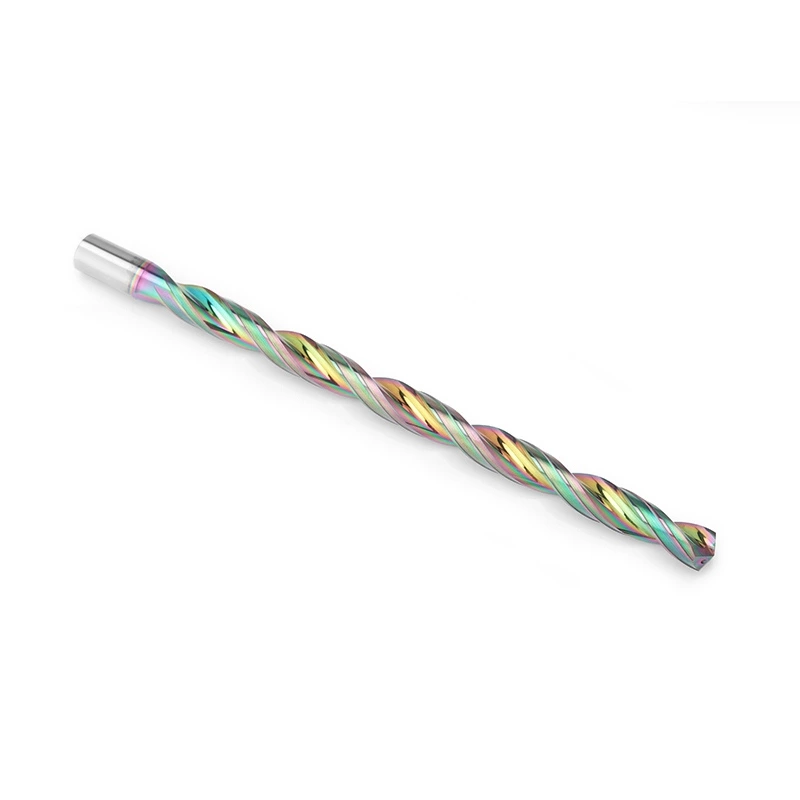

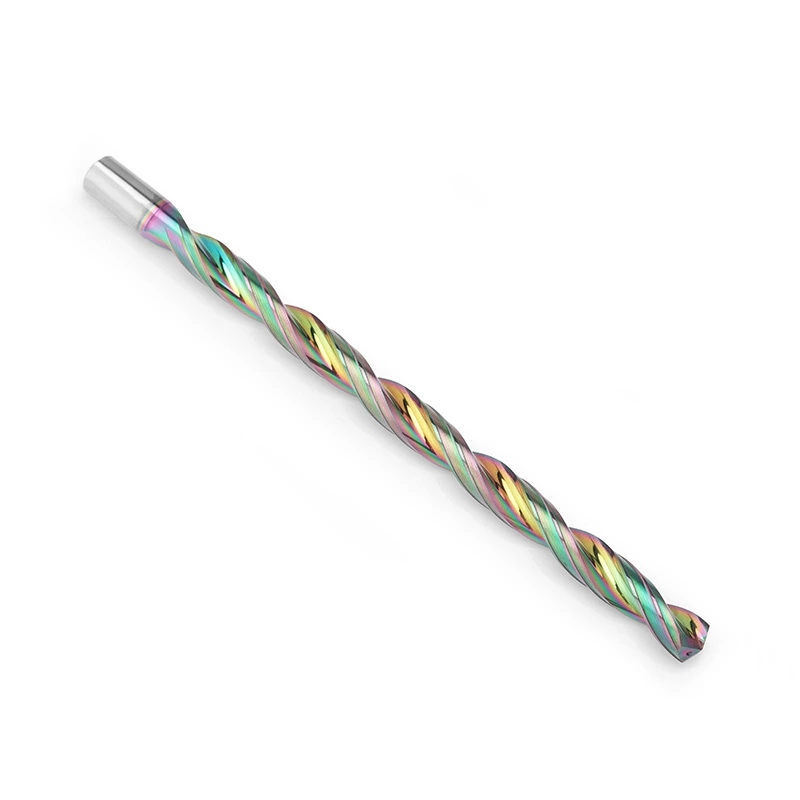

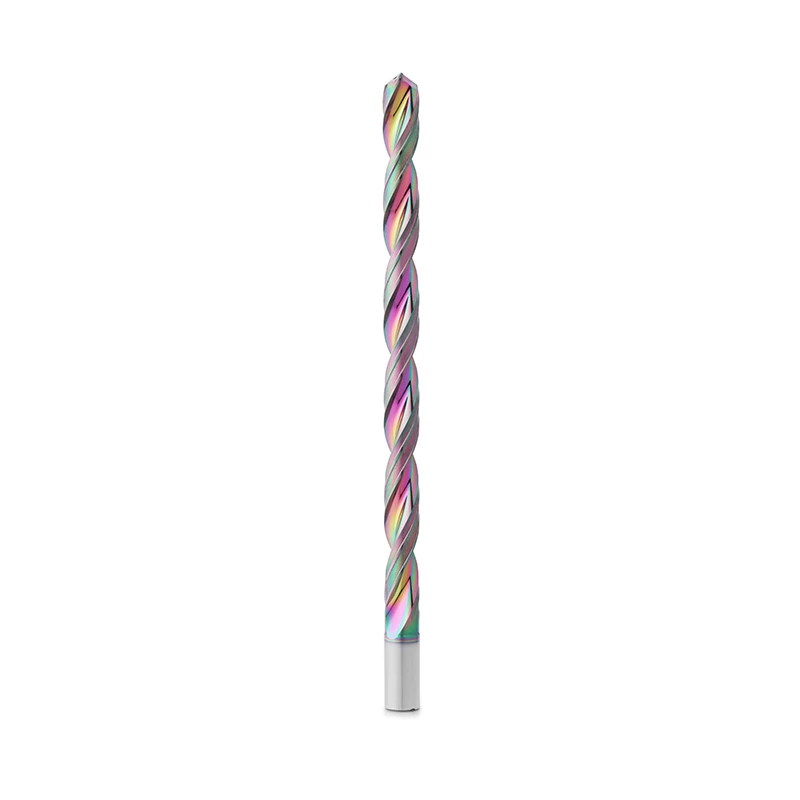

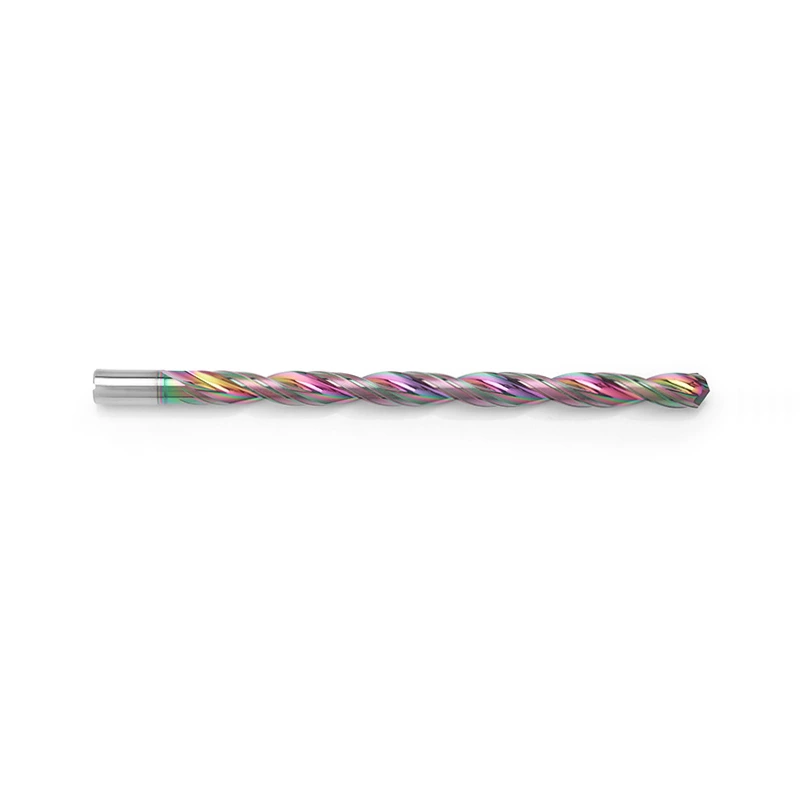

30xD Solid Carbide Drill —Engineered for Demanding Extra-Deep Aluminum Hole Machining

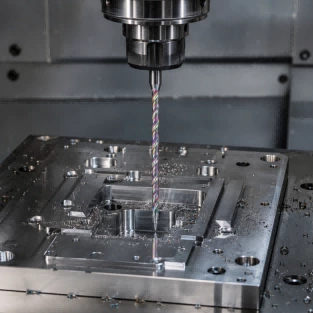

The 30xD carbide drill for aluminum is designed for highly demanding extra-deep-hole applications where long-chip evacuation, low cutting resistance, pilot guidance, hole straightness, coolant delivery, flute rigidity, and process stability are critical.
Compared with 15xD or 20xD drilling, a 30xD aluminum application has a significantly longer unsupported drill body and chip evacuation path. It places much higher demands on pilot hole accuracy, spindle runout, tool holder condition, machine rigidity, coolant pressure and flow, flute surface quality, and cutting parameter control.
Aluminum and aluminum alloys are relatively soft but highly adhesive during drilling. Long aluminum chips may stick to the cutting edge, accumulate inside the flute, form built-up edge, or scratch the machined hole wall.
In a 30xD hole, chips must travel through an extremely long flute path before leaving the cutting zone. Insufficient coolant delivery or unstable chip evacuation may cause chip packing, increased cutting torque, diameter variation, hole deviation, poor surface finish, or premature drill breakage.
This carbide drill is manufactured from imported MG grade 0.8 μm tungsten carbide rods with 10% cobalt content, supporting drill rigidity and cutting edge stability. Uncoated options provide sharp cutting performance and low cutting resistance, while DLC-coated options provide a low-friction surface that helps reduce aluminum adhesion, chip sticking, and built-up edge throughout the extended drilling cycle.
- Extra-Deep Aluminum Drilling
- Uncoated / DLC Options
- Precision Pilot-Hole Guidance
- Regrinding & Customization
